Maintenance
5556−2/A1
Winterthur Gas & Diesel Ltd.
3/ 4
4. Removal with Tool
94595B
1) Connect the hydraulic ram (94595,
Fig. 4 to the HP oil pump (94931).
2) Close the relief valve (5).
3) Make sure that the vent screw (10) is
open.
4) Operate the HP oil pump until oil that
has no air flows from the vent
screw (10).
5) Close the vent screw (10).
Note: During the step below, make sure
that you keep a clearance of
between 10 mm and 15 mm
between the nuts (3, Fig. 3 II−II
)
and the bottom housing (4).
6) Slowly operate the HP oil pump until:
D The compression spring (4, Fig. 4)
pushes the plunger (2) out of the
cylinder (7), or
D The indicator (6) is flush with the
housing. (This shows that the
piston is at the end of its stroke.)
7) Open the relief valve (5) to release the
pressure in the HP oil line.
8) Disconnect the HP oil pump from the
hydraulic ram (94595).
9) Remove the screws (9).
10) Remove the hydraulic ram (94595).
11) Remove the plunger 3.
12) Move the piston (8) to the initial
position, see paragraph 2.
13) Continue to disassemble the fuel pump
(see 5556−1).
14) If you cannot remove the plunger (2),
do the procedure given in paragraph 5.
Fuel Pump: Removal of a Seized Pump Plunger
2015
94595
94595B
94935
94932
5 94931
017.890/08
10
WCH02281
8
9
3
4
2
I
I
6
FLUSH
1
7

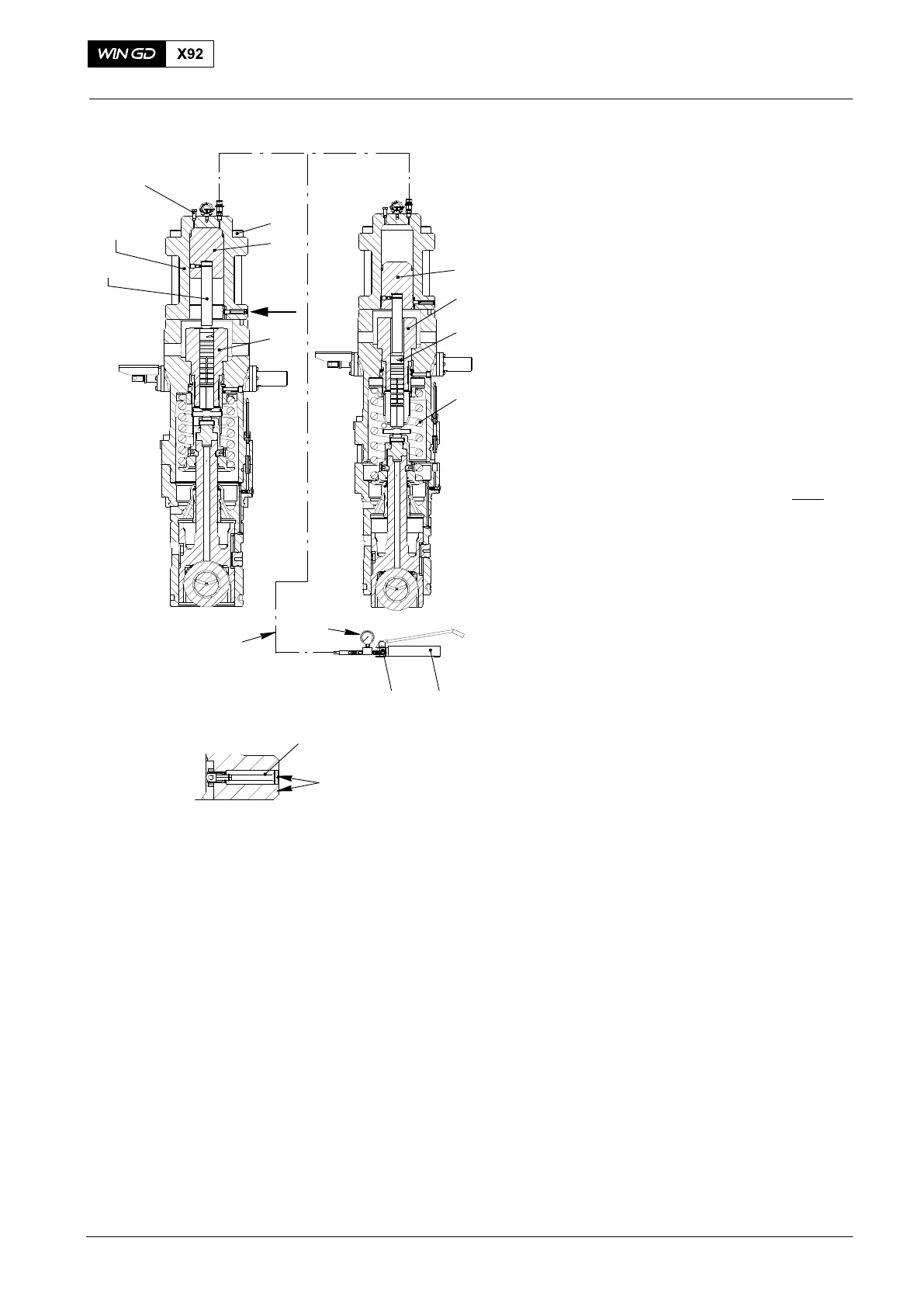

Fig. 4
