5. Installation (SAC at Free End)
1) To install the SAC at the free end, refer to paragraph 4.
6. Completion
1) Install the drain pipes (3, 4, Fig.10).
2) Install the vent pipe (1)
3) Install the outlet pipe (6).
4) Install the inlet pipe (2).
5) Open the butterfly valves (7).
6) Release the air in the SAC (5).
7) Start the cooling water pump.
8) Make sure that there are no leaks.
9) Make sure that no scavenge air flows
between the SAC (5) and the SAC
housing.
10) Stop the cooling water pump.
2015
Scavenge Air Cooler: Removal and Installation
WCH02969

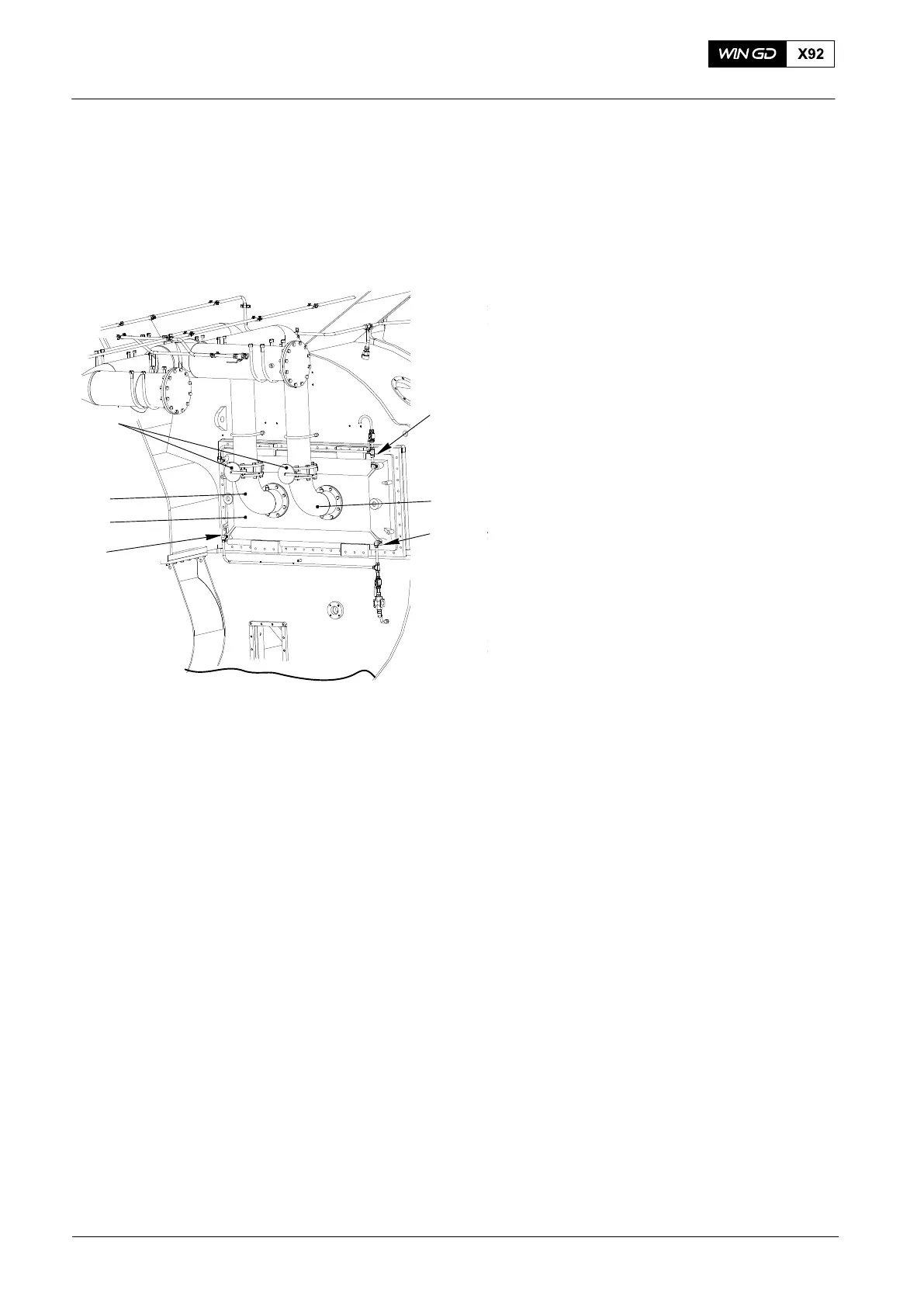

Fig. 10
2
1
3
5
4
6
7
