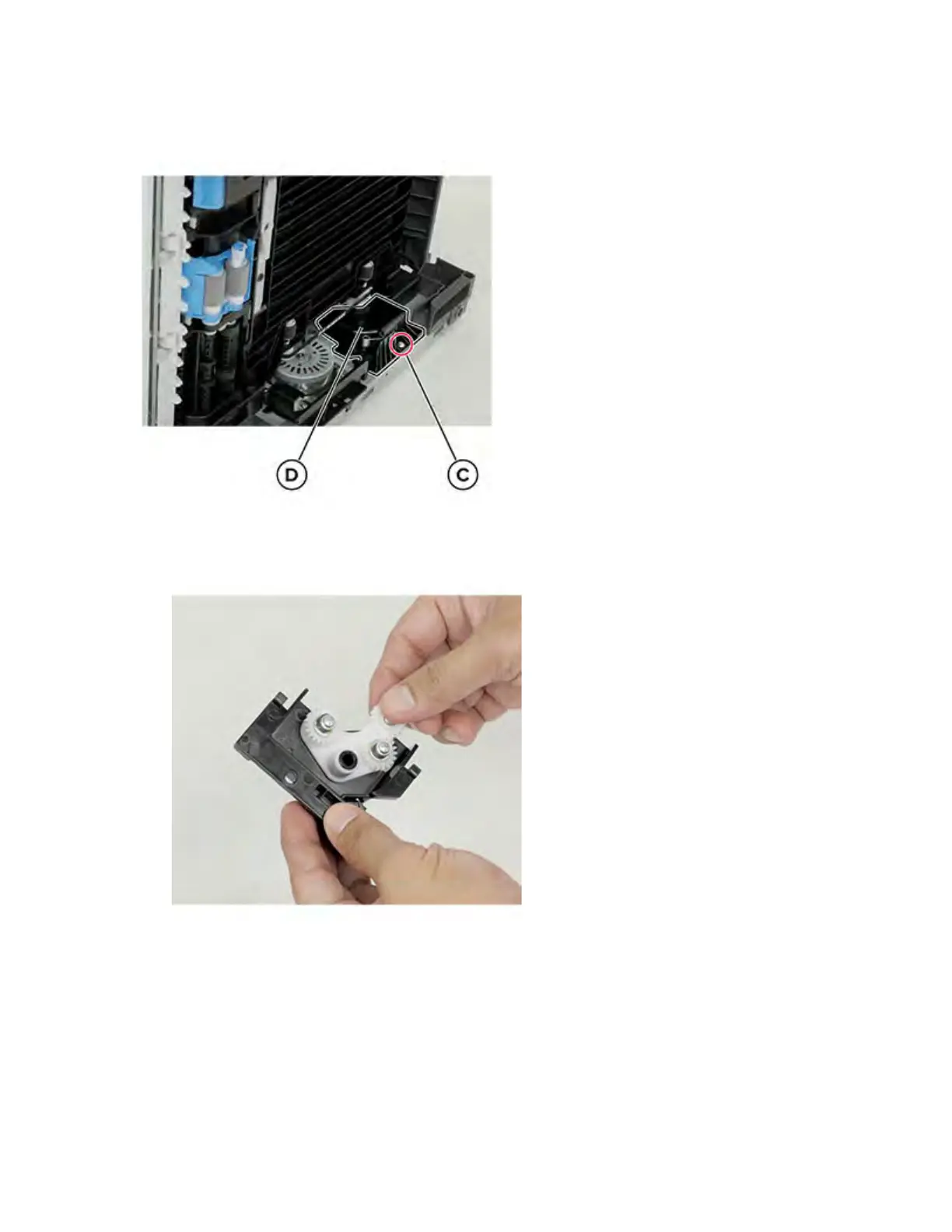

6. Place the printer on its left side, remove the screw (C), and then remove the duplex swing arm
assembly (D).
Installation notes:
a. Make sure that the gears assembly is properly installed in the housing.
