Xerox Phaser 7760 Service Manual

January 2010
xiv
Phaser 7760 Color Laser Printer
Phaser 7760 Printer Configurations, Parts of the
Revised
Introduction
Phaser 7760 Printer Configurations Parts of the Printer

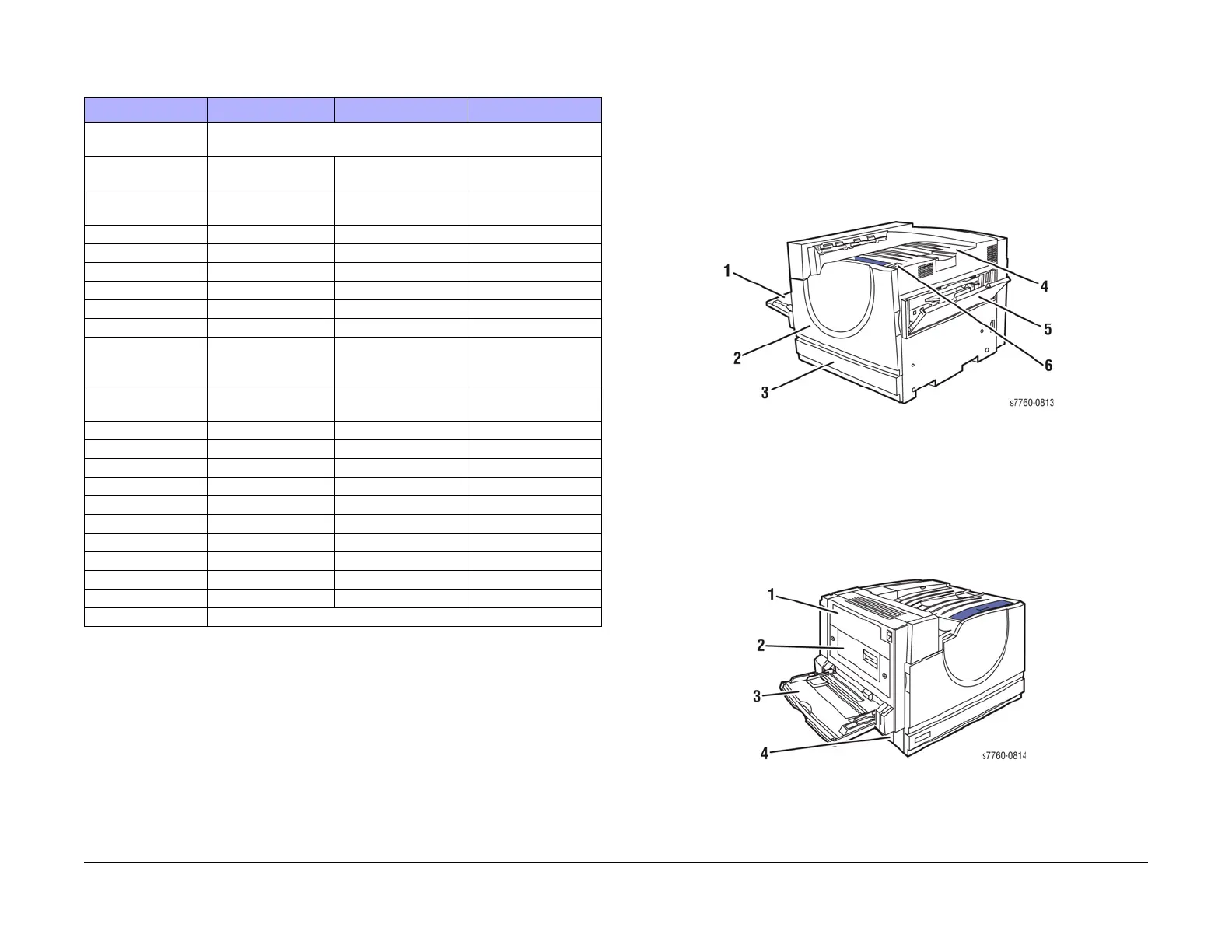

Front-Right View
1. Tray 1 (multi-purpose tray)
2. Front door
3. Tray 2
4. Top Output Tray
5. Right Door
6. Power Switch
Figure 1 Front-Right View
Front-Left View
1. Door A
2. Door D
3. Tray 1 (MPT)
4. Door B
Figure 2 Front-Left View
Table 1 Printer Configurations
Features DN GX DX
Processor and Clock
Rate
G4 Class PowerPC @800Mhz
1 MB L2 Cache
Max Print Speed 35 ppm color
45 ppm monochrome
35 ppm color
45 ppm monochrome
35 ppm color
45 ppm monochrome
Memory Configura-
tion (MB)
1 x 512 1 x 512 1 x 512
Max Memory 1GB DDR2 in 2 slots 1GB DDR2 in 2 slots 1GB DDR2 in 2 slots
Resolutions (dpi) 1200 x 1200 1200 x 1200 1200 x 1200
Post Script Fonts 137 137 137
PCL5c Fonts 81 81 81
Top Output Tray Standard Standard Standard
500-Sheet Feeder N/A Standard Standard
1500-Sheet Hi-
Capacity Feeder
(Lower Tray Deck)
Optional Standard N/A
2500-Sheet High-
Capacity Feeder
Optional N/A Standard
Hard Drive Standard 40GB Standard 40GB Standard 40GB
Banner Size Printing Standard Standard Standard
Photo Mode Standard Standard Standard
Auto-Duplexer Standard Standard Standard
Ethernet Interface 10/100/1000 Base-TX 10/100/1000 Base-TX 10/100/1000 Base-TX
USB 2.0 Standard Standard Standard
Advanced Finisher N/A Optional Optional
Professional Finisher N/A Optional Optional
Phaser Match Optional Standard Standard
PhaserCal Standard Standard Standard
Warranty One-year On-site Warranty, Xerox Total Satisfaction Guarantee
