Xerox Phaser 7760 Service Manual

January 2010
4-11
Phaser 7760 Color Laser Printer
REP 1.18
Repairs and Adjustments
Revised
REP 1.18 Interlock Relay (LD Power Relay)
Parts List on PL 9.1
Removal
1. Remove the Rear Cover (REP 14.2).
2. Remove the Interface PWB (Engine Control Interface Board) (REP 1.8).
3. Removing the Interlock Relay (Figure 1).
a. Disconnect the wiring harness.
b. Remove 1 screw and remove the Interlock Relay.

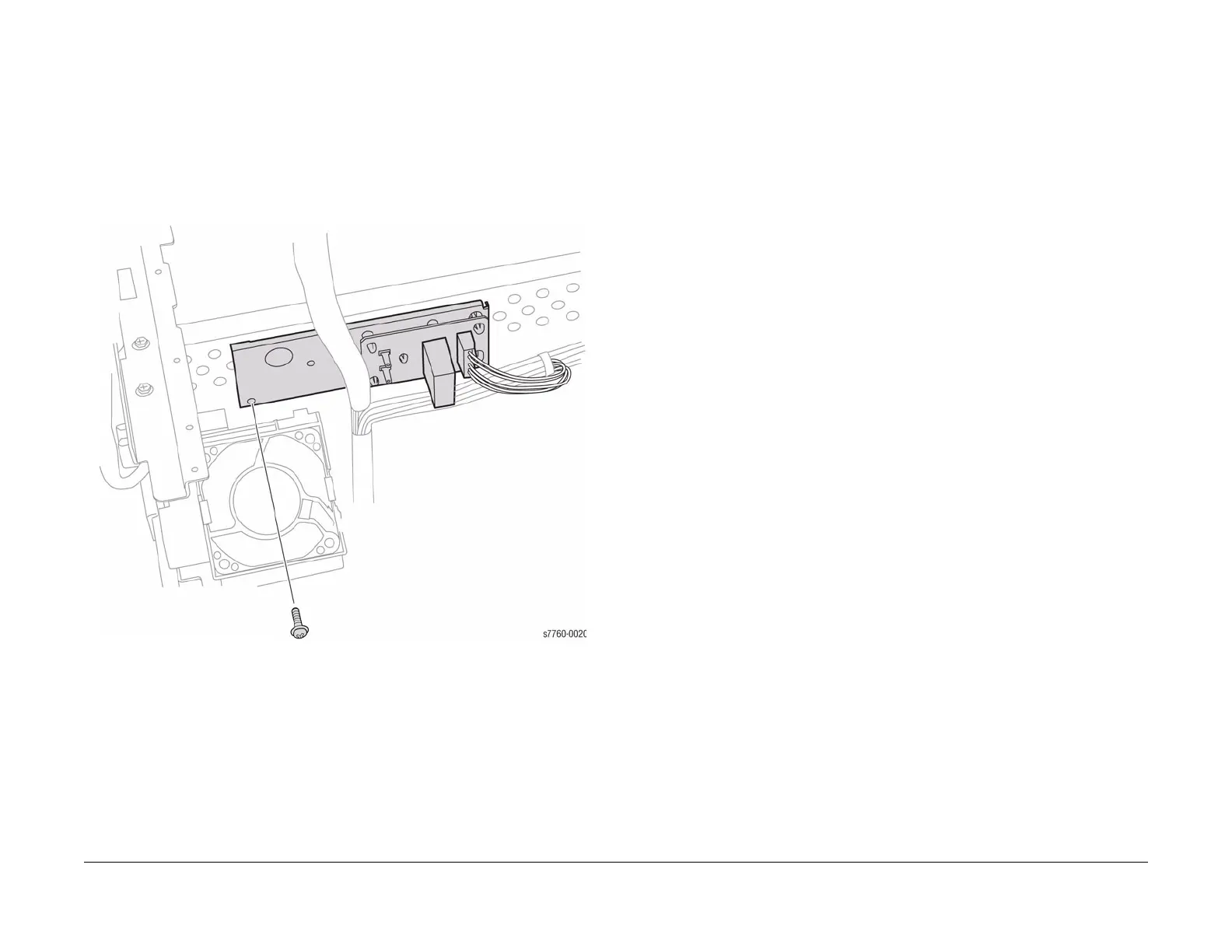

Figure 1 Removing Interlock Relay
