Xerox Phaser 7760 Service Manual

January 2010
4-85
Phaser 7760 Color Laser Printer
REP 12.65, REP 12.66
Repairs and Adjustments
Revised
b. Hold the bottom of the Buffer Chute Assembly and move the Boss out of the hole
from the rear Frame (Figure 3).

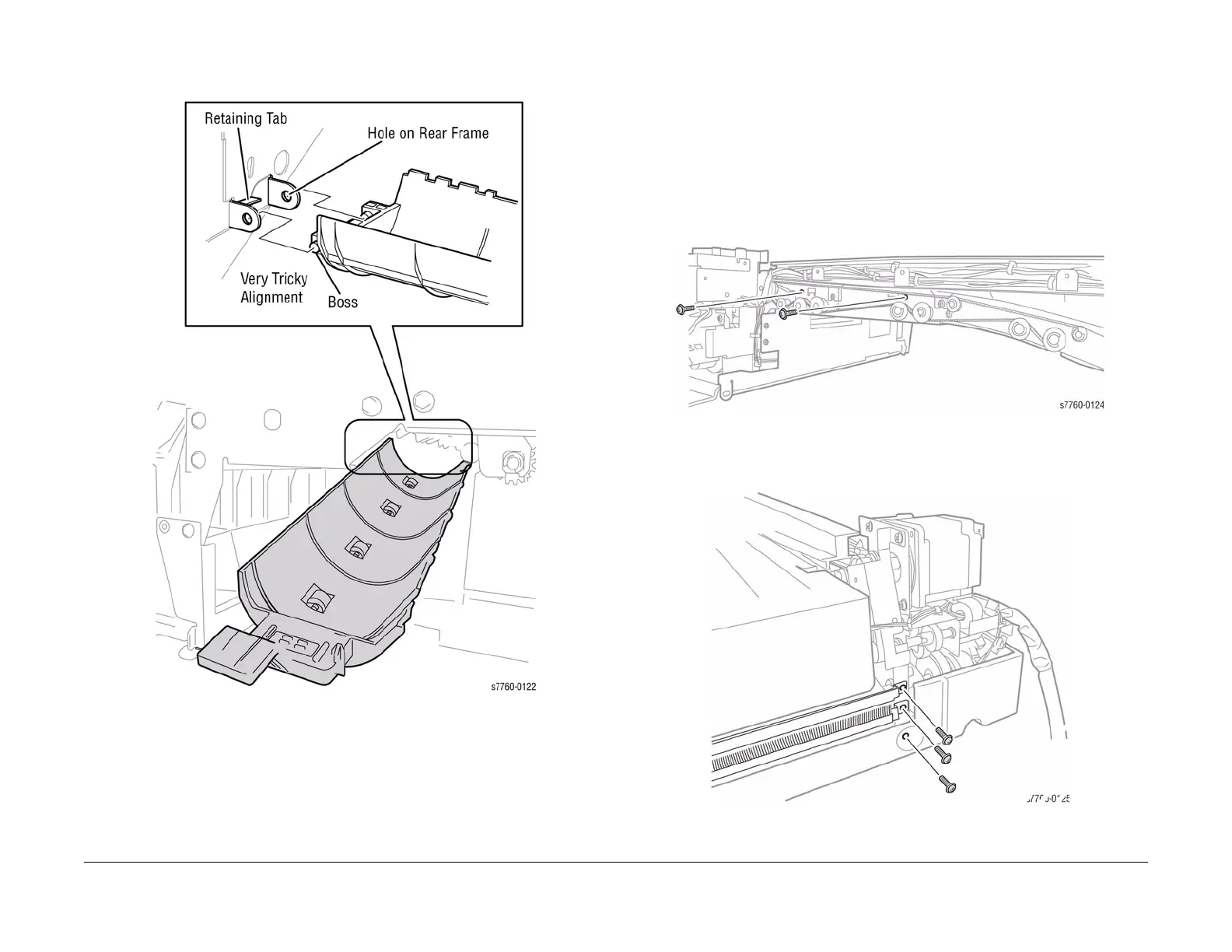

Figure 3 Removing Bottom Buffer Chute Assembly
Replacement
NOTE: Ensure to align the Boss in the hole in the rear Frame (Figure 3).
REP 12.66 Finisher H-Transport Drive Belt
Parts List on PL 21.27
Removal
1. Move the Finisher away and unplug the connector to the Horizontal Transport.
2. Remove the Horizontal Transport Assembly (REP 12.51).
3. Remove the Horizontal Transport Rear Cover (remove 3 screws and loosen 1 screw).
4. Remove the Upper Decurler Cover (PL 21.24).
5. Removing the Horizontal Transport Center Tray (Figure 1).
a. Remove the 2 screws and the Horizontal Transport Center Tray (Figure 1).
Figure 1 Removing the Horizontal Transport Center Tray
b. Remove the 3 screws and 1 Washer securing the Decurler Cover (Figure 2).
Figure 2 Removing 3 Screws and 1 Washer
