Xerox Phaser 7760 Service Manual

January 2010
4-29
Phaser 7760 Color Laser Printer
REP 7.17, REP 7.18
Repairs and Adjustments
Revised
REP 7.17 Tray 4 Feeder (3TM)
Parts List on PL 16.6
Removal
1. Pull out Tray 4.
2. Open the Left Cover (PL 15.10).
3. Removing the Tray 4 Feeder (Figure 1).
a. Remove the 2 screws holding the Left Cover Supports.
b. Release the wiring harness from the Clamp and disconnect the P/J.
c. Remove the 2 screws and Tray 4 Feeder.

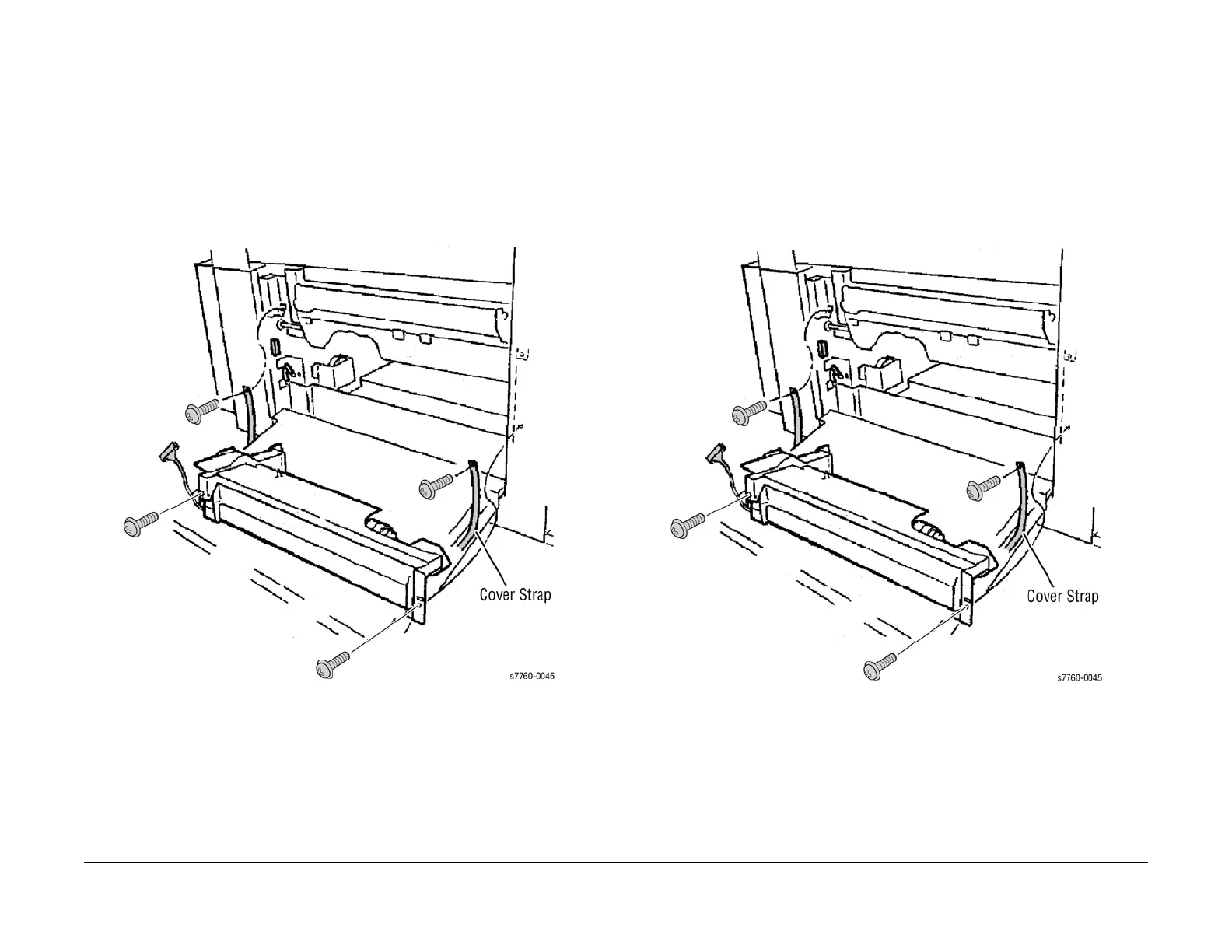

Figure 1 Removing Tray 4 Feeder
REP 7.18 Tray 5 Feeder (3TM)
Parts List on PL 16.6
Removal
1. Pull out Tray 5.
2. Remove the Left Lower Cover (REP 14.12).
3. Removing Tray 5 Feeder (Figure 1).
a. Remove the 2 screws holding the Left Cover Supports.
b. Release the wiring harness from the Clamp and disconnect the P/J.
c. Remove the 2 screws and Tray 5 Feeder.
Figure 1 Removing Tray 5 Feeder
