Xerox Phaser 7760 Service Manual

January 2010
4-82
Phaser 7760 Color Laser Printer
REP 12.64
Revised
Repairs and Adjustments
REP 12.64 Finisher Buffer Roll
Parts List on PL 21.10
Removal
1. Remove the Rear Upper Cover (REP 12.41).
2. Removing the Transport Gate Solenoid Bracket (Figure 1).
a. Remove the outer Bracket with cables.
b. Remove the 2 screws and remove the Bracket.

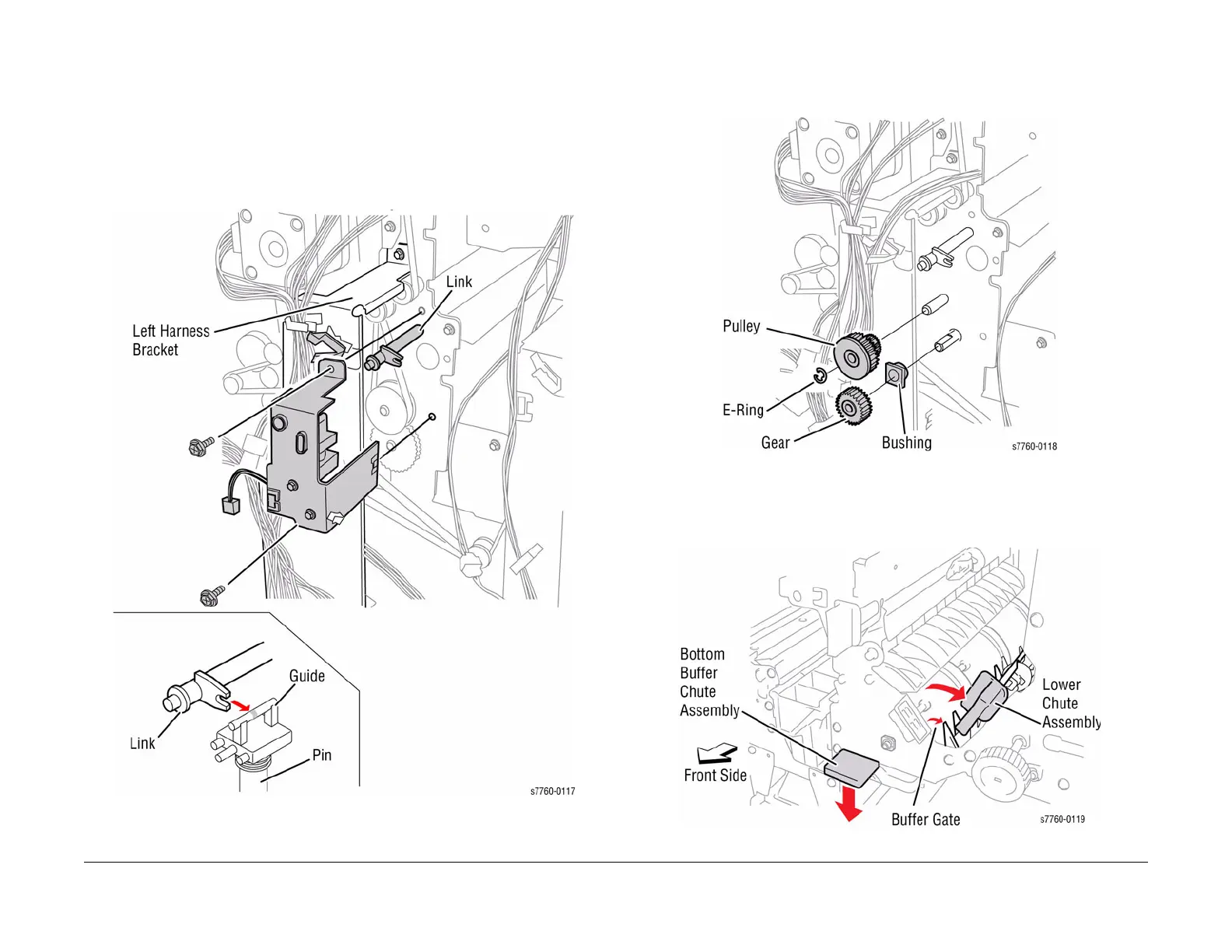

Figure 1 Removing Transport Gate Solenoid Bracket
3. Removing the Pulley and Gear (Figure 2).
a. Release tab on the Gear. Pull the Buffer Roll to the front of the Finisher.
b. Remove the Pulley and Gear.
Figure 2 Removing Pulley and Gear
4. Removing the Buffer Roll.
a. Open the Lower Exit Chute. Lower the bottom Buffer Chute Assembly (Figure 3).
Figure 3 Removing Buffer Roll
