Xerox Phaser 7760 Service Manual

January 2010
4-117
Phaser 7760 Color Laser Printer
ADJ 12.8
Repairs and Adjustments
Revised
ADJ 12.8 Finisher Booklet Wrinkle
Parts List on PL 21.15
Purpose
To prevent the Booklet Cover from getting wrinkled.
Check
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
• Verify the customer is not running jobs that are out of specification.
• Check the Fold Rollers for wear or contamination.
Adjustment
1. Remove the Booklet Maker Unit (REP 12.55).
2. Remove the KL-clip (Figure 1).

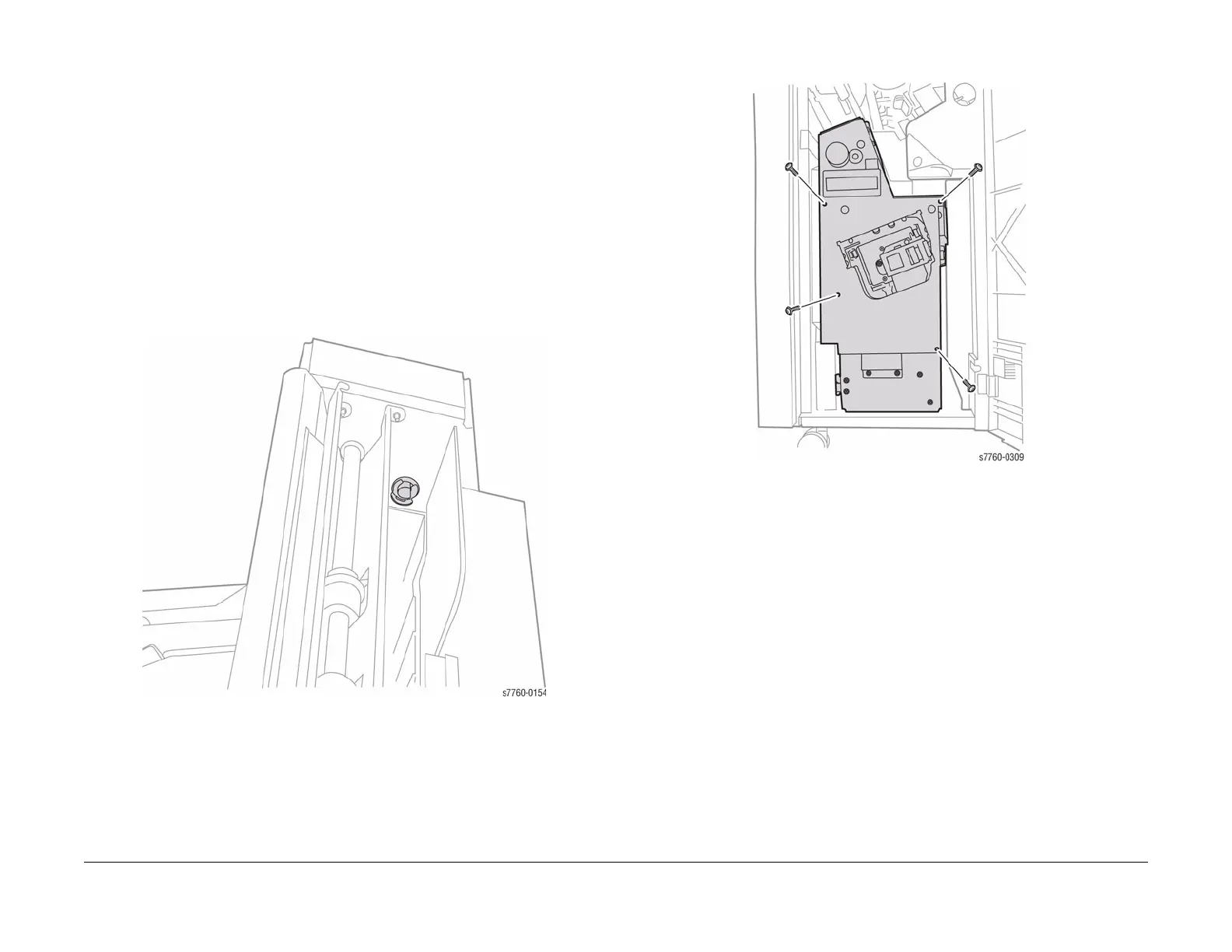

Figure 1 Removing KL-Clip
3. Remove 4 screws and the Booklet Maker Front Cover (Figure 2).
Figure 2 Removing the Booklet Maker Front Cover
