Xerox Phaser 7760 Service Manual

January 2010
4-38
Phaser 7760 Color Laser Printer
REP 9.3, REP 9.5
Revised
Repairs and Adjustments
REP 9.3 Waste Toner Cartridge Cover
Parts List on PL 4.1
Removal
1. Open the Front Door.
2. Removing the Waste Toner Cartridge Cover (Figure 1).
a. Open the Waste Toner Cartridge Cover.
b. Remove 1 screw securing the Waste Toner Cartridge Pivot Hinge and remove the
Hinge and the Cover.

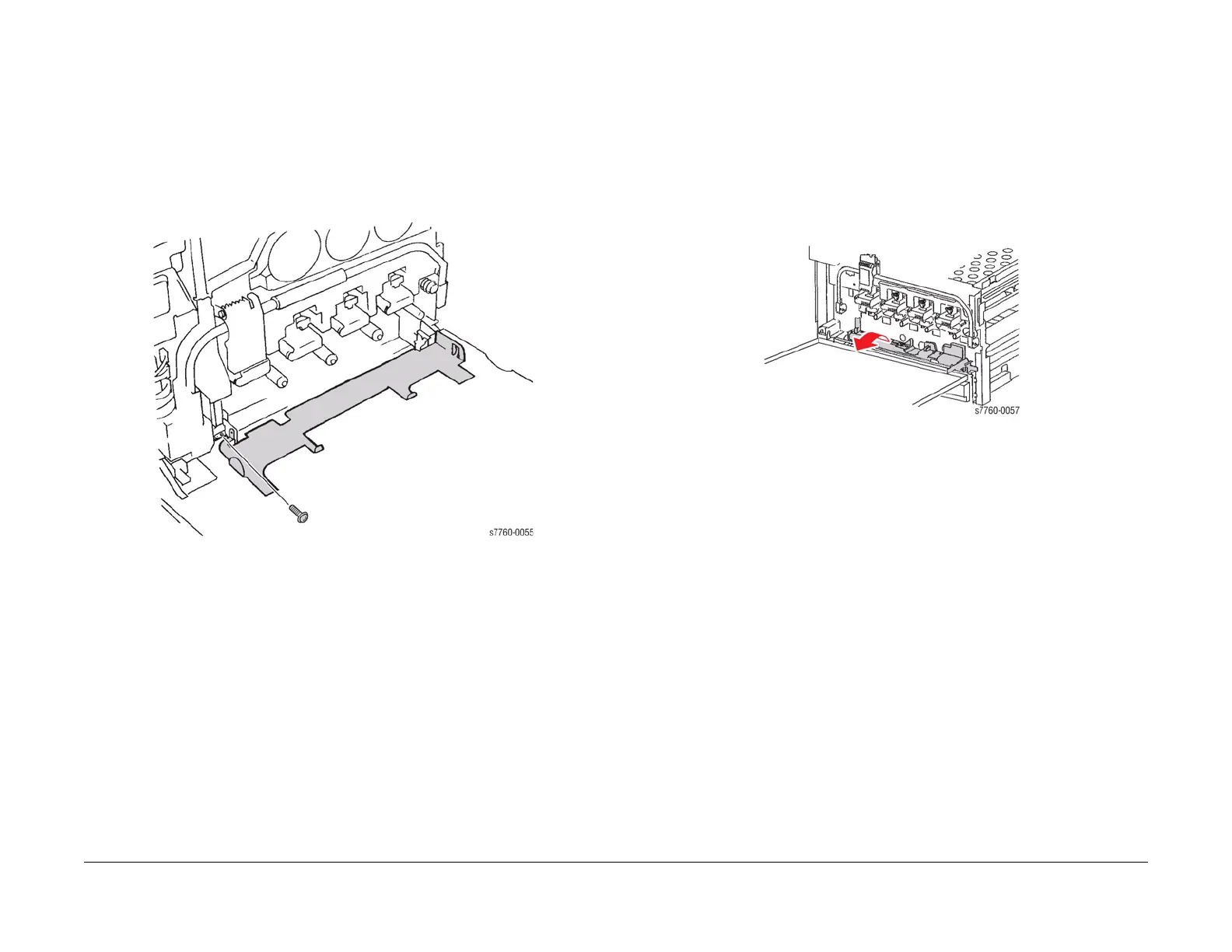

Figure 1 Removing Waste Toner Cartridge Cover
REP 9.5 Full Toner Sensor
Parts List on PL 4.1
Removal
1. Open the Front Door.
2. Remove the Waste Toner Cartridge.
3. Remove the Waste Toner Cartridge Cover (REP 9.3).
4. Removing the Full Toner Sensor (Figure 1).
a. Lift Left End slightly and pull left to disengage Mounting Tabs.
b. Disconnect the wiring harnesses, if necessary to replace the sensor.
Figure 1 Removing Full Toner Sensor
Replacement
CAUTION
Ensure to handle the wiring carefully when installing the Full Toner Sensor. DO NOT trap and
smash the wiring.
