Xerox Phaser 7760 Service Manual

January 2010
4-24
Phaser 7760 Color Laser Printer
REP 7.10, REP 7.11
Revised
Repairs and Adjustments
REP 7.10 Tray 3 Feeder (TTM - High-Capacity)
Parts List on PL 16.6
Removal
1. Pull out Tray 3.
2. Remove the Left Lower Cover (PL 16.16).
3. Removing Tray 3 Feeder (Figure 1).
a. Loosen 1 screw holding the Bracket.
b. Release the wiring harness from the Clamp and disconnect the P/J.
c. Remove the 2 screws and Tray 3 Feeder Assembly.

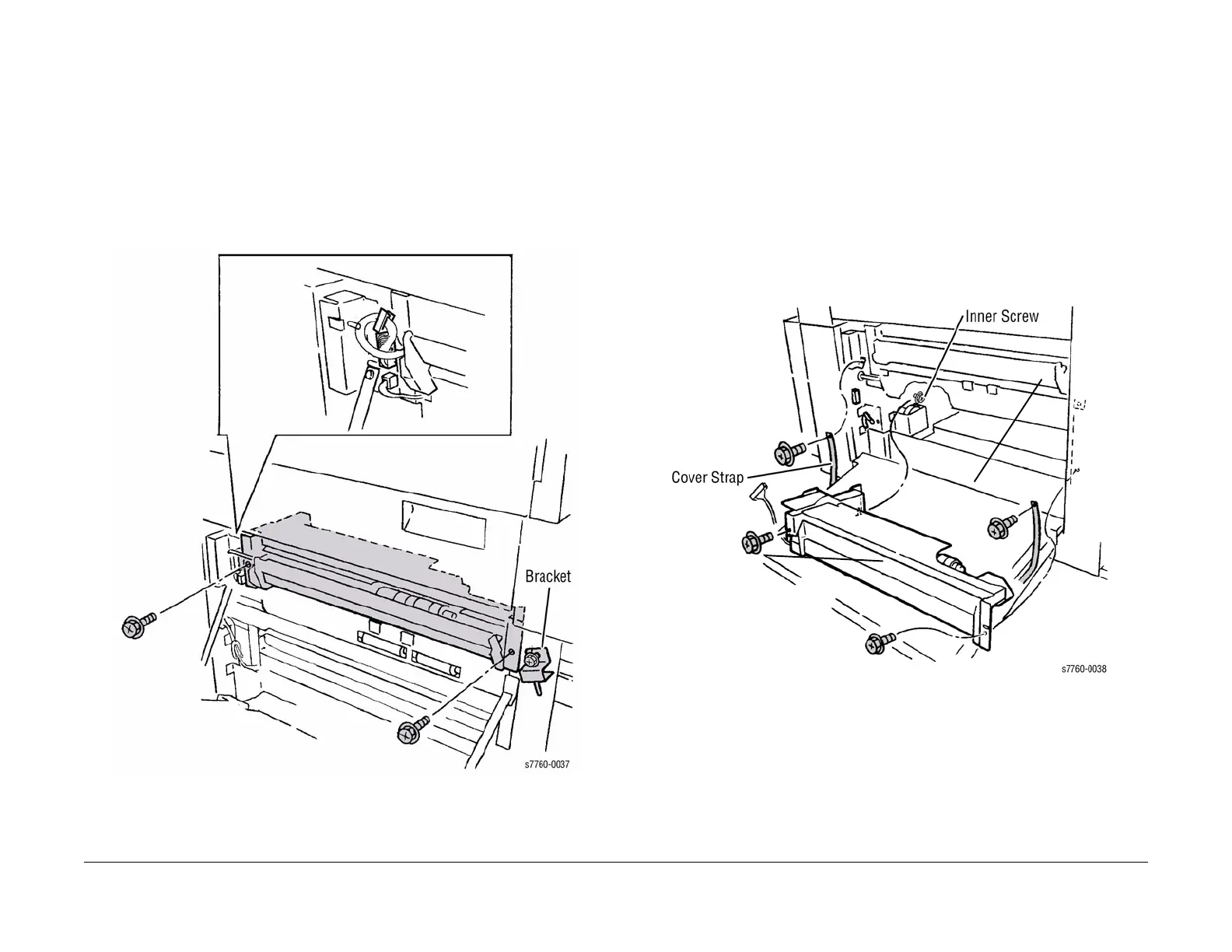

Figure 1 Removing the Tray 3 Feeder
REP 7.11 Tray 4 Feeder (TTM - High-Capacity)
Parts List on PL 16.6
Removal
1. Remove Tray 3.
2. Pull out Tray 4 and Tray 5.
3. Open the Left Cover.
4. Remove the Lower Chute.
5. Removing Tray 4 Feeder Assembly (Figure 1).
a. Remove 2 screws securing the Cover Straps.
b. Disconnect the wiring harness and disconnect the P/J.
c. Loosen the inner screw.
d. Remove the 2 screws and Tray 4 Feeder Assembly.
Figure 1 Removing the Tray 4 Feeder Assembly
