January 2010
4-48
Phaser 7760 Color Laser Printer
REP 9.16, REP 9.17
Revised
Repairs and Adjustments
REP 9.16 IBT Belt (Accumulator Belt) Cleaner Assembly
Parts List on PL 5.3
Removal
1. Open the Front Cover.
2. Release and move the IBT Cam Lever down.
3. Remove the Right Cover (REP 14.3).
4. Pull the IBT Belt Assembly out a few inches just enough to access Belt Cleaner (REP
9.15).
CAUTION
Handle the Cleaner Assembly with care to prevent spilling toner.
5. Remove the 2 screws and remove IBT Belt Cleaner Assembly (Figure 1).

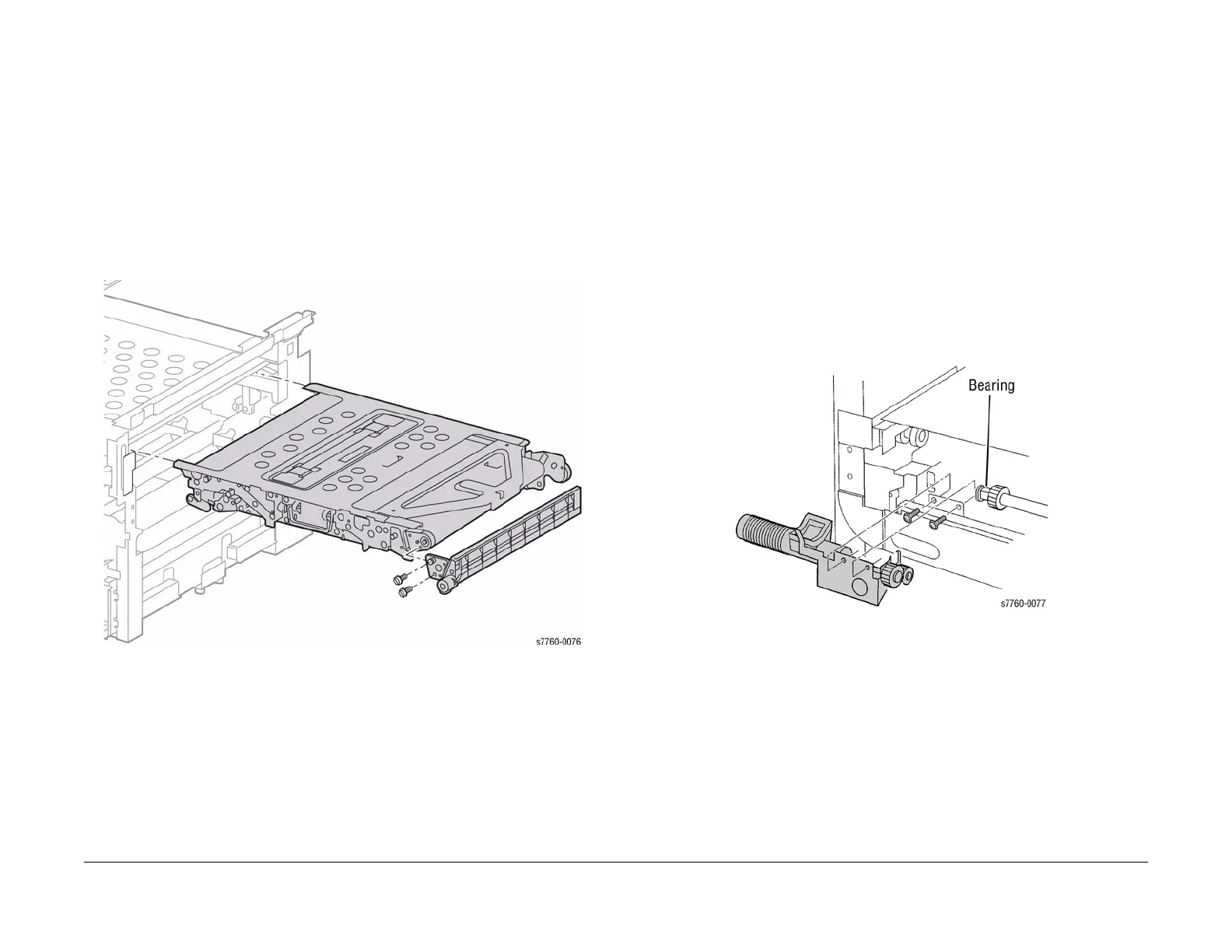

Figure 1 Removing IBT Belt (Accumulator Belt) Cleaner Assembly
Replacement
CAUTION
Never run the Printer without the Belt Cleaner installed or severe damage to the Accumulator
Belt can occur.
Ensure the Accumulator Belt is fully inserted or severe printer damage can result. NEVER
FORCE the IBT Cam Lever.
REP 9.17 Auger Assembly
Parts List on PL 5.2
Removal
1. Open the Front Cover.
2. Remove the Waste Toner Cartridge.
3. Release and move the IBT Cam Lever down.
4. Remove the Right Cover (REP 14.3).
5. Remove the IBT Belt Assembly (REP 9.15).
6. Return the IBT Cam Lever to its upright position.
7. Removing the Waste Toner Agitator (Figure 1).
a. Remove the 2 screws securing the Auger Assembly.
NOTE: Be careful not to knock the Bearing out of its seat or to spill the waste toner
during removal.
b. Shift the Auger Assembly to remove the Drive Shaft from the Bearing and remove
the Auger Assembly.
Figure 1 Removing Waste Toner Agitator
Replacement
NOTE: Before reinstalling the Auger Assembly, be sure to return the IBT Cam Level to the
Down position
