Xerox Phaser 7760 Service Manual

January 2010
4-75
Phaser 7760 Color Laser Printer
REP 12.54
Repairs and Adjustments
Revised
REP 12.54 Finisher Stapler Rail
Parts List on PL 21.6
Removal
1. Remove the Stapler Assembly (REP 12.53).
2. Remove the Inner Cover (REP 12.48).
3. Removing the Stapler Carriage (Figure 1).
NOTE: Underneath the Rail Assembly, ensure to use a stubby screwdriver or wrench.
a. Remove the 2 screws securing the Stapler Move Motor.
b. Lift the Stapler Carriage out of the way.

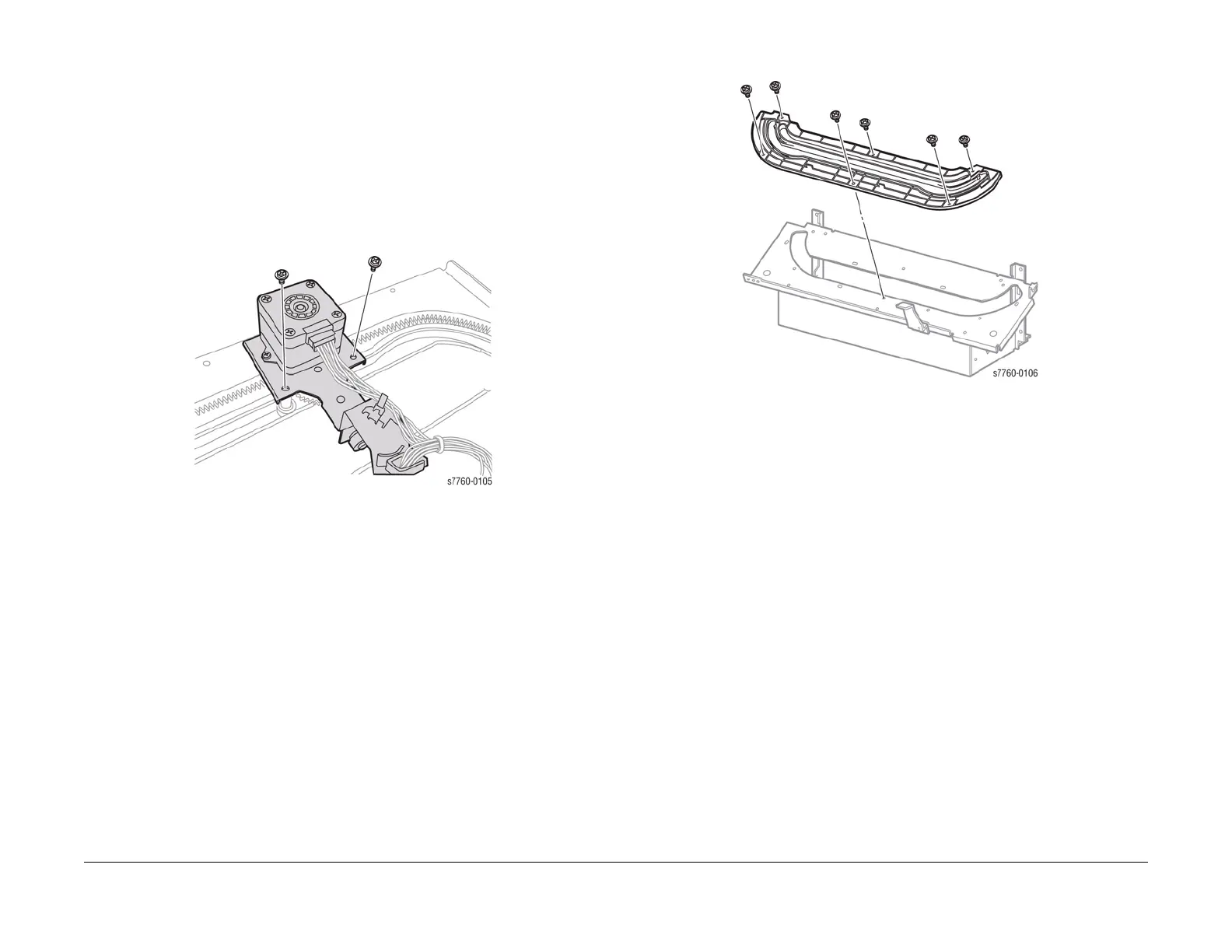

Figure 1 Removing Stapler Carriage
4. Remove the 6 screws securing the Stapler Rail and remove the Rail (Figure 2).
Figure 2 Removing Stapler Rail
