Xerox Phaser 7760 Service Manual

January 2010
4-20
Phaser 7760 Color Laser Printer
REP 7.2, REP 7.3
Revised
Repairs and Adjustments
REP 7.2 Tray 1 (MPT) Feed Roll
Parts List on PL 2.13
Removal
1. Open the Left-Hand Door A and locate the Pick Rollers near the Duplex Chute.
2. Rotate the white Retainers to locate the tabs.
3. Lift the Tab and slide the white Retainers away from the Pick Rollers.
4. Slide the Pick Rollers off the Retaining Pins.
5. Lift and remove the Feed Rolls.

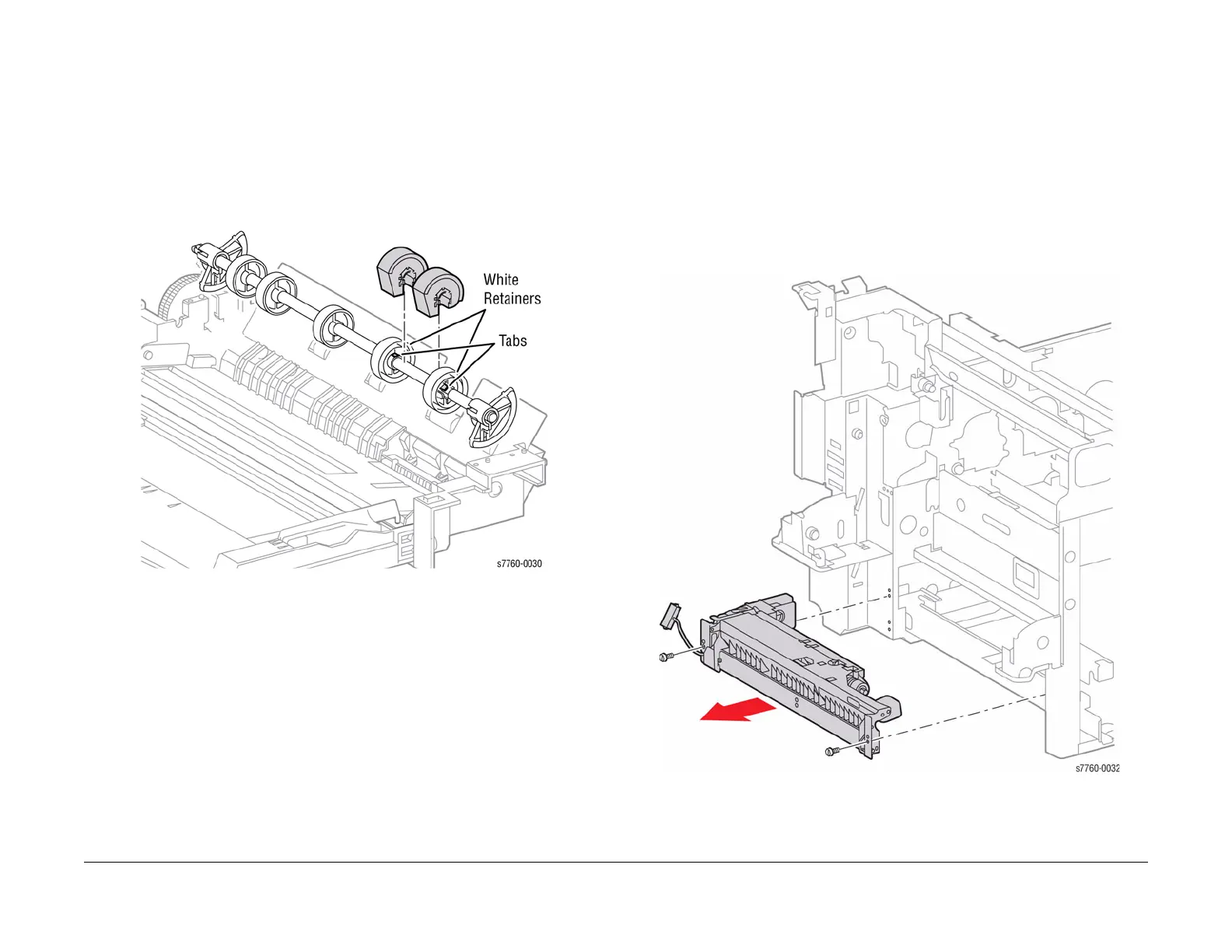

Figure 1 Removing Feed Roll
REP 7.3 Tray 2 Feeder
Parts List on PL 2.3
Removal
1. Remove the Left Lower Cover (REP 14.12).
2. Pull out Tray 2 halfway.
3. Removing Tray 2 Feeder (Figure 1).
a. Disconnect the wiring harness.
b. Remove the 2 screws securing Tray 2 Feeder Assembly.
NOTE: Some manipulation may be required to disengage the gears.
c. Remove Tray 2 Feeder Assembly by sliding out the Feeder Assembly at an angle.
Figure 1 Removing Tray 2 Feeder
