Xerox Phaser 7760 Service Manual

January 2010
4-79
Phaser 7760 Color Laser Printer
REP 12.58, REP 12.59
Repairs and Adjustments
Revised
REP 12.58 Finisher Stacker Tray Position
Parts List on PL 21.2
Removal
1. Remove the Rear Upper Cover (REP 12.41).
NOTE: In the next step, while disengaging the Elevator Pulley, hold the Stacker Tray with
one hand.
2. Disengaging the Elevator Pulley (Figure 1).
a. Disengage the Elevator Pulley by pulling the Gear towards the rear of the Finisher.
OR
b. Use a screwdriver to turn the Motor Pulley to move the Stacker Tray Bracket up or
down.

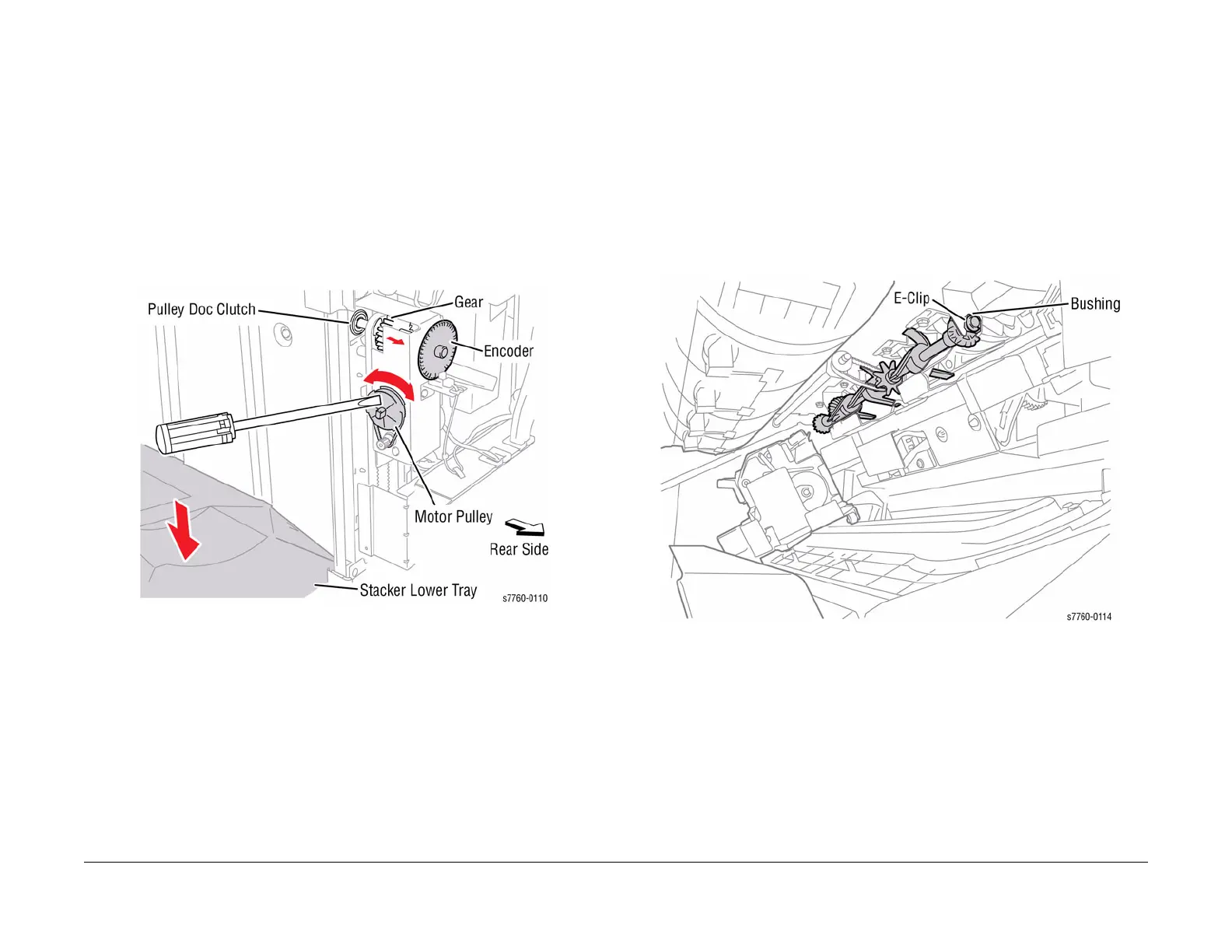

Figure 1 Disengaging Elevator Pulley
REP 12.59 Finisher Paddle Shaft
Parts List on PL 21.9
Removal
1. Open the Front Door.
2. Manually move the Stapler Assembly towards the rear of the Finisher.
3. Remove the Rear Upper Cover (REP 12.41).
4. Removing the Paddle Shaft (Figure 1).
a. Remove 1 E-Clip and 1 Bushing.
b. Press the Bracket down and remove the Paddle Shaft. Move the Shaft to the rear
until the rear Bushing comes out.
c. Disengage the Tab on the Synchronous Belt Pulley and remove the Pulley.
Figure 1 Removing Paddle Shaft
Replacement
1. Reinstall the components in the reverse order of the removal procedure.
