Xerox Phaser 7760 Service Manual

January 2010
4-84
Phaser 7760 Color Laser Printer
REP 12.65
Revised
Repairs and Adjustments
REP 12.65 Finisher Bottom Buffer Chute Assembly
Parts List on PL 21.10
Removal
1. Open the Front Door.
2. Remove the Booklet Maker Unit (REP 12.55).
3. Removing the Stapler Frame (Figure 1).
a. Disconnect the wiring harnesses at J8326 and J8327.
b. Remove the 2 front screws and 2 rear screws. Remove the Stapler Frame.

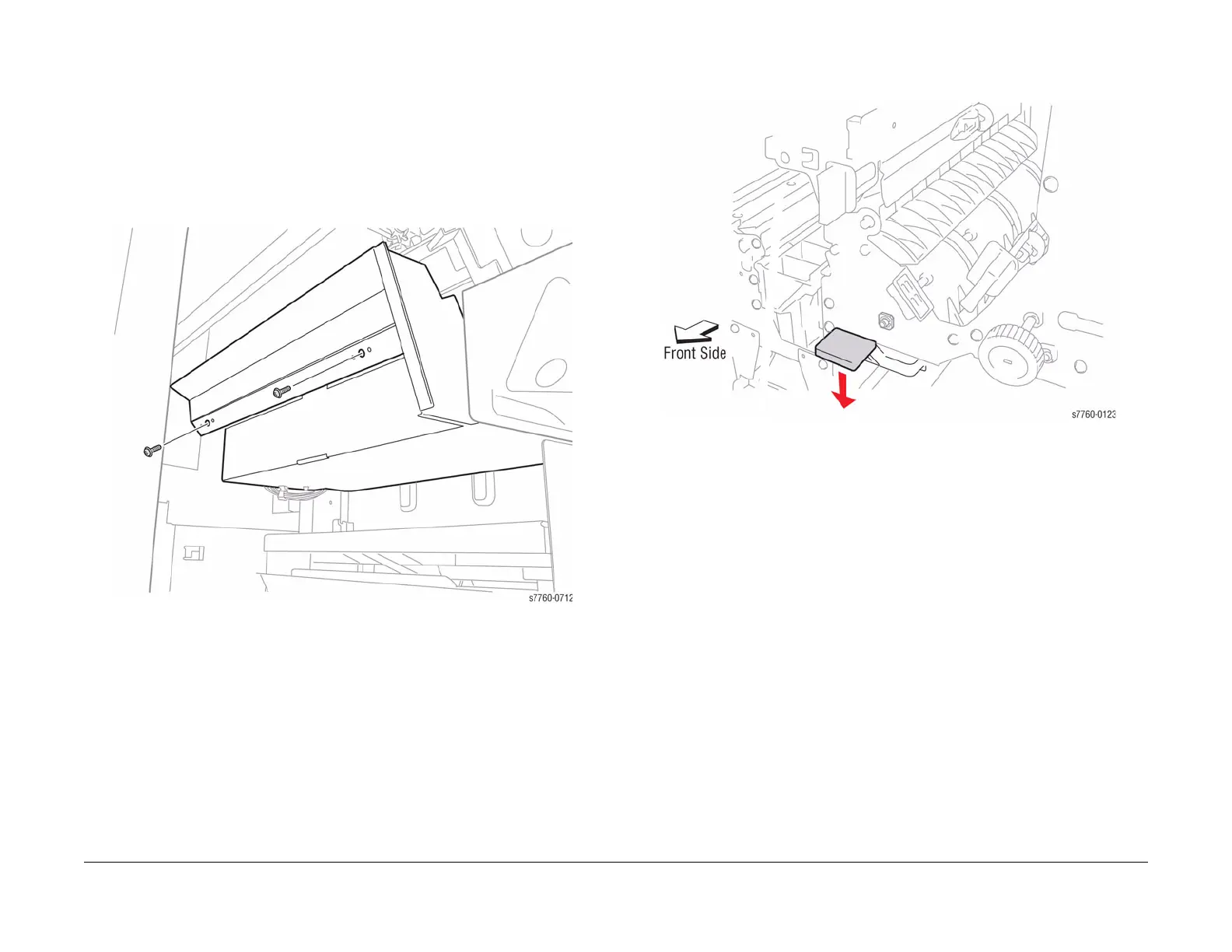

Figure 1 Removing Stapler Frame
4. Removing the Bottom Buffer Chute Assembly.
a. Lower the Bottom Buffer Chute Assembly (Figure 2).
Figure 2 Bottom Buffer Chute Assembly
