Phaser 7760 Color Laser Printer
ADJ 12.4, ADJ 12.5
Repairs and Adjustments
Revised
2. Adjusting the Booklet skew (Figure 3).
a. Open the Front Door and slide out the Booklet Maker.
b. Loosen one screw.
c. For A-type skew, move the End Guide to the left. For B-type skew, move the End
Guide to the Right.

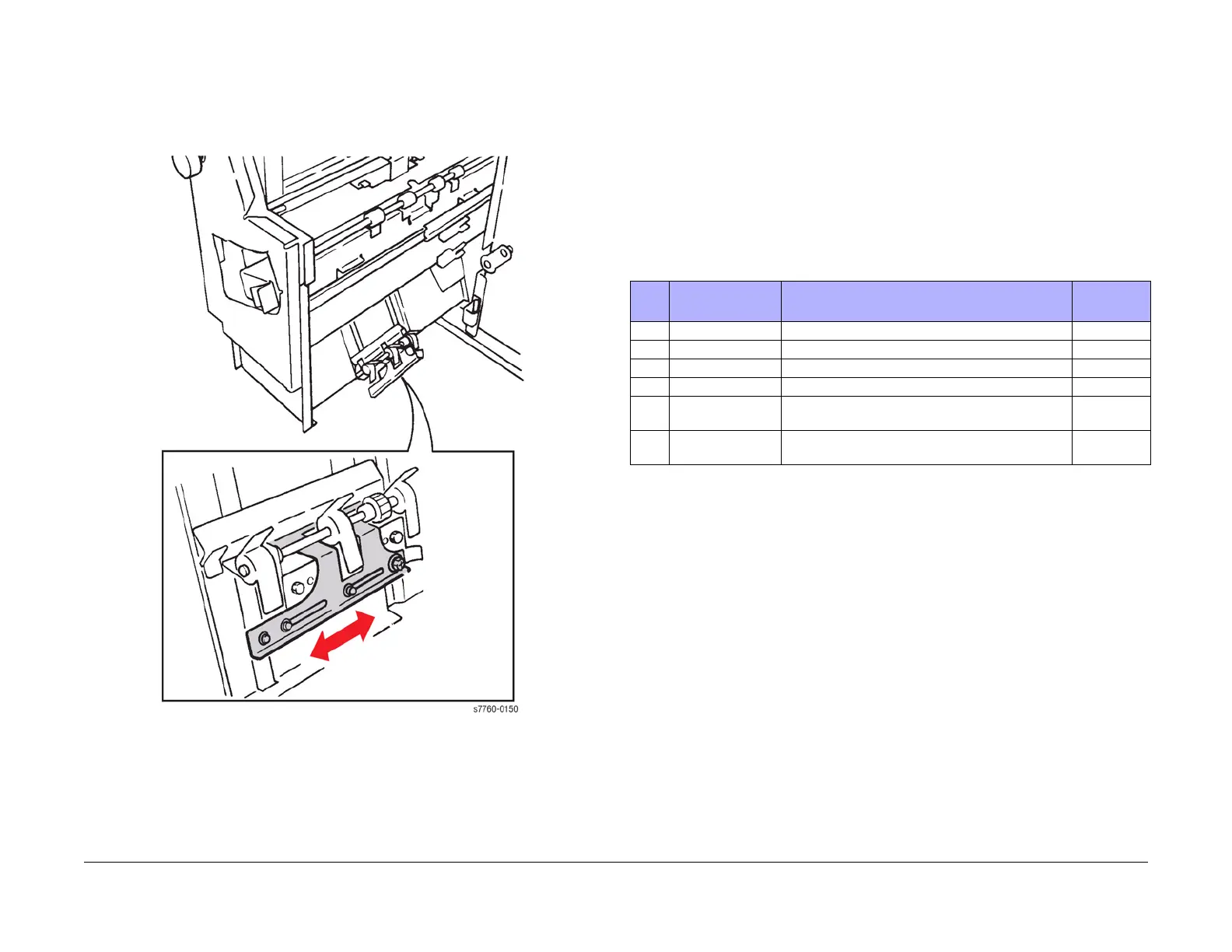

Figure 3 Adjusting the Fold Skew
3. Set machine up according to instructions in Ta bl e 2 and run a sample job. Repeat steps 1
- 2 until the Fold Skew setup meets specification or customer request.
4. After adjustment is done, go to ADJ 12.5 Booklet Fold Position.
ADJ 12.5 Booklet Fold Position
Parts List on PL 21.15
Purpose
To set up the Booklet Maker so that the fold is in the center of the booklet. Several setups are
needed depending on paper size, set size, unstapled or stapled sets.
Check
1. Ensure the trays used are correctly programmed.
2. Ensure the Fold Skew is within specification (ADJ 12.4).
3. Set up the machine according to instructions in Tab le 1 and run 1 set of each Booklet job
in Customer mode. Label each booklet.
Table 1 Booklet Jobs
Job #
Select Paper
Supply
Select Booklet Creation Mode
Booklet
Size
1 11 x 17 / A3 SEF Booklet Layout, 2 sided originals / Booklet Fold Only 1 sheet
2 8.5 x 11 / A4 SEF Booklet Layout, 2 sided originals / Booklet Fold Only 1 sheet
3 11 x 17 / A3 SEF Booklet Layout, 2 sided originals / Booklet Fold Only 2 sheets
4 11 x 17 / A3 SEF Booklet Layout, 2 sided originals / Booklet Fold Only 5 sheets
5 11 x 17 / A3 SEF Booklet Layout, 2 sided originals / Booklet Fold and
Staple
2 sheets
6 8.5 x 11 / A4 SEF Booklet Layout, 2 sided originals / Booklet Fold and
Staple
2 sheets
