Phaser 7760 Color Laser Printer
REP 8.6
Revised
Repairs and Adjustments
REP 8.6 Registration Transport Assembly
Parts List on PL 2.6
Removal
1. Remove the Rear Cover (REP 14.2).
2. Remove the Rear Left Middle Cover (REP 14.4).
3. Remove the Left Cover Assembly (REP 8.1).
NOTE: DO NOT remove the 2 inside screws. Note the wiring harness position for reinstalling
and make sure that the wires are routed behind the black plastic cover on the Registration
Transport Assembly.
4. Removing the Registration Transport Assembly (Figure 1).
a. Disconnect the wiring harness.
b. Remove the 2 screws securing the Registration Transport Assembly.
c. Pivot the top and lift the Registration Transport to remove.

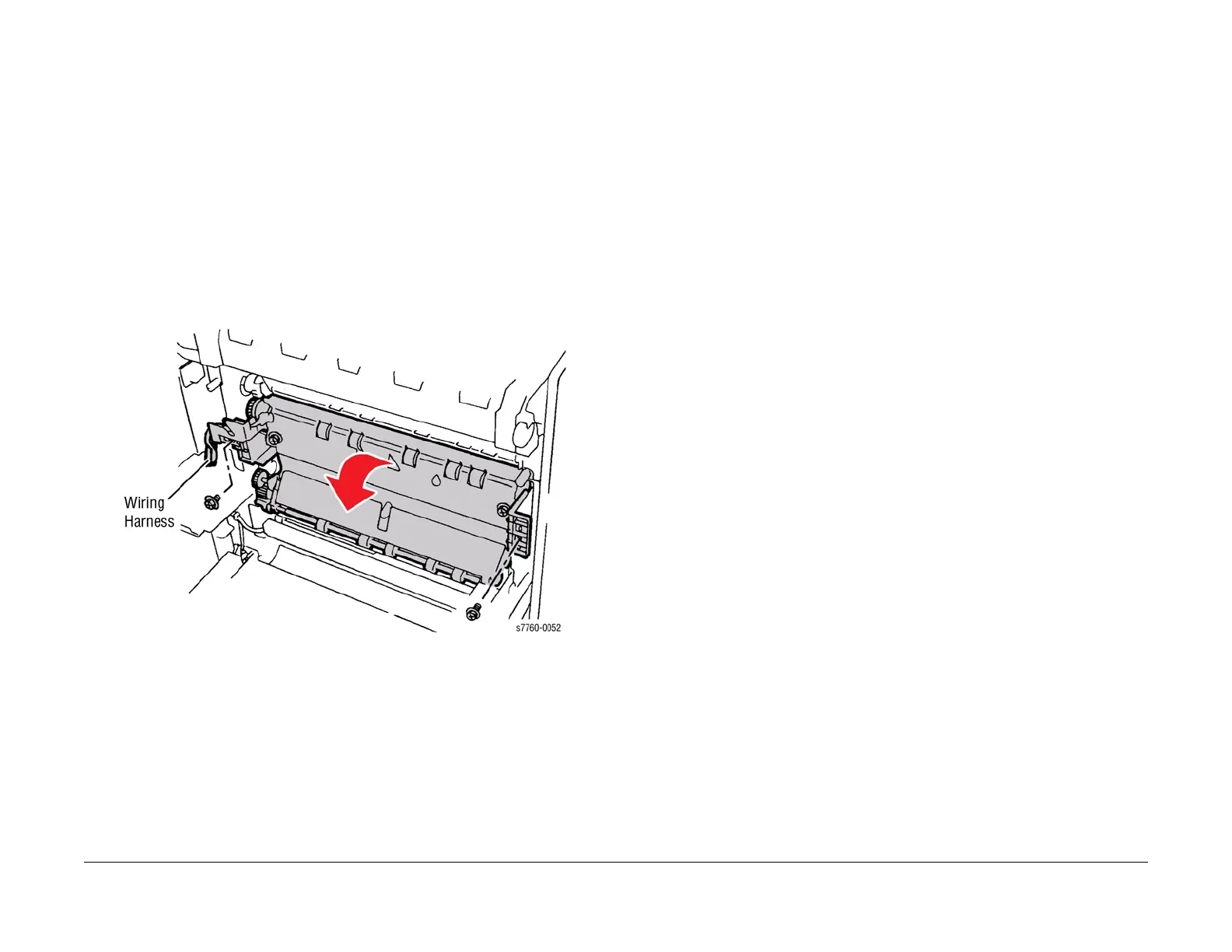

Figure 1 Removing Registration Transport Assembly
Replacement
NOTE: The bearing is equipped with two Anti-rotation Tabs. If one breaks during removal,
install bearing so other tab is employed.
