Xerox Phaser 7760 Service Manual

January 2010
4-46
Phaser 7760 Color Laser Printer
REP 9.12, REP 9.13
Revised
Repairs and Adjustments
REP 9.12 IBT Steering Drive Assembly
Parts List on PL 1.3
Removal
1. Open the Front Cover.
2. Remove the Fuser Cover (REP 14.8).
3. Release and move the IBT Cam Lever half way down.
4. Remove the Dispenser Cover (REP 9.6).
5. Removing the Steering Drive Motor (Figure 1).
a. Disconnect the wiring harness.
b. Remove the 3 screws securing the IBT Steering Drive Assembly and remove the
Assembly from the Printer.

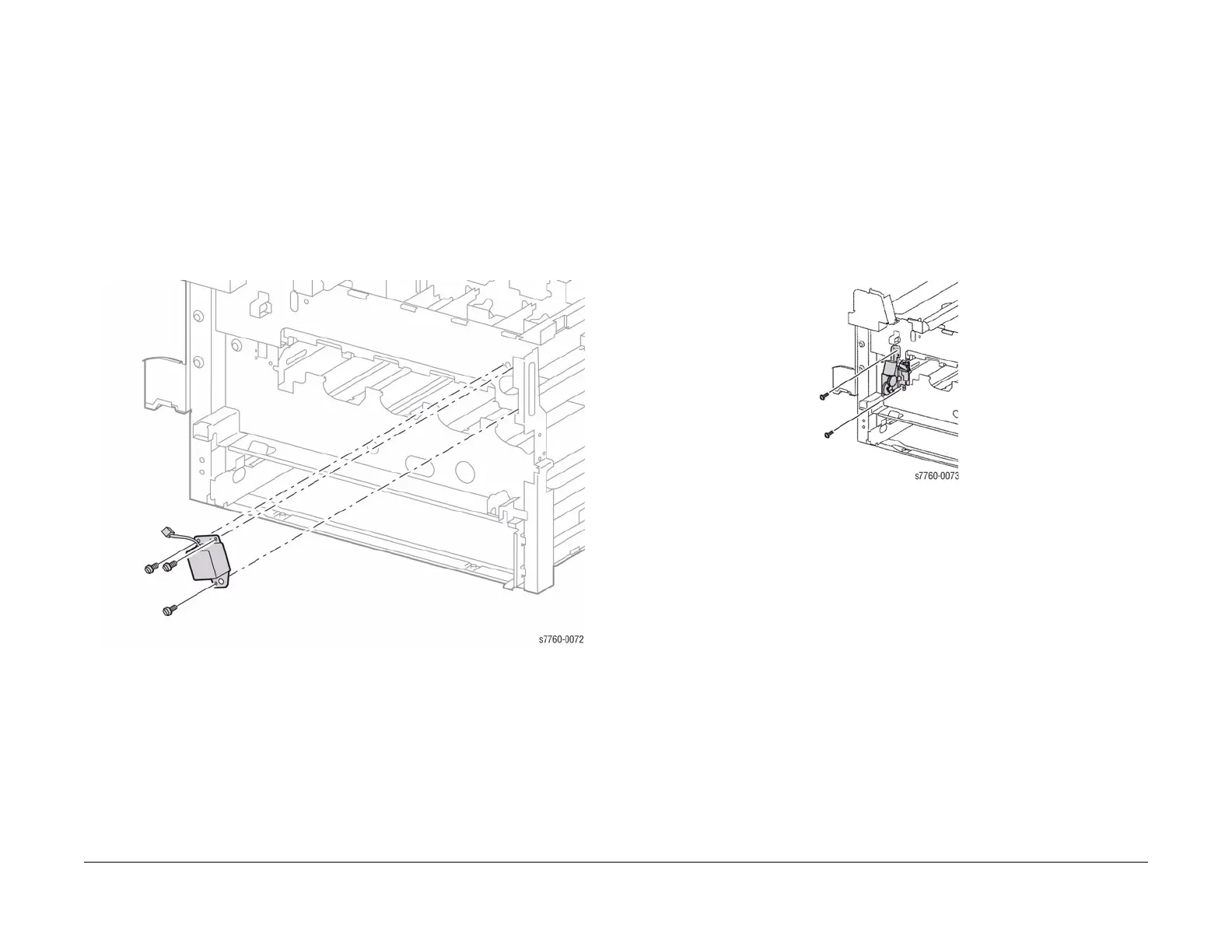

Figure 1 Removing Steering Drive Motor
REP 9.13 Agitator Motor Assembly
Parts List on PL 4.1
Removal
1. Open the Front Cover.
2. Remove the Waste Toner Cartridge.
3. Remove the Fuser Cover (REP 14.8).
4. Release and move the IBT Cam Lever half way down.
5. Remove Dispenser Cover (REP 9.6).
6. Removing the Waste Toner Agitator (Figure 1).
a. Disconnect the wiring harness.
b. Remove the 2 screws and remove the Waste Toner Agitator.
Figure 1 Removing Waste Toner Agitator
