Xerox Phaser 7760 Service Manual

January 2010
4-14
Phaser 7760 Color Laser Printer
REP 4.1, REP 4.2
Revised
Repairs and Adjustments

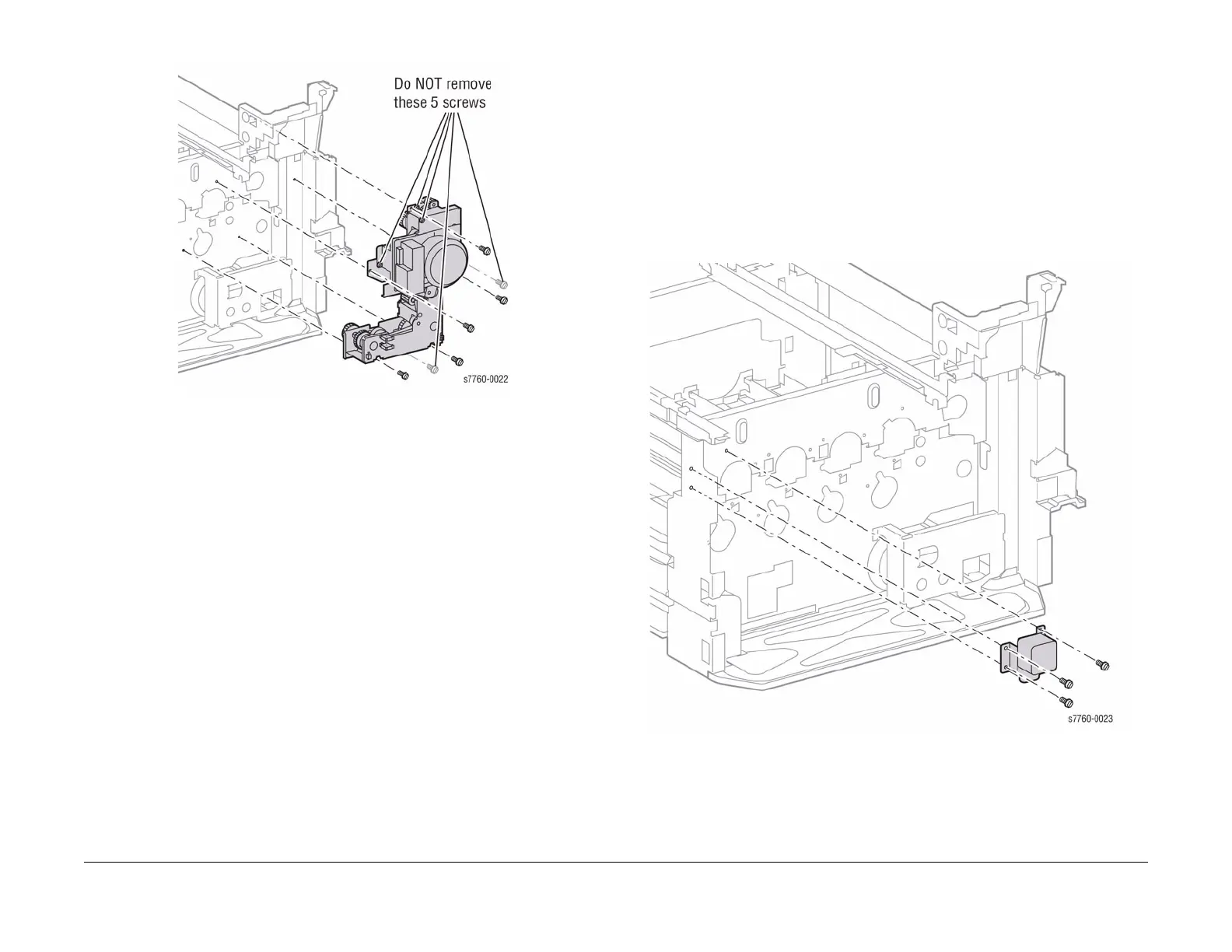

Figure 2 Screw Location
REP 4.2 IBT Motor Assembly
Parts List on PL 1.1
Removal
1. Remove the Rear Cover (REP 14.2).
2. Tilt down the High Voltage Power Supply Chassis (REP 1.6).
3. Removing the IBT Motor.
a. Disconnect the Cooling Fan connector.
b. Remove the 2 screws and remove the Cooling Fan.
c. Disconnect the IBT Motor connector.
d. Remove the 3 screws and remove the IBT Motor.
Figure 1 Removing IBT Drive Motor
