Xerox Phaser 7760 Service Manual

January 2010
xviii
Phaser 7760 Color Laser Printer
Printer Options, Routine Maintenance Items and Con-
Revised
Introduction
Printer Options
Phaser 7760 Color Laser printer options include:
• Additional Trays
• Memory
• Advanced Finisher
• Professional Finisher
• PhaserMatch Software
Additional Trays
Tray 1 (MPT) and Tray 2 are standard on all configurations. The following additional tray combi-
nations are supported:
• 1500-Sheet High-Capacity Feeder (Trays 3, 4, and 5)
• One 2500-Sheet High-Capacity Feeder which has one 500-Sheet Tray (Tray 3) and two
1000-Sheet Trays (Trays 4 & 5).
Advanced Finisher
The Advanced Finisher provides stapling and hole punching for a variety of paper and media. It
is available with either a 3-hole punch (110 V Finisher) or a 2- / 4-hole punch (220 V Finisher).
The Advanced Finisher is optional on all 7760 configurations, and requires one of the two tray
combinations listed in the Additional Trays section.
Professional Finisher
The Professional Finisher has all features of the Advanced Finisher plus the Booklet Maker.
The Professional Finisher requires one of the two tray combinations listed above and is
optional for all configurations.
Memory
All configurations have two memory slots supporting 512 MB modules (up to maximum of 1 GB
DDR2).
PhaserCal and PhaserMatch Software
PhaserMatch Color Management and PhaserCal Color Calibration software provide instru-
ment-based color calibration tools. These applications use spectrophotometer measurements
to achieve optimum calibration of the Phaser 7760 printer.
PhaserCal software is a subset of PhaserMatch and comes standard on all Phaser 7760 con-
figurations. PhaserMatch is standard on Phaser 7760DX and 7760GX configurations, and
optional for the Phaser 7760DN.
Routine Maintenance Items and Consumables
The listed items have limited life and require periodic replacement.

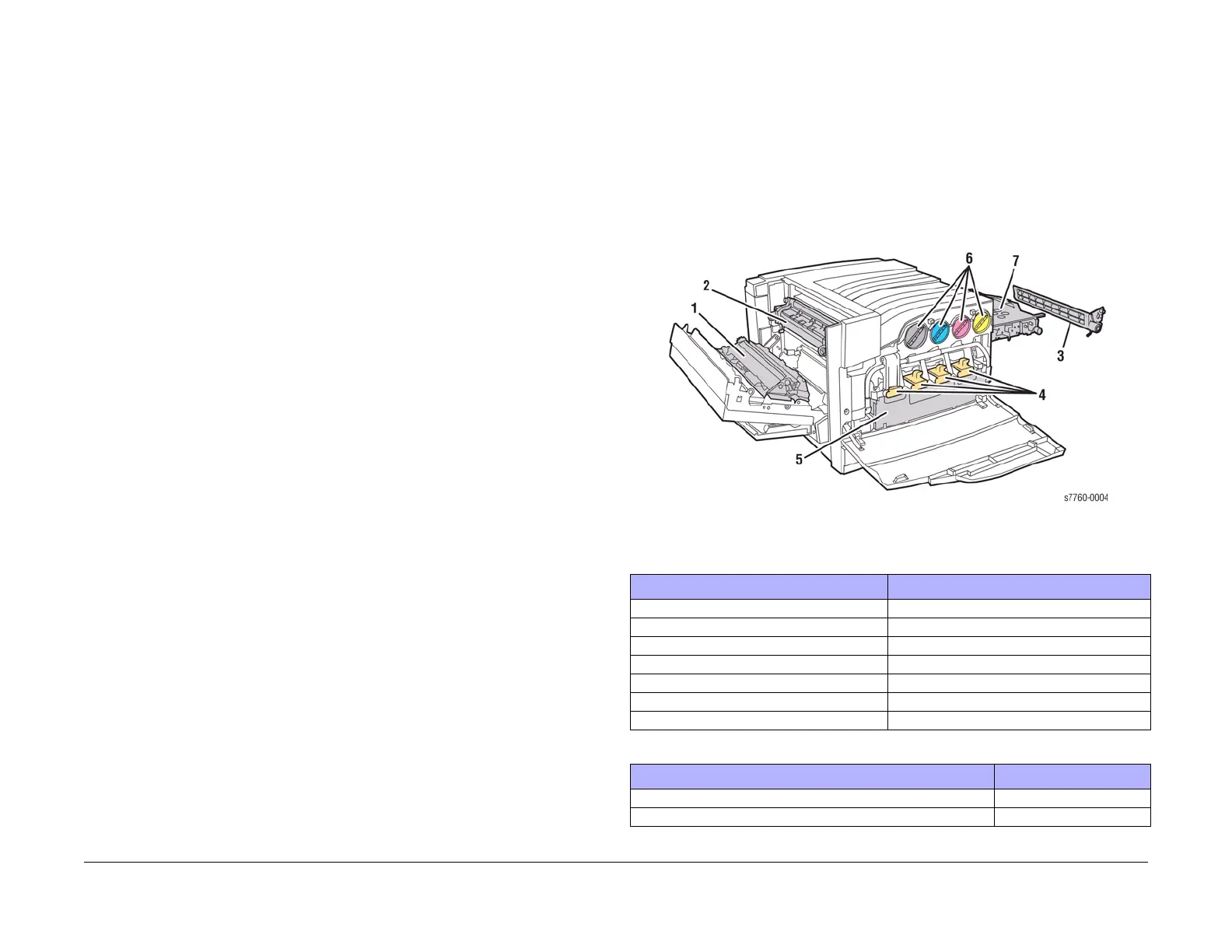

1. Transfer Roller
2. Fuser
3. Belt Cleaner Assembly
4. Imaging Units
5. Waste Toner Cartridge
6. Toner Cartridges
7. Accumulator Belt Assembly
Figure 1 Printer Maintenance Items
Table 1 Routine Maintenance
Items Routine Maintenance
Transfer Roller 100,000 pages
Fuser Unit 100,000 pages
Belt Cleaner Assembly 100,000 pages
Imaging Unit 35,000 pages
Waste Toner Cartridge 27,000 pages
Stacker Staples 15,000 pages
Booklet Maker Staples 20,000 pages
Table 2 Consumables
Items Consumables
Toner Cartridge (Cyan, Magenta, Yellow) 25,000 pages
Toner Cartridge (Black) 32,000 pages
