Xerox Phaser 7760 Service Manual

January 2010
4-69
Phaser 7760 Color Laser Printer
REP 12.47
Repairs and Adjustments
Revised
REP 12.47 Finisher Tray Spring Guide and Top Tray Full
Sensor
Parts List on PL 21.2, PL 21.11
Removal
1. Remove the Front Door (REP 12.40).
2. Remove the Rear Upper Cover (REP 12.41).
3. Remove the Top Cover (REP 12.43).
4. Remove the Front Top Cover (REP 12.44).
5. Remove the Top Tray (REP 12.45).
6. Remove the 2 screws on the rear of the Finisher (Figure 1).

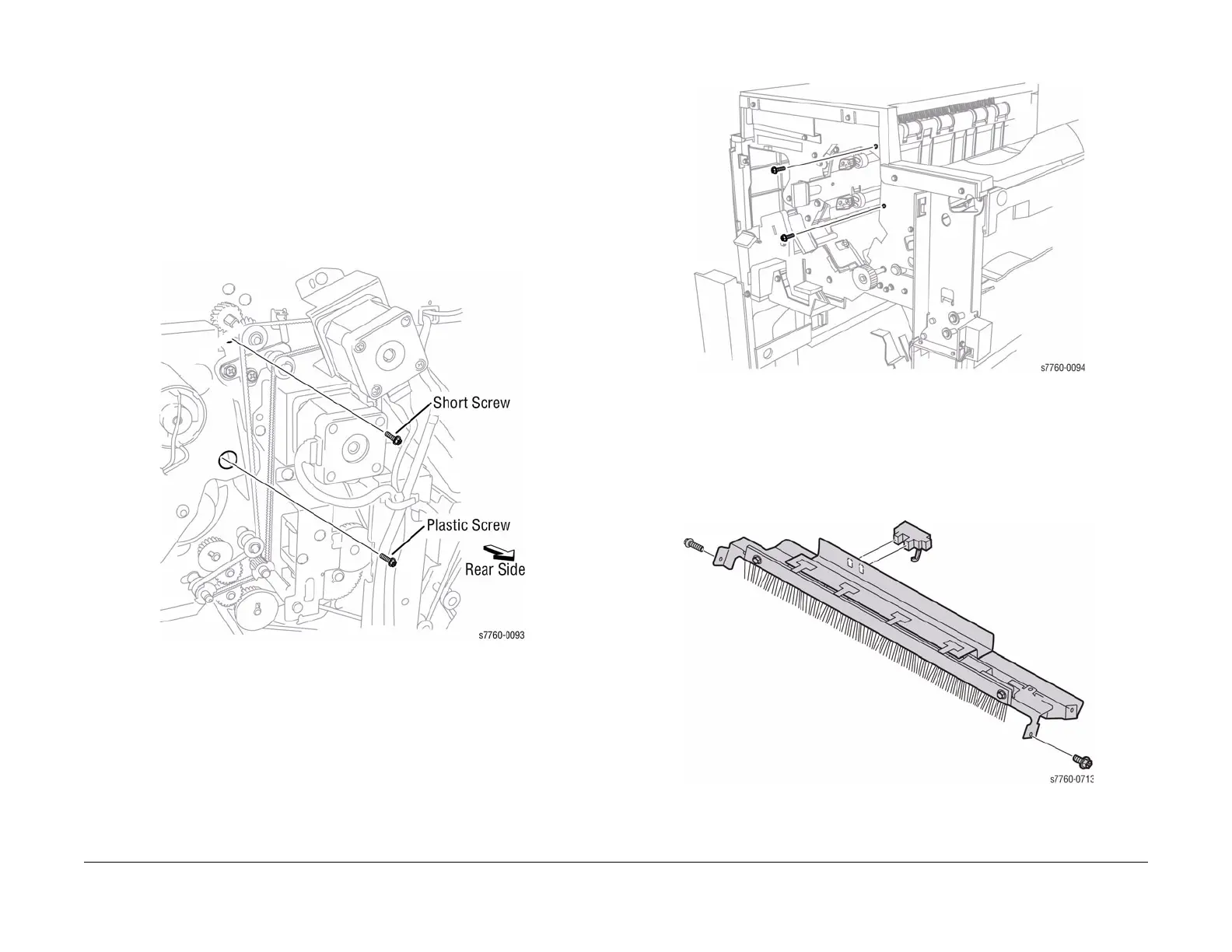

Figure 1 Removing screws on Rear of the Finisher
7. Remove the 2 screws on the front of the Finisher (Figure 2).
Figure 2 Removing screws on Front of the Finisher
8. Removing the Tray Spring Guide and Top Tray Full Sensor.
a. Remove the 2 screws securing the Top Tray Full Sensor Bracket to the Tray Spring
Guide.
b. Disconnect J8322 (refer to Section 7, Finisher Rear View Plug/Jack Locations - Fig-
ure 2) and remove the Top Tray Full Sensor from the Sensor Bracket.
Figure 3 Removing Finisher Tray Spring Guide and Top Tray Full Sensor
