January 2010
4-39
Phaser 7760 Color Laser Printer
REP 9.6, REP 9.7
Repairs and Adjustments
Revised
REP 9.6 Dispenser Cover (Imaging Unit Plate Cover)
Parts List on PL 10.2
Removal
1. Open the Front Door.
2. Open the Left Cover Assembly (Left-Hand Door A).
3. Remove the Fuser Cover (REP 14.8).
4. Slide the 4 Imaging Units out lightly.
5. Release and move the IBT Cam Lever half way down.
6. Remove the 4 screws and remove the Dispense Cover (Figure 1).

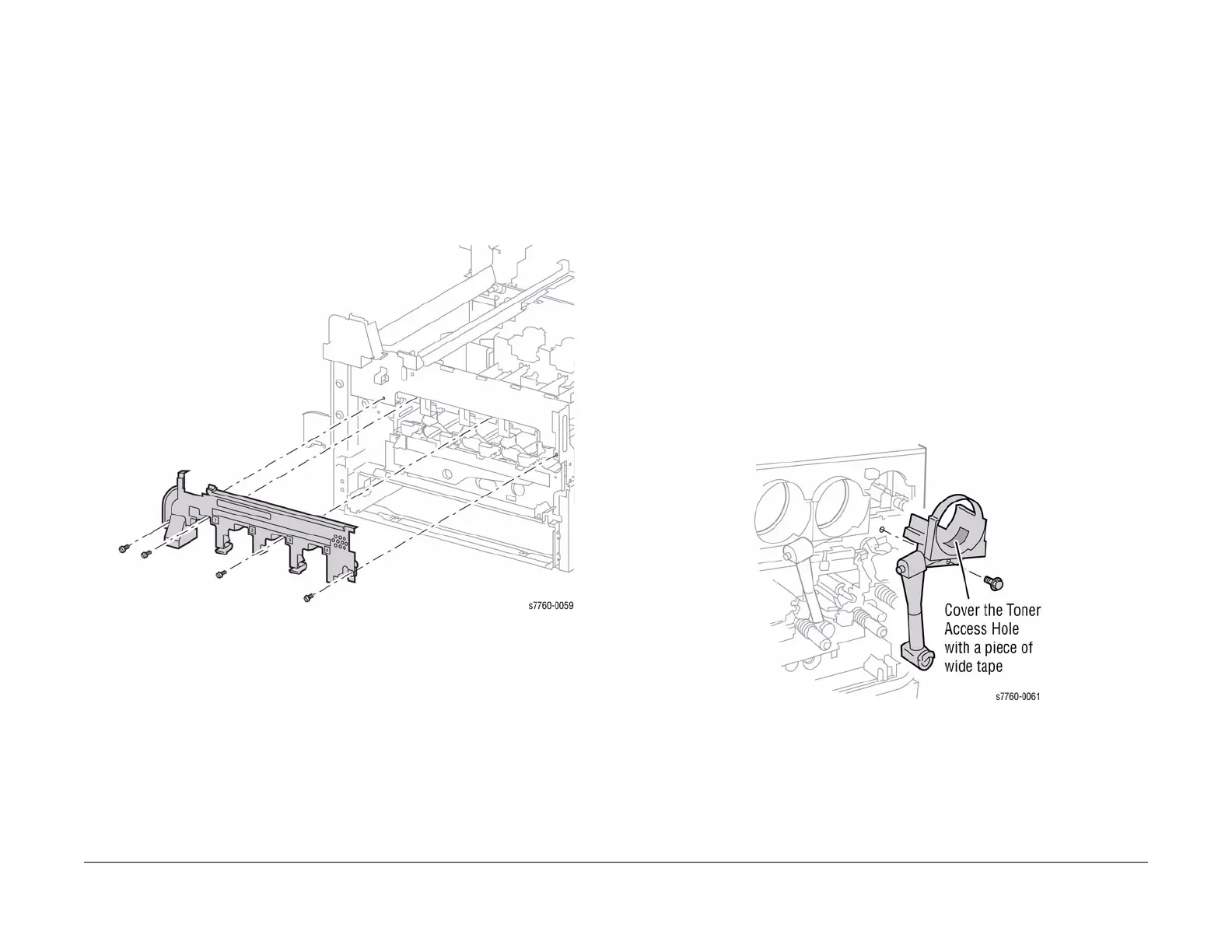

Figure 1 Removing Dispenser Cover
REP 9.7 Toner Dispenser (Dispense Assembly)
Parts List on PL 6.1
Removal
NOTE: Use only a type II Toner Vacuum to clean up toner spills. Have a drop cloth available to
place the removed assemblies on.
CAUTION
The Dispense Assemblies overlap and must be removed in the following order: Y - M - C - K,
then reinstalled as K - C - M - Y.
1. Open the Front Door.
2. Remove the Waste Toner Cartridge.
3. Remove the Imaging Units if necessary.
4. Remove the Toner Cartridges.
5. Remove the Imaging Unit Plate Cover (REP 9.6). Leave the Main Level down.
6. Removing the Toner Dispenser.
a. Cover the exposed opening with a wide piece of tape to avoid spillage (Figure 1).
NOTE: The tape will not stick unless all toner is cleaned off the dispenser first. Do
not overlap the tape to the base plate located behind the opening.
b. Beginning with the Yellow Toner Dispenser, remove the screw securing each Dis-
pense Assembly to the Printer (Figure 1).
Figure 1 Removing Toner Dispenser
To Next Page
