Xerox Phaser 7760 Service Manual

January 2010
4-33
Phaser 7760 Color Laser Printer
REP 8.3, REP 8.5
Repairs and Adjustments
Revised
REP 8.3 Duplex Transport Assembly
Parts List on PL 12.1
Removal
1. Release the Clip and the Left Upper Cover (Figure 1).
2. Loosen the 2 screws and remove the Duplex Transport Assembly.

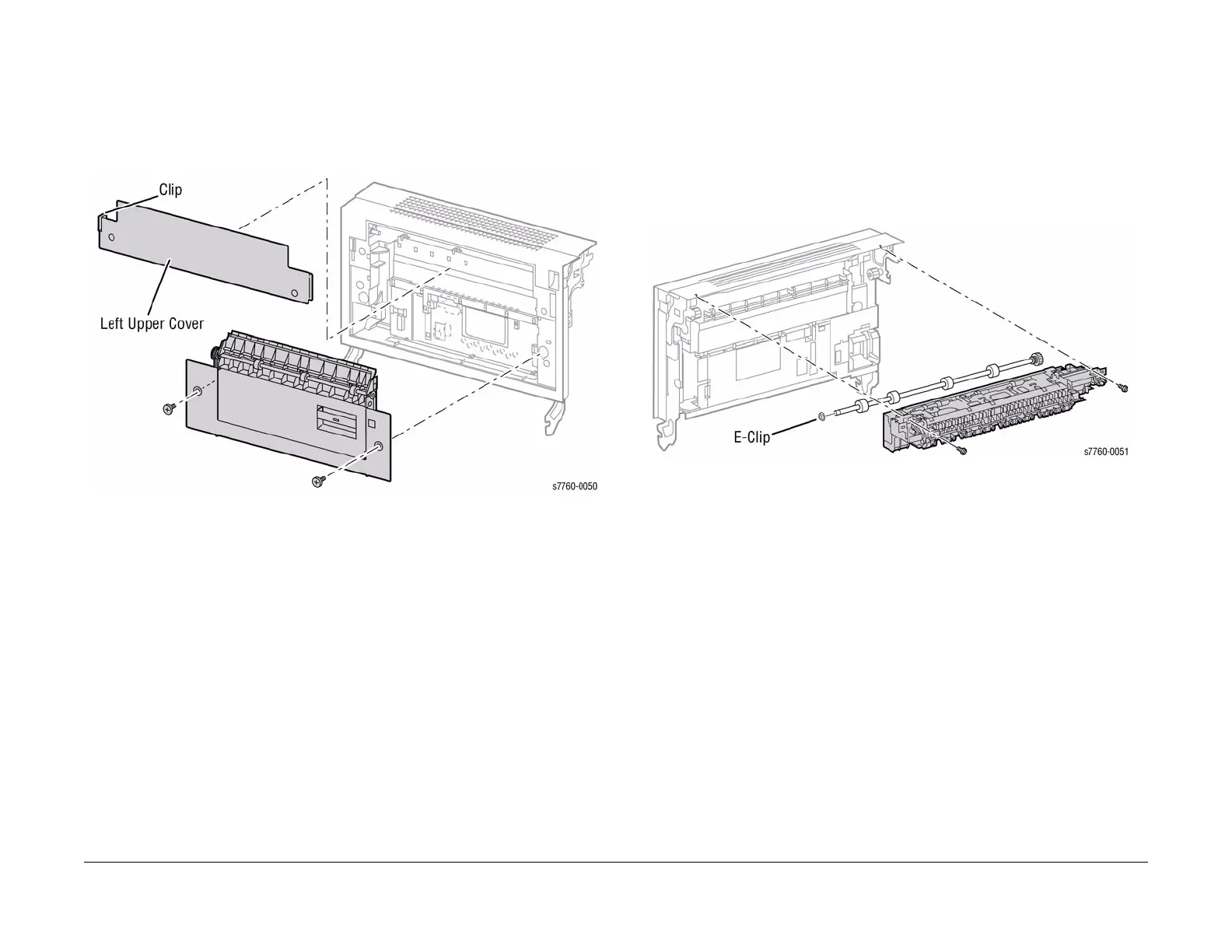

Figure 1 Removing Duplex Transport Assembly
REP 8.5 Inverter Transport
Parts List on PL 11.1
Removal
1. Open the Left Cover Assembly (Left-Hand Door A).
2. Removing the Inverter Transport (Figure 1).
a. Remove the 1 E-ring and 1 Bearing from the front of the Shaft. Push the Shaft to the
rear.
b. Remove the 2 screws and remove the Inverter Transport.
Figure 1 Removing Inverter Transport
