Xerox Phaser 7760 Service Manual

January 2010
4-83
Phaser 7760 Color Laser Printer
REP 12.64
Repairs and Adjustments
Revised

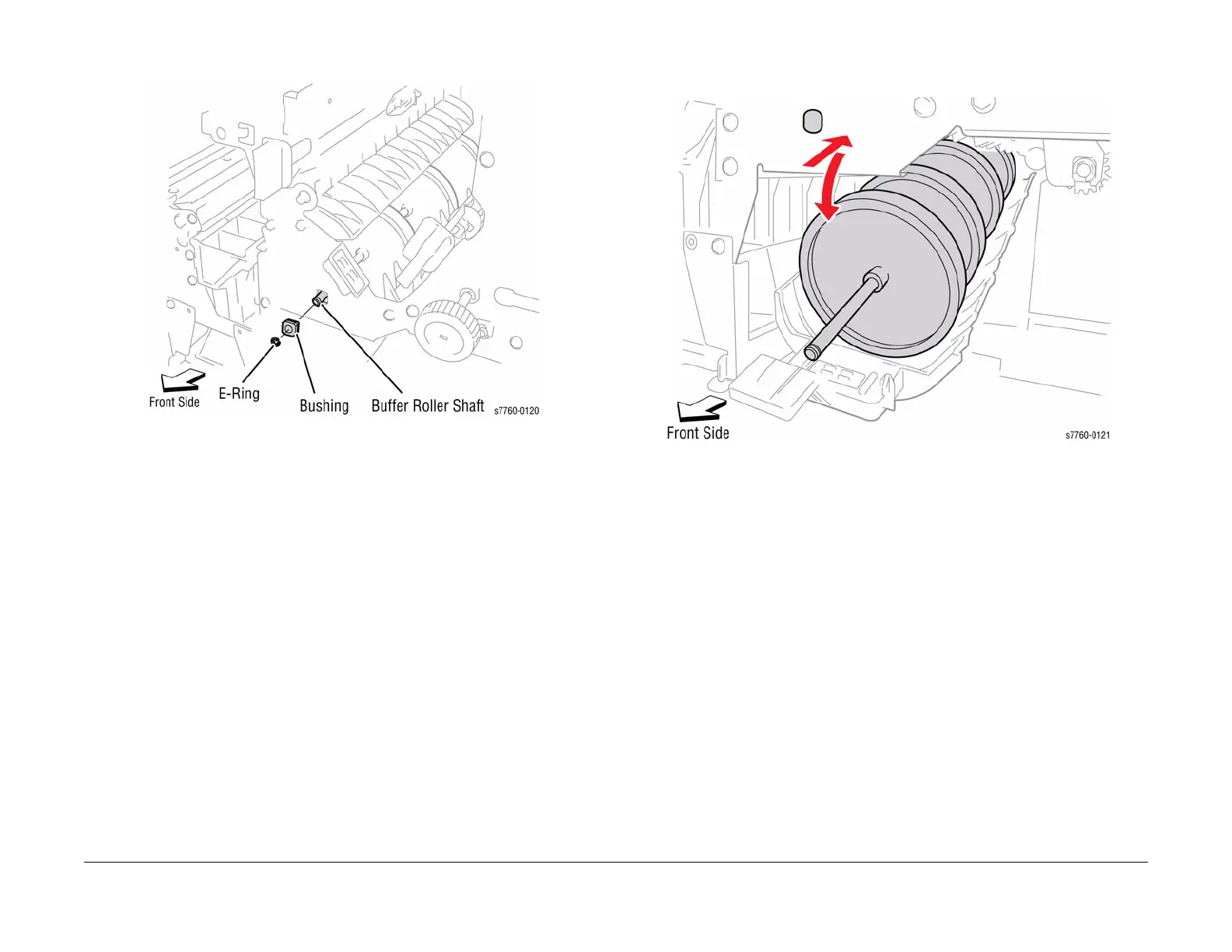

b. Pull Buffer Roller Shaft out to remove the E-Ring and Bearing (Figure 4).
Figure 4 Removing the Buffer Roll
c. Move the Buffer Roller Shaft to the rear and downward and remove the Shaft.
Remove the Buffer Roller (Figure 5).
Figure 5 Removing Buffer Roll
Replacement
1. Ensure that the Transport Gate is in the correct position when re-assembling.
