Phaser 7760 Color Laser Printer
ADJ 12.8
Revised
Repairs and Adjustments
4. Adjust the Front Spring tension by moving the Spring to the Lower hole (Figure 3).

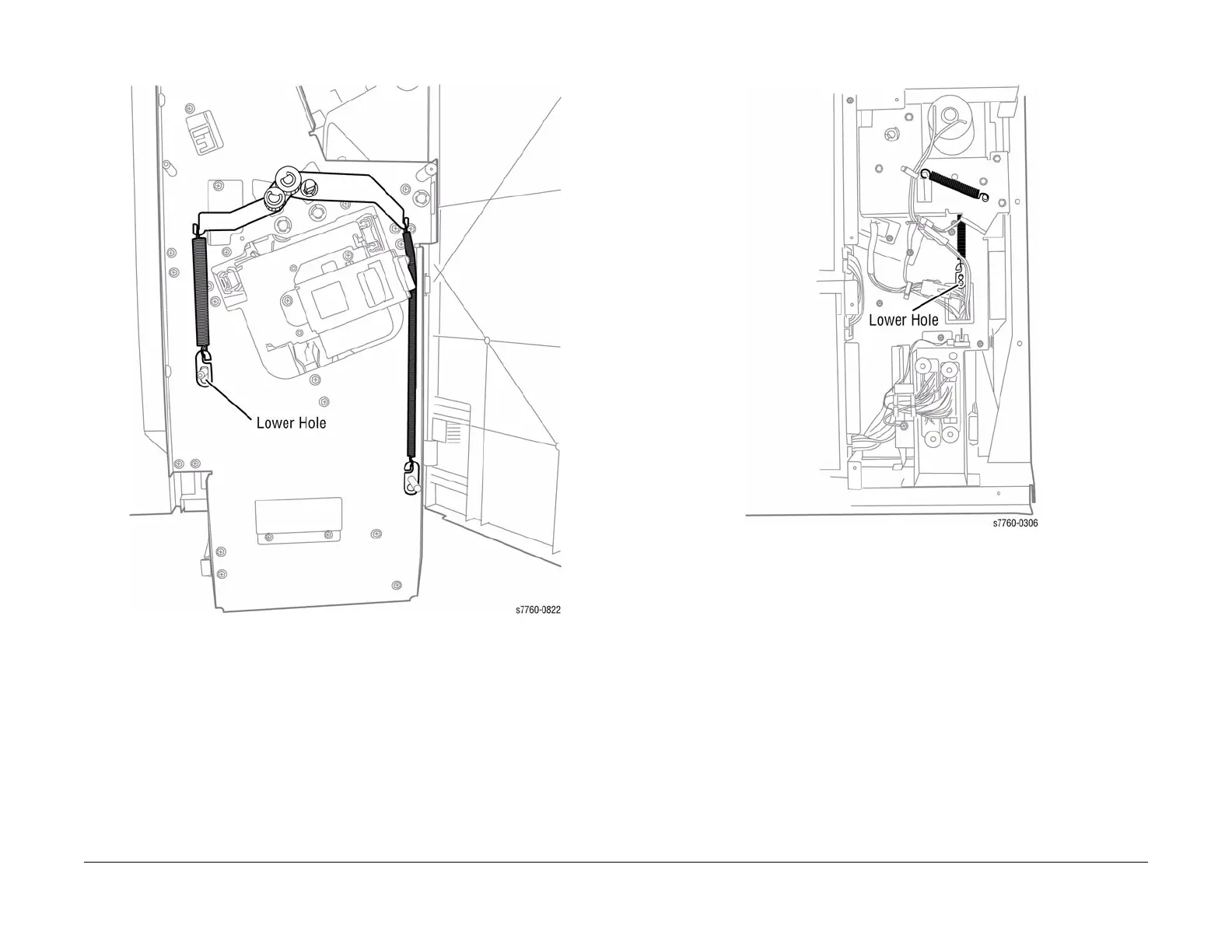

Figure 3 Adjusting the Front Spring Tension
5. Adjust the rear Spring tension by moving the Spring to the Lower hole (Figure 4).
Figure 4 Adjusting the Rear Spring Tension
