Xerox Phaser 7760 Service Manual

January 2010
xx
Phaser 7760 Color Laser Printer
Specifications
Revised
Introduction

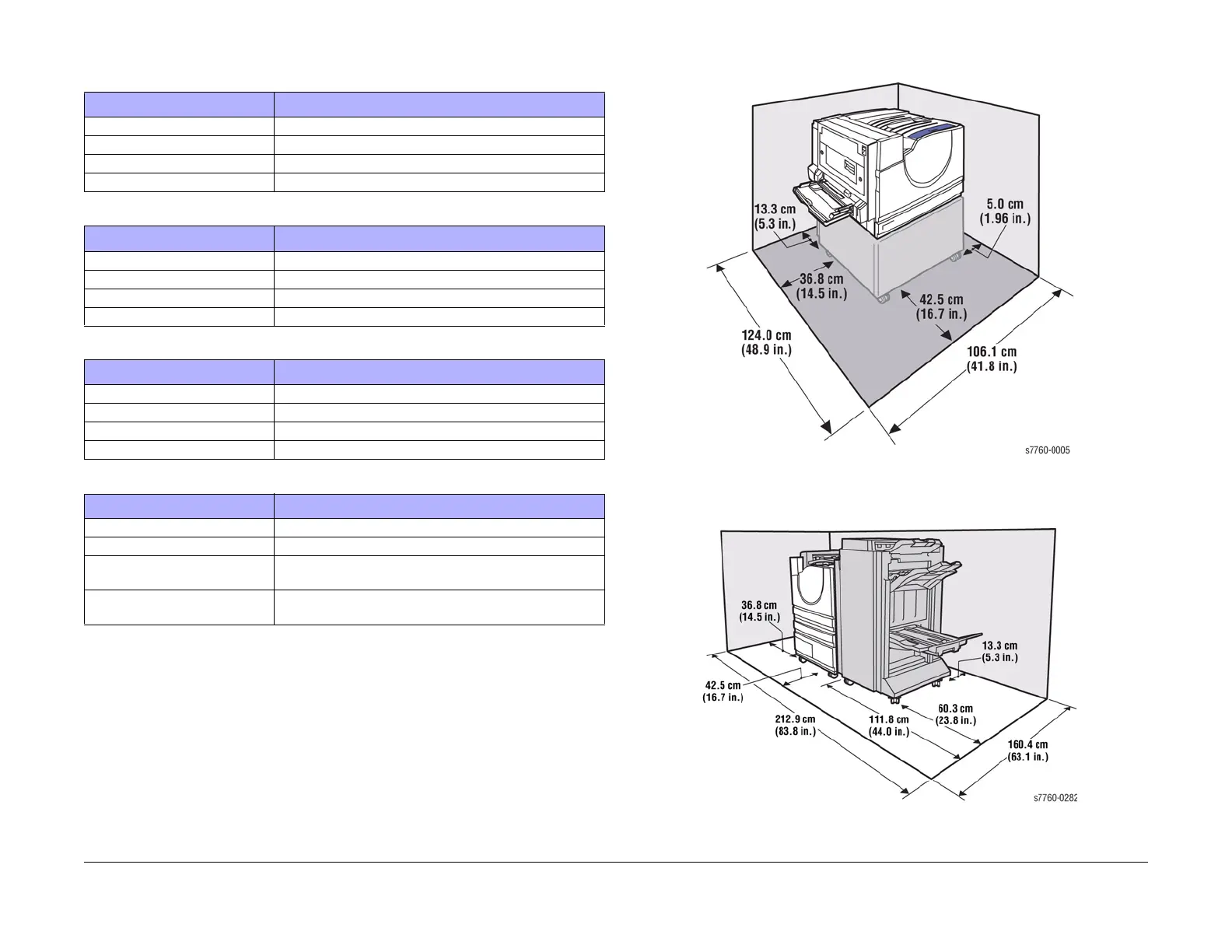

Physical Dimensions and Clearances Minimum Clearances
Figure 1 Printer Minimum Clearances
Figure 2 Printer & Finisher Minimum Clearances
Table 4 Print Engine
Dimensions Value
Height 493 mm (19.4 in.)
Width 644 mm (25.4 in.)
Depth 723 mm (28.5 in.)
Weight (Base Printer) 89 kg (196 lbs.)
Table 5 2500-Sheet Feeder
Dimensions Value
Height 364 mm (14.3 in.)
Width 644 mm (25.4 in.)
Depth 682 mm (26.9 in.)
Weight 40 kg (88 lbs.)
Table 6 1500-Sheet Feeder
Dimensions Value
Height 364 mm (14.3 in.)
Width 644 mm (25.4 in.)
Depth 682 mm (26.9 in.)
Weight 30 kg (66 lbs.)
Table 7 Finisher
Dimensions Value
Height 660 mm (26.0 in.)
Width 995 mm (39.7 in.)
Depth 730 mm (28.7 in.) (without booklet)
870 mm (34.3 in.) (with booklet)
Weight 60 kg (132.1 lbs.) (without booklet)
90 kg (198.1 lbs.) (with booklet)

Xerox Phaser 7760 Specifications
