Xerox Phaser 7760 Service Manual

January 2010
4-26
Phaser 7760 Color Laser Printer
REP 7.12
Revised
Repairs and Adjustments

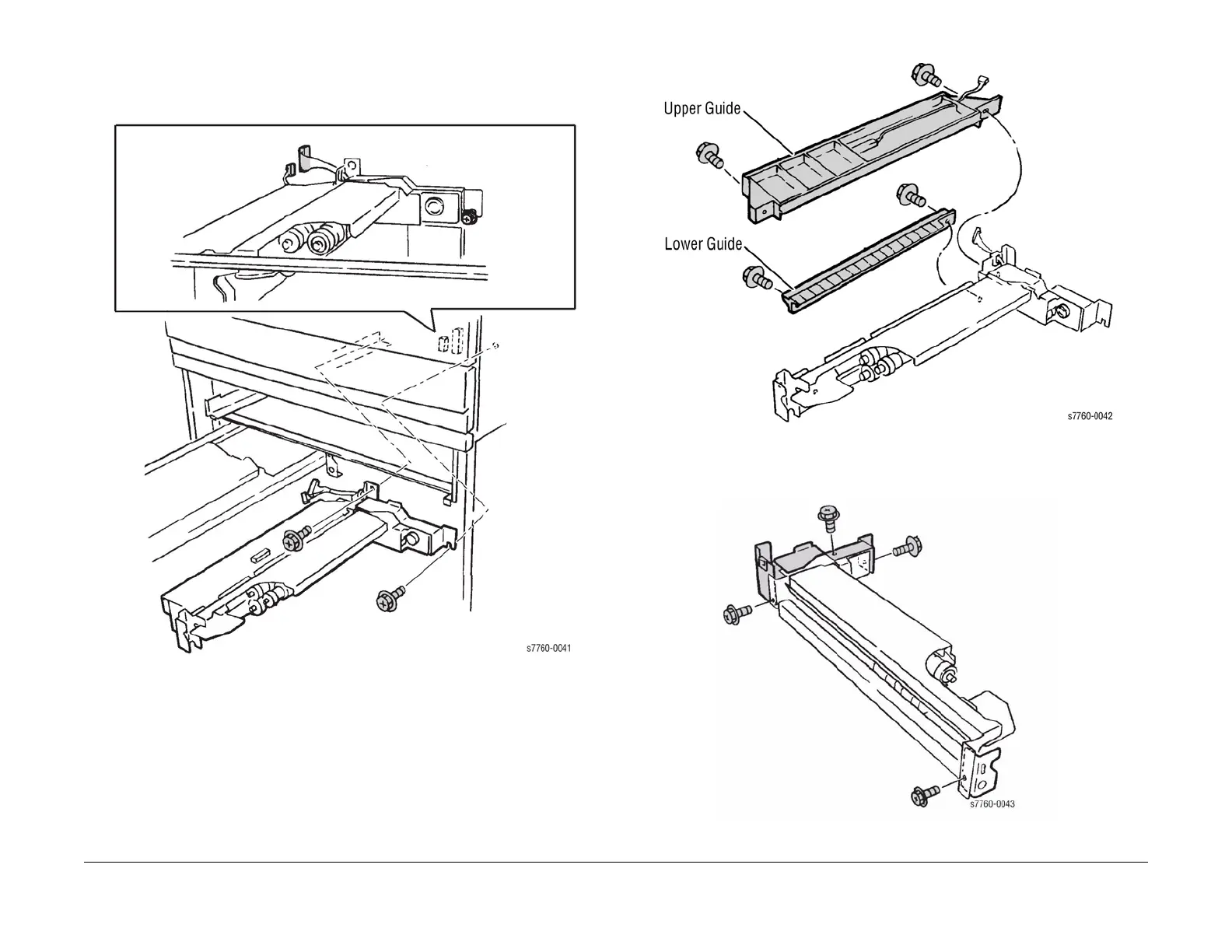

4. Removing Tray 5 Feeder Assembly (Figure 2).
a. Disconnect the wiring harness P/Js.
b. Remove the 2 screws holding the Feeder.
Figure 2 Removing Tray 4 Feeder Assembly
5. Removing Tray 5 Feeder Guides (Figure 3).
a. Remove the 2 screws and the Upper Guide.
b. Remove the 2 screws and Lower Guide.
Figure 3 Removing the Guides
6. Remove the 4 screws and the Brackets (Figure 4).
Figure 4 Removing Brackets
