Xerox Phaser 7760 Service Manual

January 2010
4-61
Phaser 7760 Color Laser Printer
REP 9.27
Repairs and Adjustments
Revised
d. Remove the 4 black screws securing the right-hand Lift Bracket to the Accumulator
Belt Frame and remove the Bracket.
e. Remove 1 screw securing the Accumulator to the rear frame and move the wiring
harness out of the way.

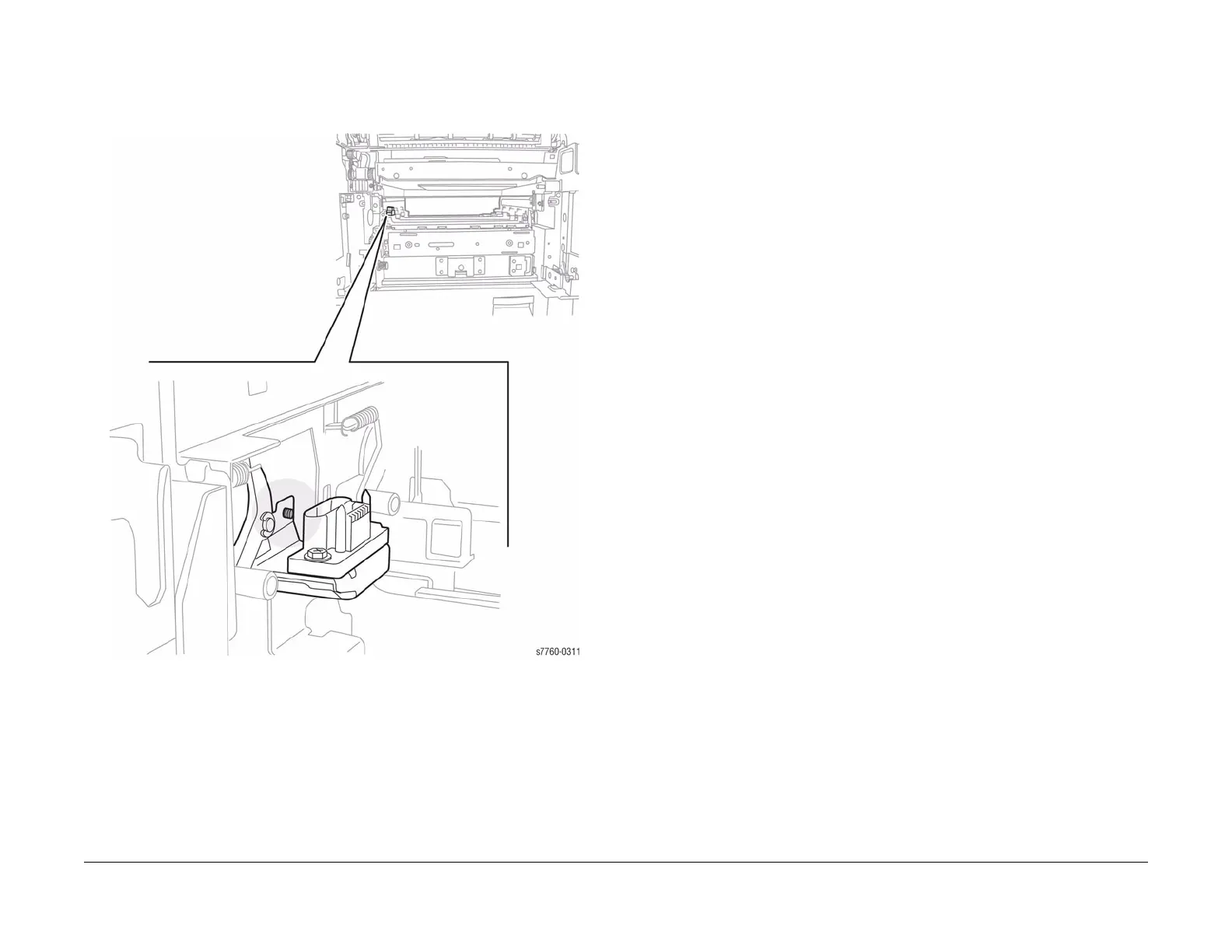

Figure 3 Screw Securing the Accumulator Belt Connector
f. Remove the 2 screws securing the First Bias Transfer Contacts to the rear frame and
move them out of the way.
g. Remove the Guide Studs on the front and rear of the Printer.
h. Unhook the Erase Lamps mounted on each Guide Rail and remove the Guide Rails
(REP 9.25).
i. Raise the IBT Cam Lever.
j. Lift the Accumulator Belt Frame Assembly as high as it goes and remove it from the
right side of the Printer.
