Xerox Phaser 8500 Service Manual

Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-11
Service Parts Disassembly

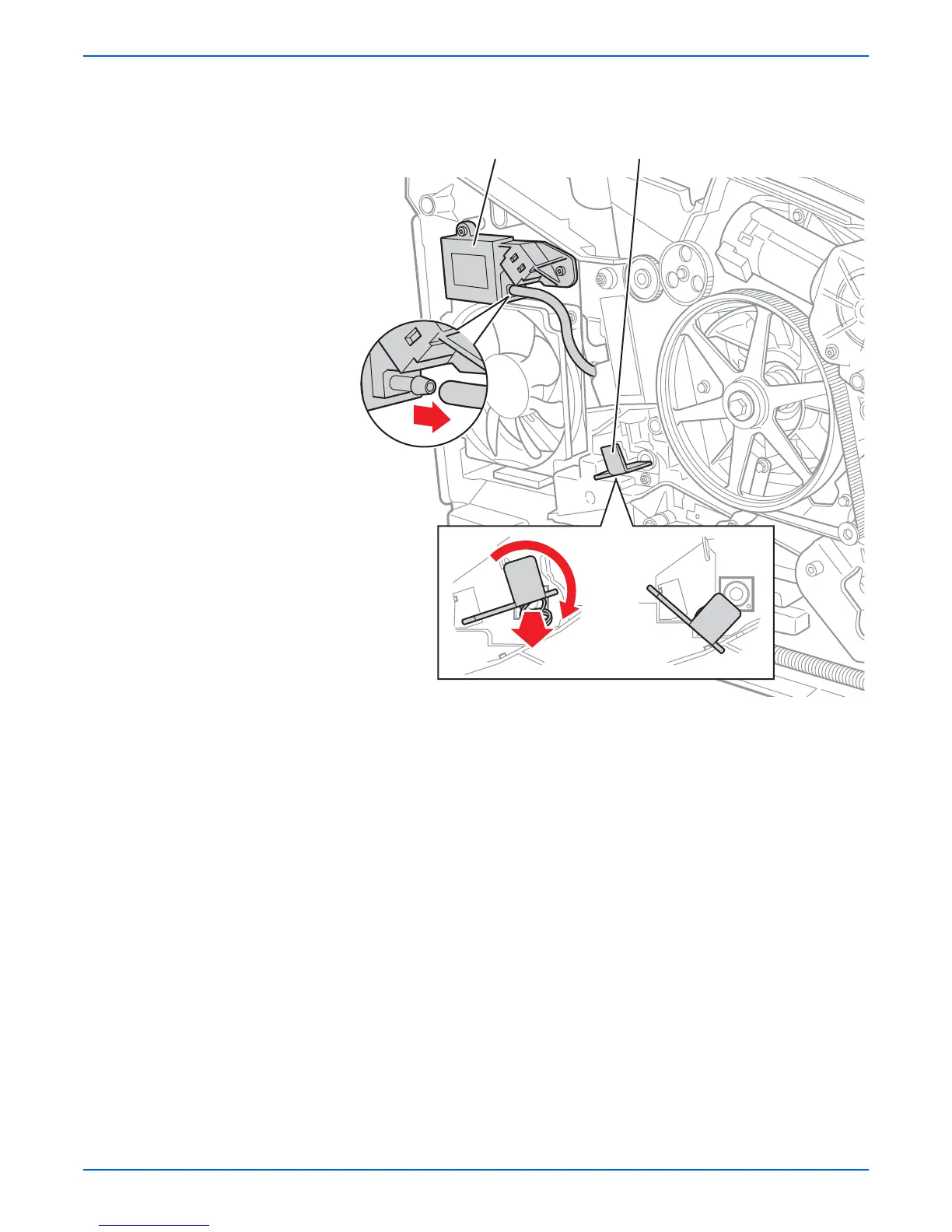

5. On the left side, pull the X-Axis Bias Spring Hook out slightly and shift to
the side (rotate down). Allow the hook to rest against the detents in the
frame.
6. Disconnect the air hose from the Purge Pump.
s8500-074
1. 2.
Bias Spring Hook
Purge Pump
