Loading Paper
Xerox WorkCentre 3550
User Guide
119

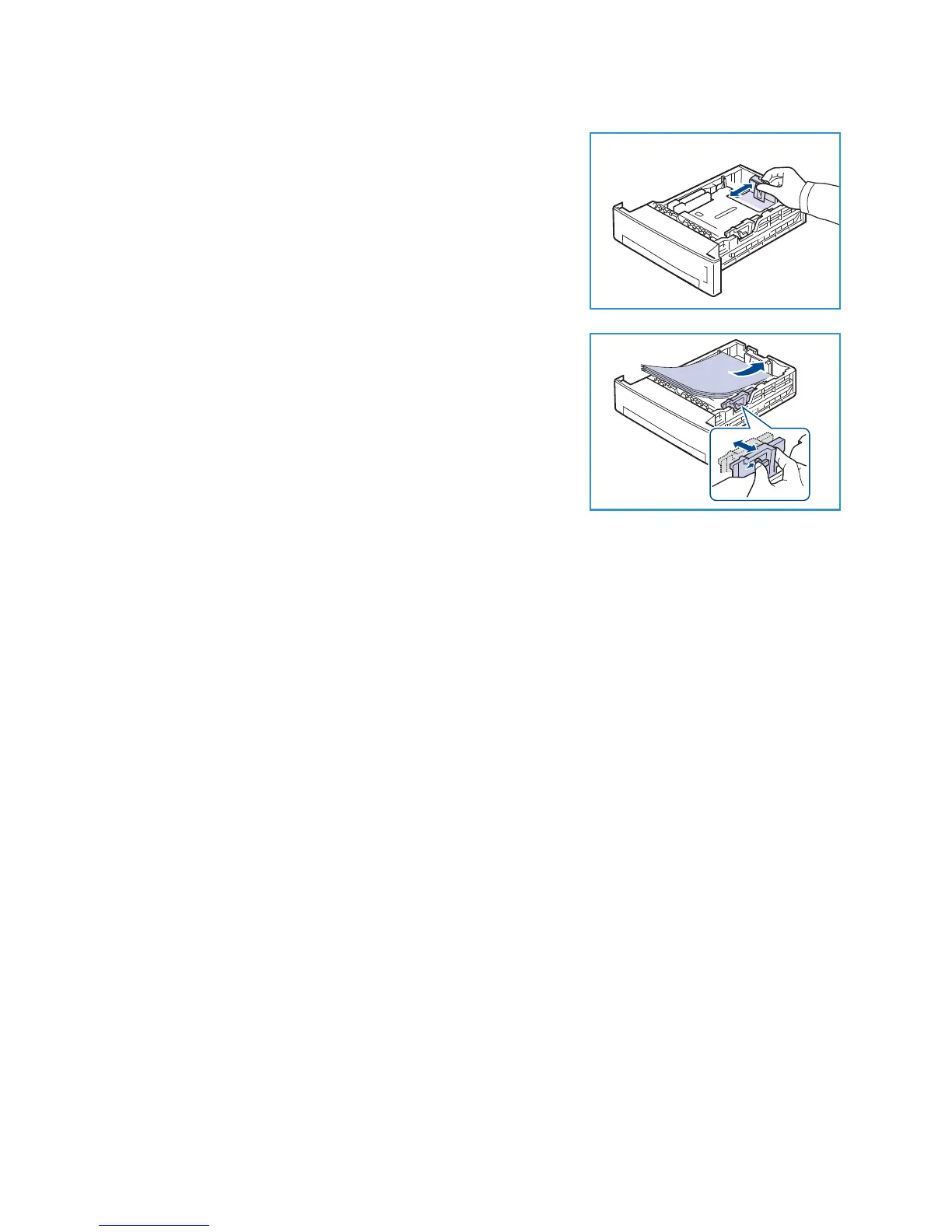

3. Squeeze the rear guide and move from the current position
and into the correct position for the current paper size. Make
sure the guide clicks into place.
4. Load paper into the tray. Do not fill above the 28lb (105g)
line at the rear of the tray.
5. Position the side guide by squeezing the lever and sliding it
towards the stack of paper, until it gently touches the side of
the stack.
6. Insert the paper tray into the machine.
7. After loading paper in the paper tray, set the paper size and
type using the control panel. Press OK to confirm the settings
or Stop to change the settings. These settings will apply to
Copy and Fax modes.
8. When printing from your PC, ensure you select the Select Paper button to specify the correct
paper size, color and type. Not confirming the paper details may result in printing delays. For
information about setting the paper type and size on the control panel, refer to Setting Paper Size
and Type on page 122.
Note: The settings made from the print driver override the settings on the control panel.
Using the Bypass Tray
The Bypass Tray is located on the front of your machine. It can be closed when not in use, making the
product more compact. Use the Bypass Tray to print transparencies, labels, envelopes or postcards in
addition to making quick runs of paper types or sizes that are not currently loaded in the paper tray.
When using the Bypass Tray for special media it may be necessary to use the Rear Door for the output.
For further information refer to Media Output Locations on page 19.
Acceptable print media is plain paper from 3.8" x 5.8" to 8.5" x 14" Legal (98 mm x 148 mm to 216 mm
x 356 mm) and weighing between 16 lb and 24 lb (60 g/m²
and 90 g/m²).

Xerox WorkCentre 3550 Specifications

General

Print technology	-
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Duplex printing mode	Auto
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Total number of input trays	1
Maximum number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	60 sheets
Custom media width	148 - 210 mm
Custom media length	216 - 356 mm
Paper tray media types	Heavy paper, Lightweight paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Letterhead, Plain paper, Recycled paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Paper tray media weight (imperial)	16 - 28 lbs
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Multi-Purpose Tray media weight (imperial)	16 - 43 lbs
Auto Document Feeder (ADF) media weight (imperial)	12 - 28 lbs
Internal memory	256 MB
Maximum internal memory	512 MB
Sound power level (standby)	39 dB
Sound pressure level (printing)	55 dB
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Security algorithms	802.1x RADIUS
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional x64
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	10 s
Faxing	Mono faxing
Fax memory	7 MB
Modem speed	33.6 Kbit/s
Fax forwarding to	E-mail, FTP, Fax, PC, SMB
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Product color	Blue, Grey
Market positioning	Business
Scan to	E-mail, FTP, OCR, PC, SMB, USB
Scanner type	ADF scanner
Maximum scan area	216 x 356 mm
Scan speed (black)	26 ppm
Scan speed (color)	8 ppm
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	300 x 300 DPI
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	60 W
Power consumption (printing)	600 W
Power consumption (PowerSave)	20 W
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	619 mm
Package width	676 mm
Package height	696 mm
Package weight	29700 g
Certification	UL, CE, FCC

Weight and Dimensions

Depth	488 mm
Width	582 mm
Height	553 mm
