2.2.4.5 Solenoid/Clutch Left Energized Failure FIP
Status Indicator RAPs
Version 1.0
2.2.4.5 Solenoid/Clutch Left Energized Failure FIP
Procedure

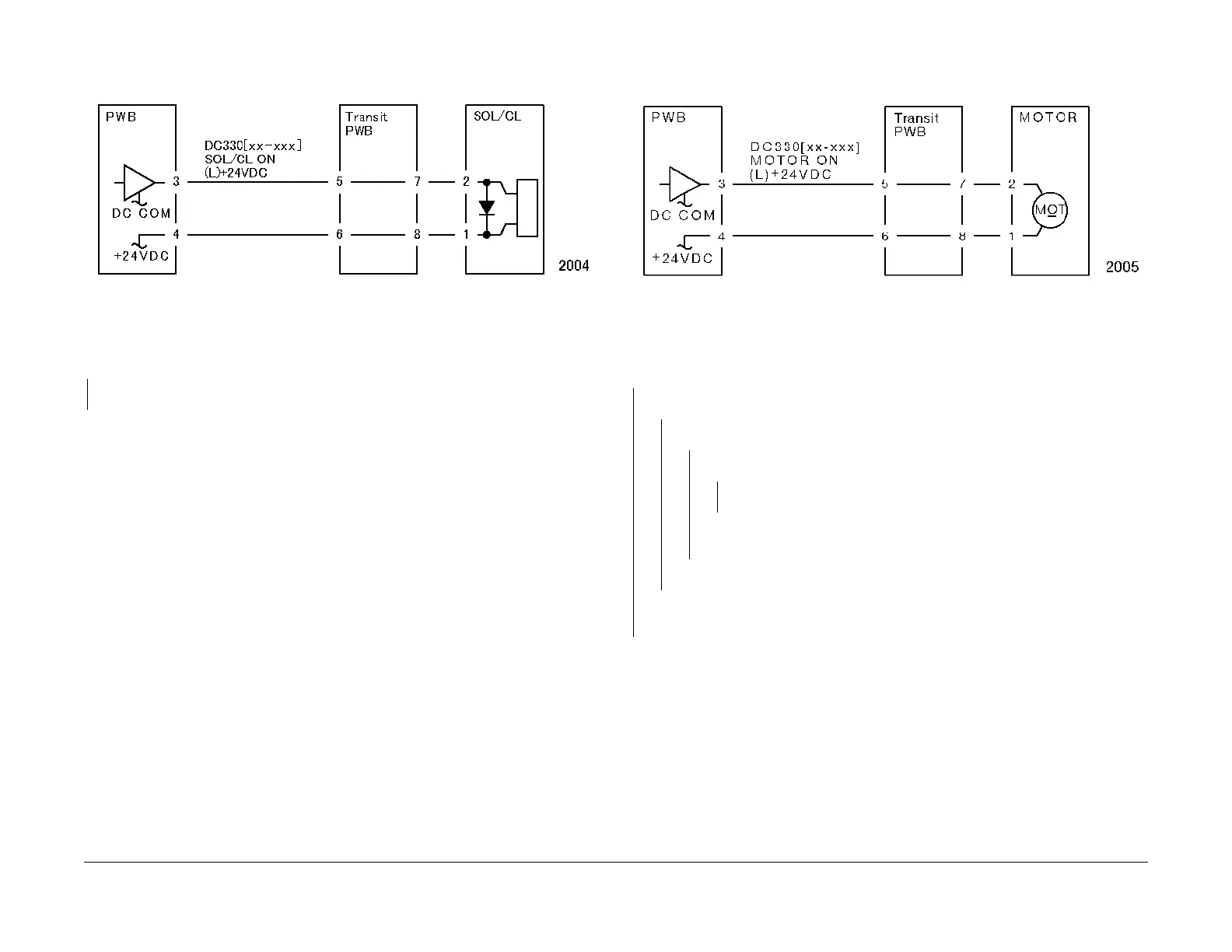

Figure 1 2004
Turn OFF the power.
Disconnect the PWB connector. Is the resistance between the connector pin-3 and the
frame 10Ohm or less?
YN
Replace the PWB.
Check the connection between the connector pin-3 and the solenoid/clutch pin-2 for a short cir-
cuit.
If no problems are found, replace the solenoid/clutch.
2.2.4.6 Motor Does Not Rotate Failure FIP
Procedure
Figure 1 2005
NOTE: Before performing this FIP, ensure that the motor is not locked or loaded.
Enter DC330[XXX-XXX] and turn it ON.
Is +24VDC measured between the PWB pin-3 (+) and the GND (-) ?
YN
Is +24VDC measured between the motor pin-2 (+) and the GND (-) ?
YN
Is +24VDC measured between the motor pin-1 (+) and the GND (-) ?
YN
Is +24VDC measured between the PWB pin-4 (+) and the GND (-) ?
YN
Replace the PWB.
Check the connection between the PWB pin-4 and the motor pin-1 for an open
circuit and poor contact.
Replace the motor.
Check the connection between the PWB pin-3 and the motor pin-2 for an open circuit and
poor contact.
Replace the PWB.
