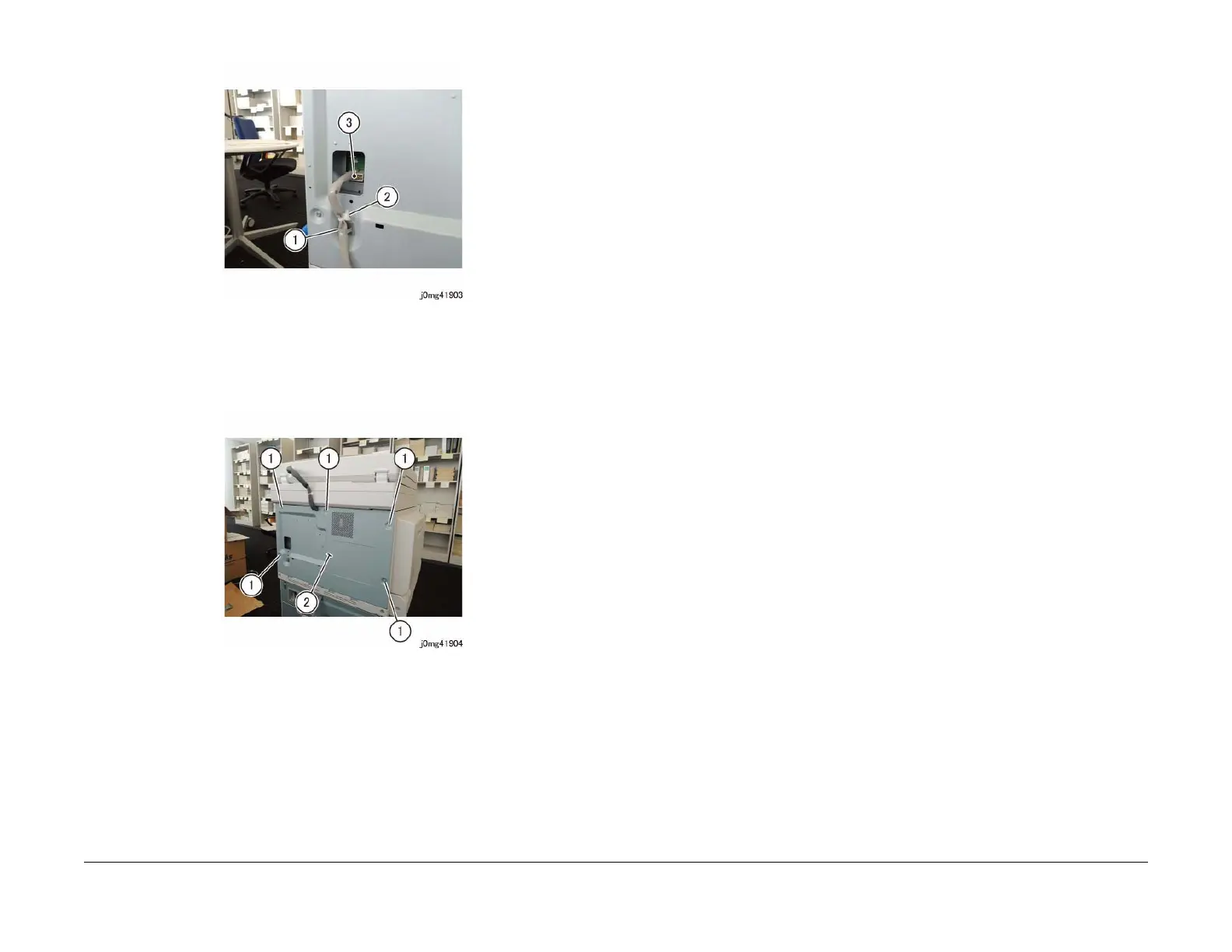

Figure 2 j0mg41903
3. Remove the Rear Cover. (Figure 3)
a. Remove the screw (x5).
b. Remove the Rear Cover.
Figure 3 j0mg41904
Replacement
1. To install, carry out the removal steps in reverse order.
