06/2014
6-6
WC 5022/5024
6.1.5 Installation Space
Version 1.0
General
6.1.5 Installation Space
6.1.5.1 Installation Space
Sufficient space must be made available around the machine for performing activities such as
loading paper, refilling, retrieving printouts, replacing consumables, clearing Jams, mainte-
nance inspection, and etc., as well as to ensure that the machine's performance can be main-
tained.
• Width: The max. width with the MSI Tray pulled out is 921 mm.
• Depth: The depth with the Tray pulled out is 960 mm. (Including the Front CoverÅj
The installation space includes the following working space.
• Width: 80 mm added to the left and 100 mm added to the right
• Depth: 400 mm added to the front (for pulling out of Tray) and 100 mm added to the back
(for air circulation)
• Width: The max. width with the MSI Tray pulled out is 921 mm.
• Depth: The depth with the Tray pulled out is 975 mm. (Including the Front CoverÅj
The installation space includes the following working space.
• Width: 80 mm added to the left and 100 mm added to the right
• Depth: 400 mm added to the front (for pulling out of Tray) and 100 mm added to the back
(for air circulation)
6.1.5.2 Occupied Space
The occupied space may include a fully extended Bypass Tray and Output Tray.
6.1.5.4 Detailed Installation Spaces

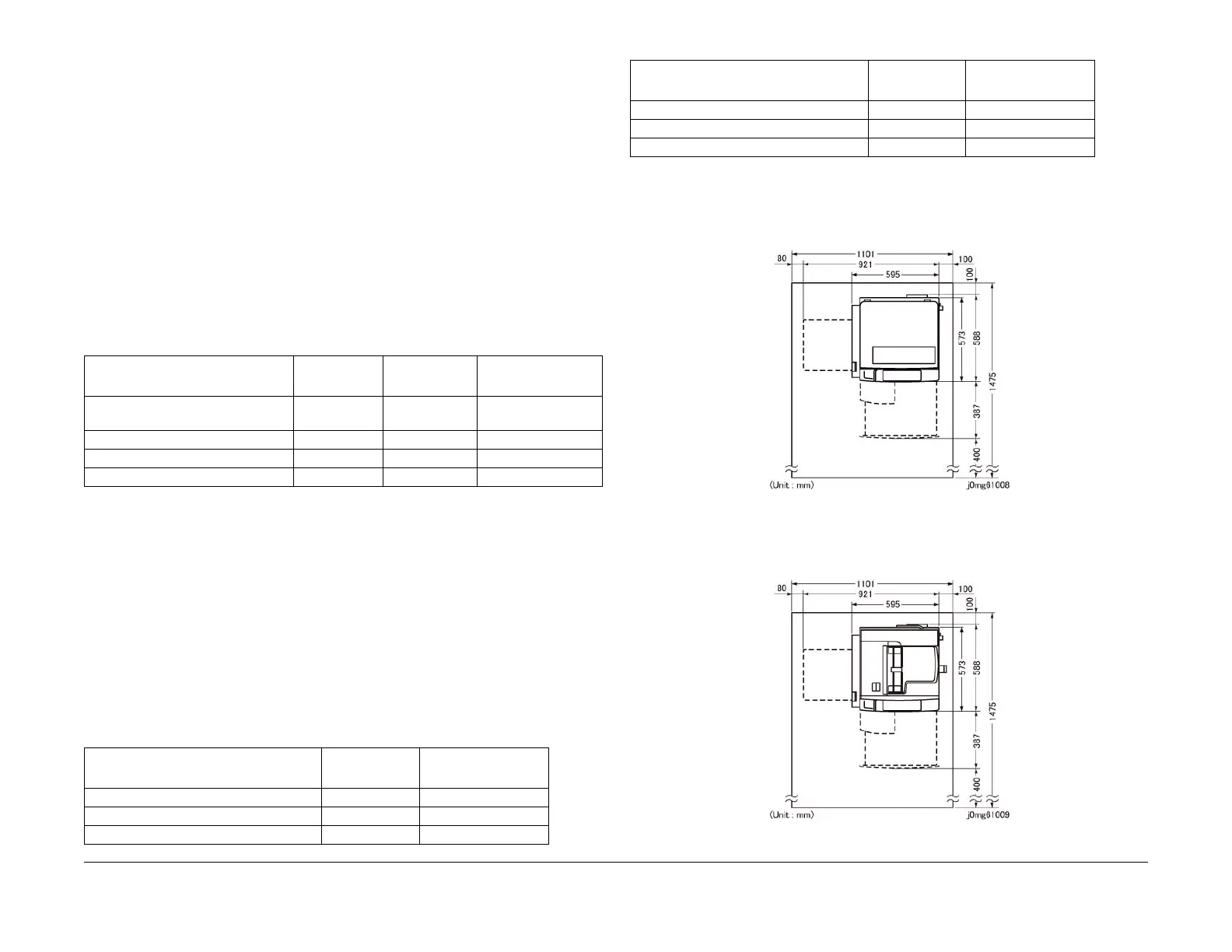

1. Main Unit (w/ DADF)
• Installation Space (W x D): 1101 mm x 1475 mm (Figure 1)
Figure 1 j0mg61008
2. Main Unit (w/ DADF) + 1TM
• Installation Space (W x D): 1101 mm x 1475 mm (Figure 2)
Figure 2 j0mg61009
Table 1
Configuration Width (mm) Depth (mm)
Area (square
meters)
Main Unit (w/ Platen Cover or w/
DADF)
1101 1475 1.62
Main Unit + 1TM 1101 1475 1.62
Main Unit + 1TM + Stand 1101 1475 1.62
Main Unit + 1TM + 2TM 1101 1475 1.62
Table 2
Configuration Depth (mm)
Area (square
meters)
Main Unit + Platen Cover 573 0.54
Main Unit + Platen Cover + 1TM 573 0.54
Main Unit + DADF 573 0.54
Main Unit + DADF + 1TM 573 0.54
Main Unit + DADF + 1TM + Stand 573 0.54
Main Unit + DADF + 1TM + 2TM 573 0.54
Table 2
Configuration Depth (mm)
Area (square
meters)
