06/2014
6-143
WC 5022/5024
6.8.5.3 V.8 Operation / Auto Send
General
Version 1.0

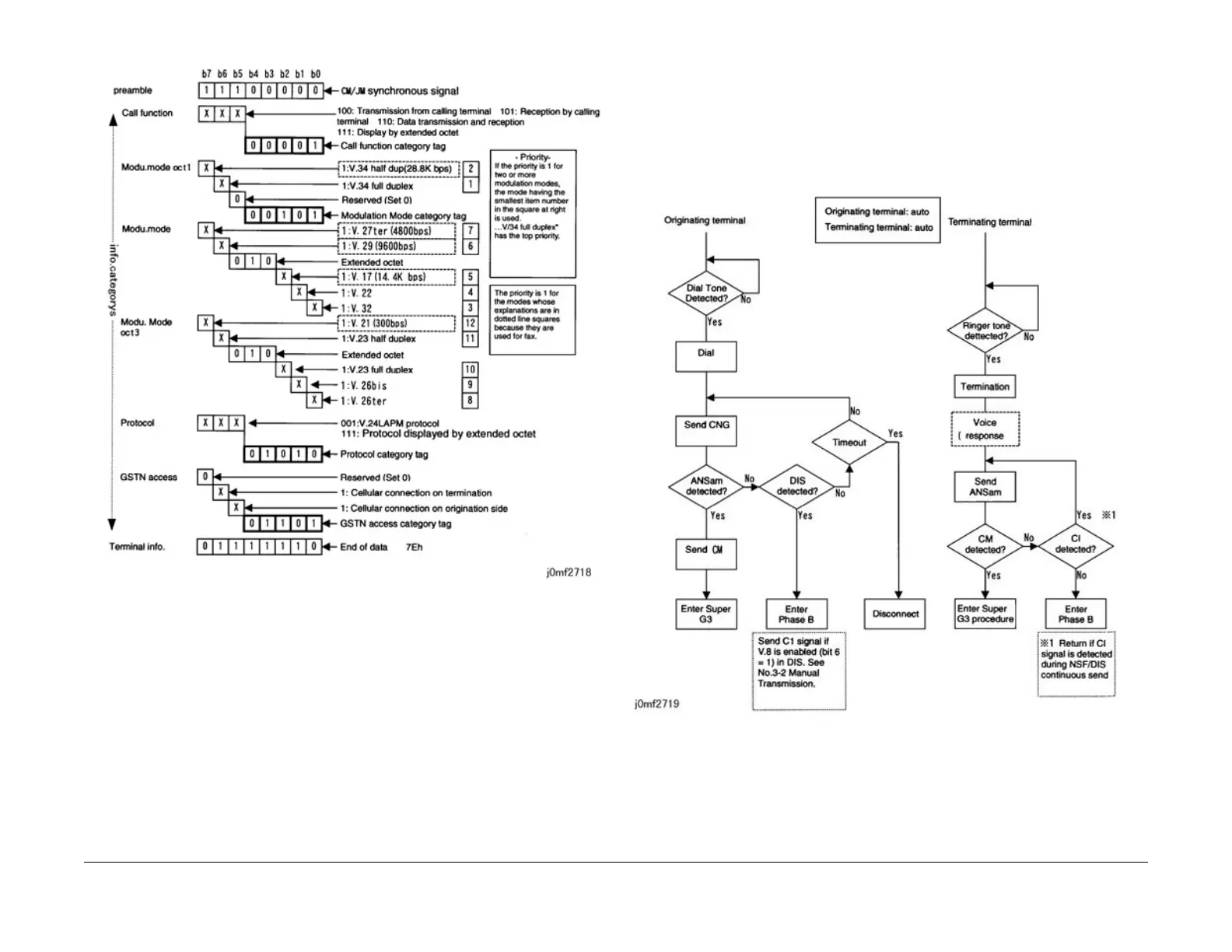

Figure 2 j0mf2718
6.8.5.3 V.8 Operation / Auto Send
[Super G3 Fax] can communicate with conventional Fax in standards other than V.34 (28.8K),
such as V.17 (14.4K) and V.29/V.27ter (9600/4800). Communication procedure is selected fol-
lowing the flow below based on the capability of the remote station/detected signal.
Below is the flow when either the incoming or outgoing terminal or both has [Super G3 Fax]
capability and Auto Send takes place at the outgoing terminal.
Figure 1 j0mf2719
To Next Page
