06/2014
7-5
WC 5022/5024
7.1.2 Plug/Jack Location
Wiring Data
Version 1.0
7.1.2 Plug/Jack Location

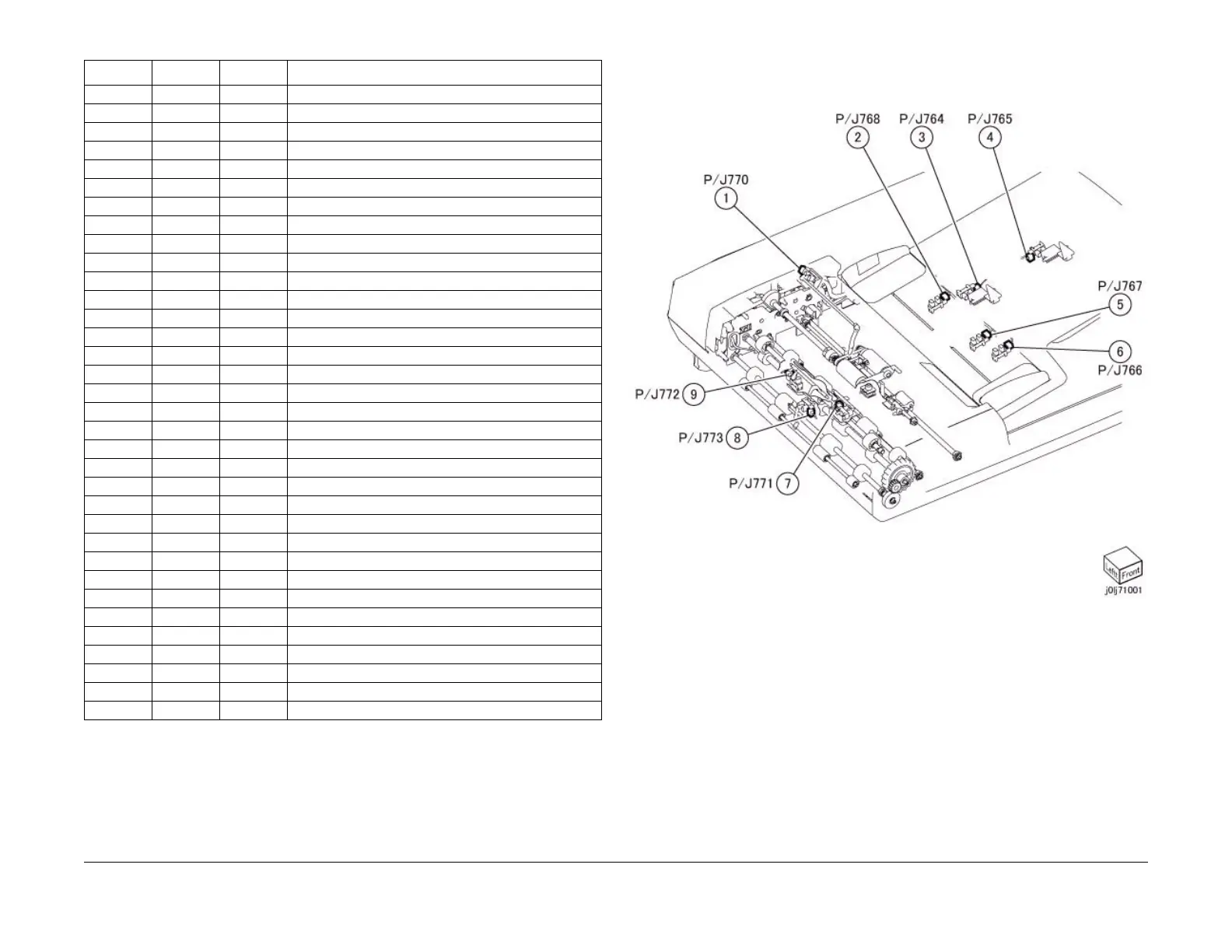

Figure 1 DADF 1 of 2 (j0lj71001)
P/J766 1 6 DADF Tray Set Guide Sensor 3
P/J767 1 5 DADF Tray Set Guide Sensor 2 (BLU)
P/J768 1 2 DADF Tray Set Guide Sensor 1
P/J770 1 1 DADF Document Set Sensor
P/J771 1 7 DADF Invert Sensor
P/J772 1 9 DADF Pre Regi. Sensor
P/J773 1 8 DADF Regi. Sensor
P/J774 2 14 DADF Open Sensor
P/J777 2 13 DADF Feed Motor
P/J780 2 17 Feed Clutch
P/J781 2 12 T/A Clutch
J802 14 11 FAX PWB (LINE)
J804 14 8 FAX PWB (TEL)
P/J805 14 7 FAX PWB (FAX Speaker)
P/J812C 9 6 STM Left Cover Switch
P/J813 12 11 2TM Left Cover Switch
P/J820 12 4 Tray 3 Paper Size Switch (2TM)
P/J820C 9 4 Tray 2 Paper Size Switch (1TM)
P/J821 12 7 Feed Out Sensor 3 (2TM)
P/J821C 9 7 Feed Out Sensor 2 (1TM)
P/J822 13 5 2TM Takeaway Roll Clutch
P/J822C 10 4 STM Take Away Roll Clutch
P/J824 12 5 Tray 4 Paper Size Switch (2TM)
P/J825 12 6 Feed Out Sensor 4 (2TM)
P/J826 13 6 2TM Takeaway Motor
P/J826C 10 2 STM Take Away Motor
P/J841 13 4 Connector (2TM)
P/J841C 10 3 Connector (1TM)
P/J842 12 10 Connector (2TM)
P/J2011 5 2 SOS PWB
P/J7001 3 6 CCD PWB
P/J7002 3 5 LED Lamp PWB
F1 2 15 DADF Feeder Cover Interlock Switch
F2 2 16 DADF Feeder Cover Interlock Switch
Table 1 Plug/Jack Location List
P/J Fig Item Remarkes (where to Connect)
To Next Page
