ENG
ENGINE ASSEMBLY AND ADJUSTMENT
4-42
4. Bleed the air:
• autolubrication pump
Refer to chapter 3, “BLEEDING OF AIR
FROM THE AUTOLUBRICATION PUMP”
section.

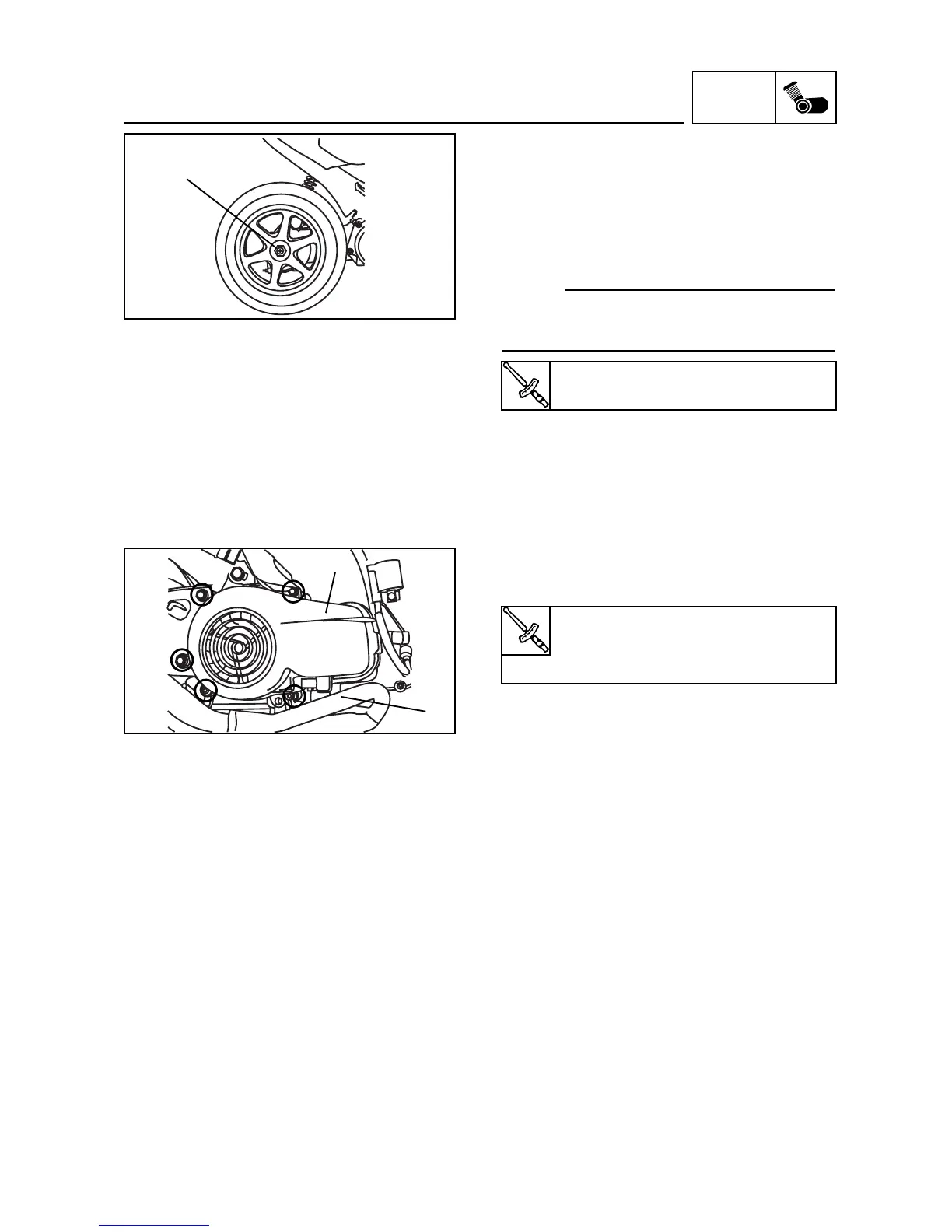

5. Tighten:
• rear wheel axle nut
NOTE:
When the rear wheel axle nut is tightened,
apply the rear brake.
6. Install:
• muffler
• fan cover (CS50 only)
• coolant hose (on water pump cover)
(CS50Z only)
Refill coolant and bleed the air.
Refer to chapter 5.
7. Apply:
• transmission oil
Refer to “CHANCHING TRANSMISSION
OIL” in chapter 3.
8. Adjust:
• free play of brake levers
Refer to “ADJUSTMENT OF FREE PLAY OF
FRONT/REAR BRAKE LEVER” in chapter 3.
• free play of throttle cable
Refer to “ADJUSTMENT OF FREE PLAY OF
ACCELERATOR CABLE” in chapter 3.
9. Install:
• helmet box
• center cover
Refer to “REAR BODYWORK, MUD-
GUARD” in chapter 3.
Rear wheel axle bolt
125 Nm (12.5 m • kg)
Bolt (muffler)
26 Nm (2.6 m • kg)
Bolt (exhaust pipe)
9 Nm (0.9 m • kg)
