SPECIAL TOOLS
1-4
EAS00027
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use
only the appropriate special tools; this will help prevent damage caused by the use of inappropria-
te tools or improvised techniques.
When placing an order, refer to the list provided below to avoid any mistakes.

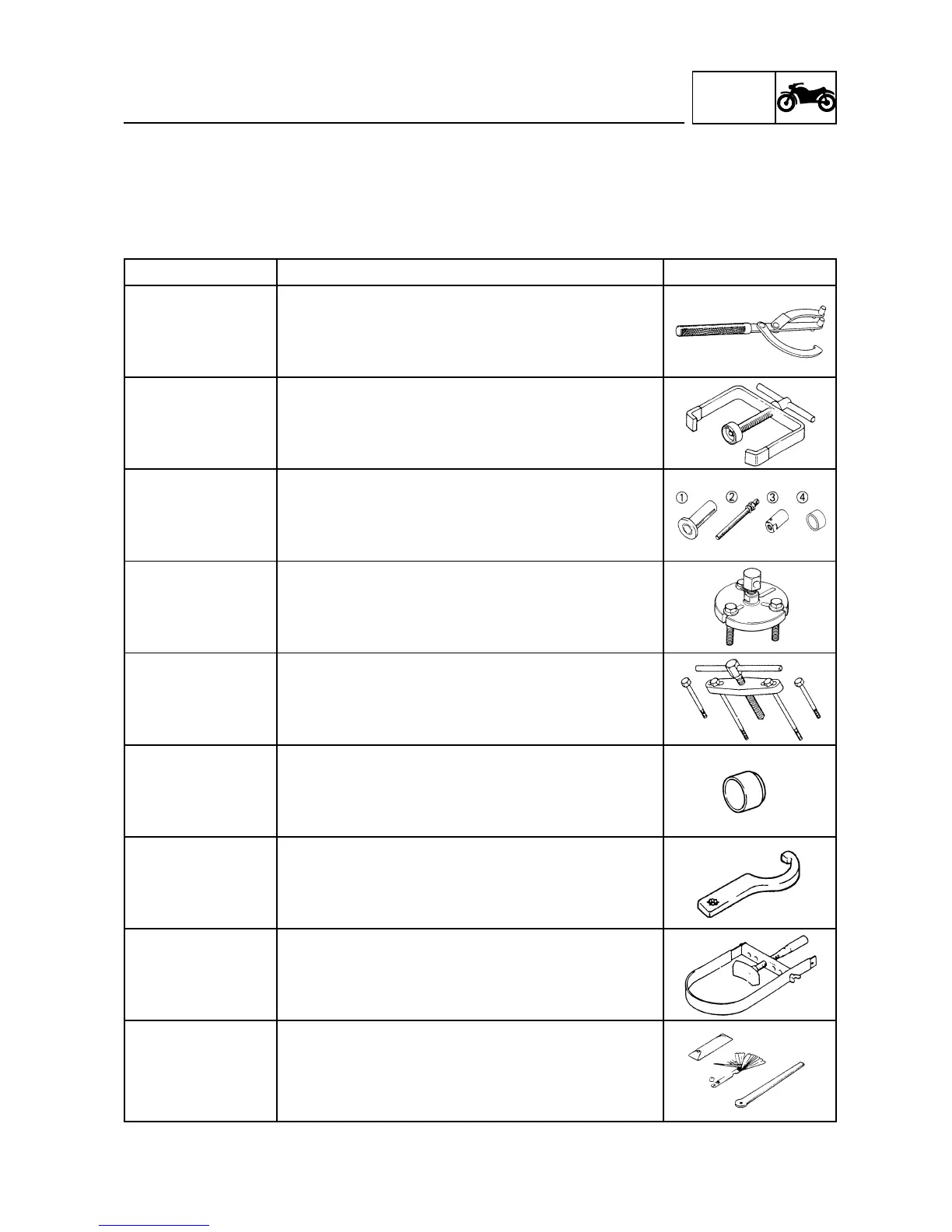

Tool No. Tool name / Usage Illustration
90890-01235 Rotor holding tool
This tool is used to remove the flywheel
magneto.
90890-01337 Clutch spring bracket
This tool is used to remove the clutch nut
while holding the compression spring.
90890-01274 Container of the crankshaft installer a
-01275 Bolt of the crankshaft installer b
-01277 Adapter c, Spacer d
-01288 These tools are used to install the
crankshaft.
90890-01362 Flywheel puller
. For removing the flywheel.
90890-01135 Crankcase separation tool
This tool is used to remove the
crankshaft or separate the crankcase.
90890-01384 Oil seal guide
Protects the edge of the oil seal during
the installation of the secondary sliding
pulley wheel.
90890-01403 Ring nut wrench
This tool is used to loosen and tighten
the steering ring nut.
90890-01701 Pulley bracket
This tools is used to disassemble and
assemble the secondary pulley.
90890-03079 Thickenss gauge
This tool is used to measure the clearance.
