SPEC
CONVERSION TABLE /
GENERAL TIGHTENING TORQUES SPECIFICATIONS
2-7
EAS00029
GENERAL TIGHTENING TORQUE
SPECIFICATIONS
This chart specifies tightening torques for
standard fasteners with a standard ISO thread
pitch. Tightening torque specifications for
special components or assemblies are provi-
ded for each chapter of this manual. To avoid
warpage, tighten multi-fastener assemblies in
a crisscross pattern and progressive stages
until the specified tightening torque is
reached. Unless otherwise specified, tighte-
ning torque specifications require clean, dry
threads. Components should be at room
temperature.

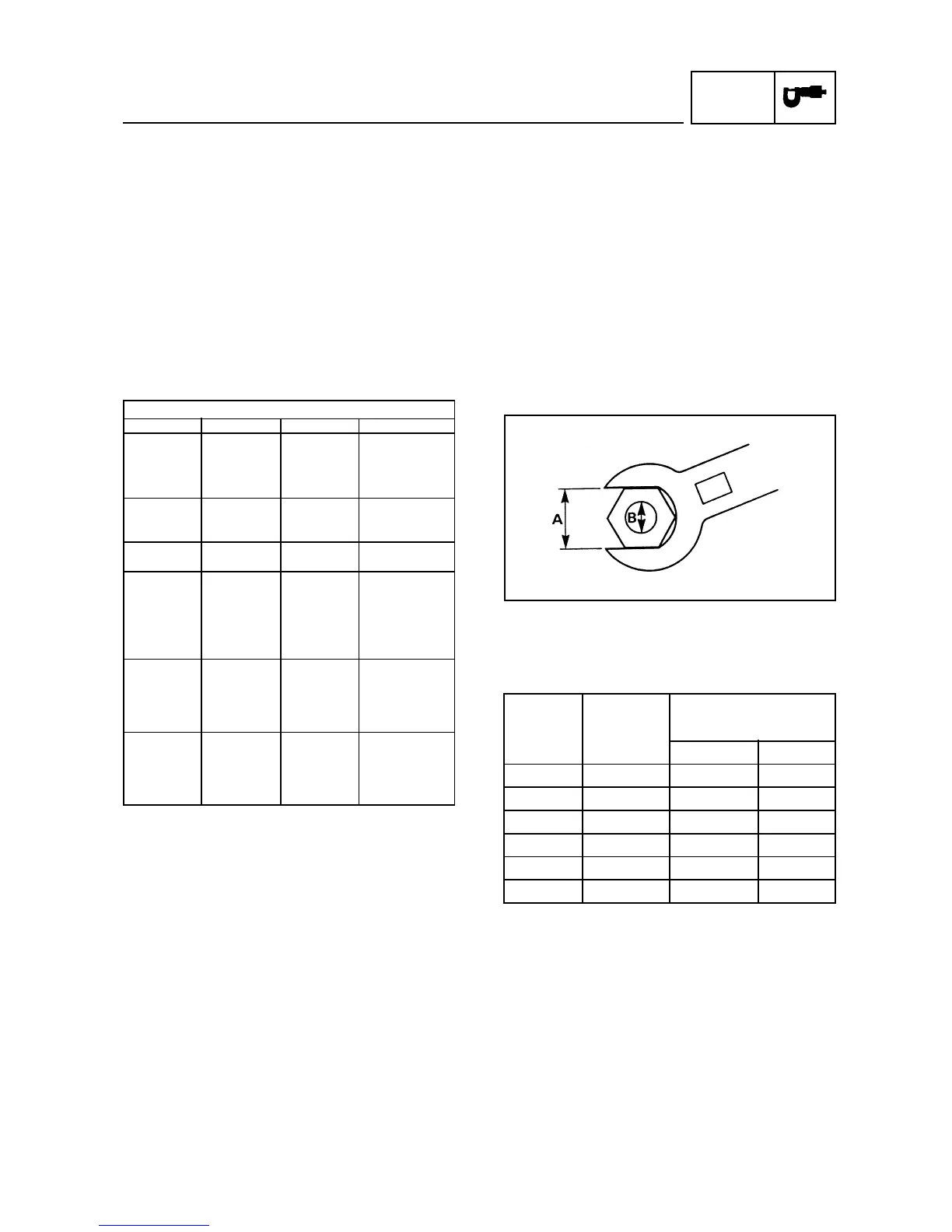

A: Width across flats
B: Thread diameter
AB
General tightening
(Nut) (Bolt)
torques
Nm m • kg
10 mm 6 mm 6 0.6
12 mm 8 mm 15 1.5
14 mm 10 mm 30 3.0
17 mm 12 mm 55 5.5
19 mm 14 mm 85 8.5
22 mm 16 mm 130 13.0
EAS00028
CONVERSION TABLE
All specification data in this manual are listed
in SI and METRIC UNITS.
Use this table to convert METRIC unit data to
IMPERIAL unit data.
Ex.
METRIC MULTIPLIER IMPERIAL
** mm x 0.03937 = ** in
2 mm x 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
m•kg 7.233 ft•lb
Tightening m•kg 86.794 in•lb
Torque cm•kg 0.0723 ft•lb
cm•kg 0.8679 in•lb
Weight kg 2.205 lb
g 0.03527 oz
Speed km/h 0.6214 mi/h
km 0.6214 mi
m 3.281 ft
Distance m 1.094 yd
cm 0.3937 in
mm 0.03937 in
cc (cm
3
) 0.03527 oz (IMP liq.)
Volume, cc (cm
3
) 0.06102 cu•in
Capacity L (liter) 0.8799 qt (IMP liq.)
L (liter) 0.2199 gal (IMP liq.)
kg/mm 55.997 lb/in
Misc. kg/cm
2
14.2234 psi (lb/in
2
)
Centigrade 9/5 + 32 Fahrenheit (°F)
(°C)
