CHAS
FRONT BRAKE
7-11
EAS00596

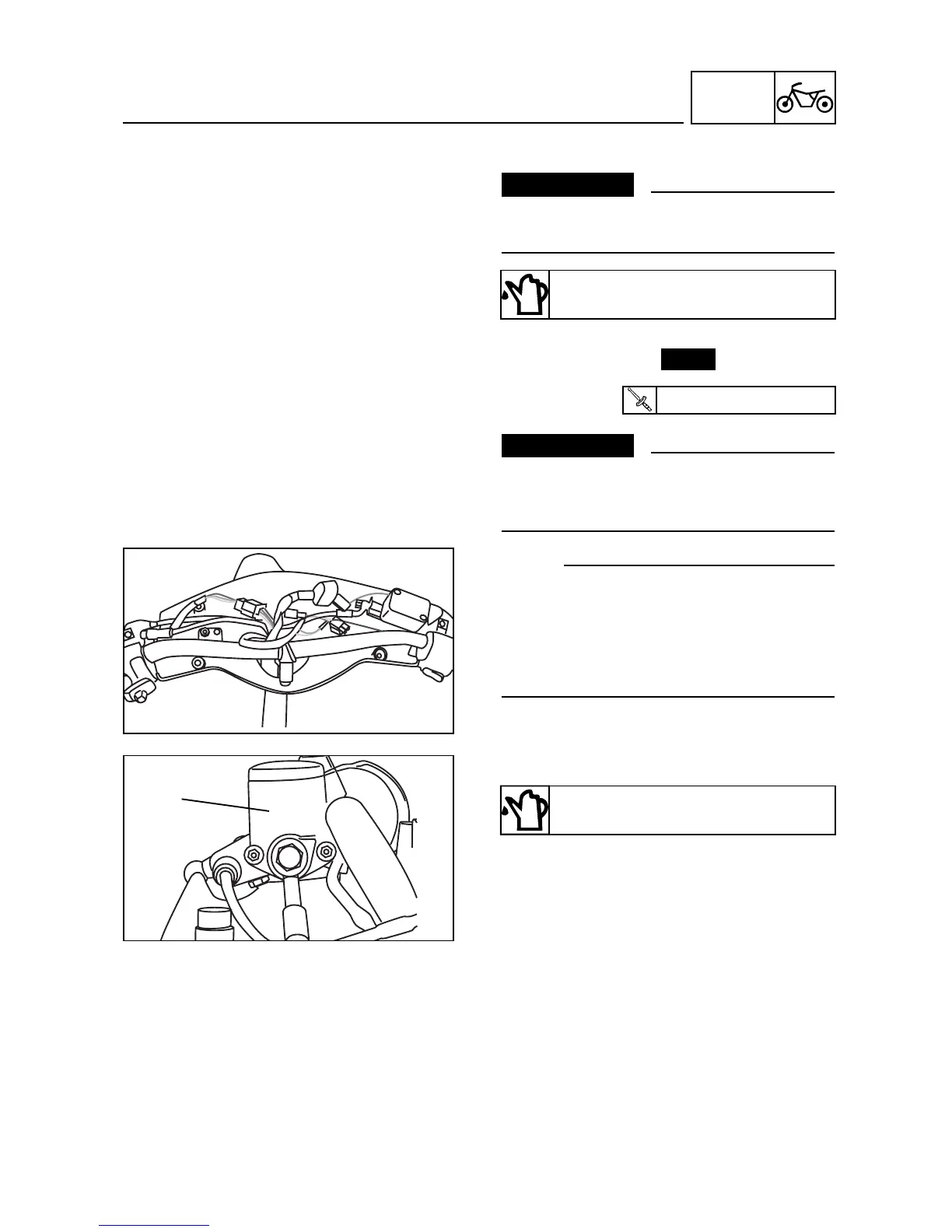

INSTALLING THE BRAKE HOSE
ss
WARNING
• Never use solvents on internal brake
components.
1. Install:
• copper washers
• brake hose
• union bolt
ss
WARNING
Proper brake hose routing is essential to
insure safe scooter operation. Refer to
“CABLE ROUTING”.
NOTE:
• While holding the brake hose, tighten the
union bolt.
• Turn the handlebar to the left and right to
make sure the brake hose does not touch
other parts (e.g., wire harness, cables,
leads). Correct if necessary.
2. Fill:
• brake master cylinder reservoir
(with the specified amount of the recom-
mended brake fluid)
Recommended brake fluid
DOT #4
23 Nm (2.3 m • kg)
New
Recommended brake fluid
DOT #4
To Next Page
