CHAS
FRONT WHEEL
7-6
EAS00542

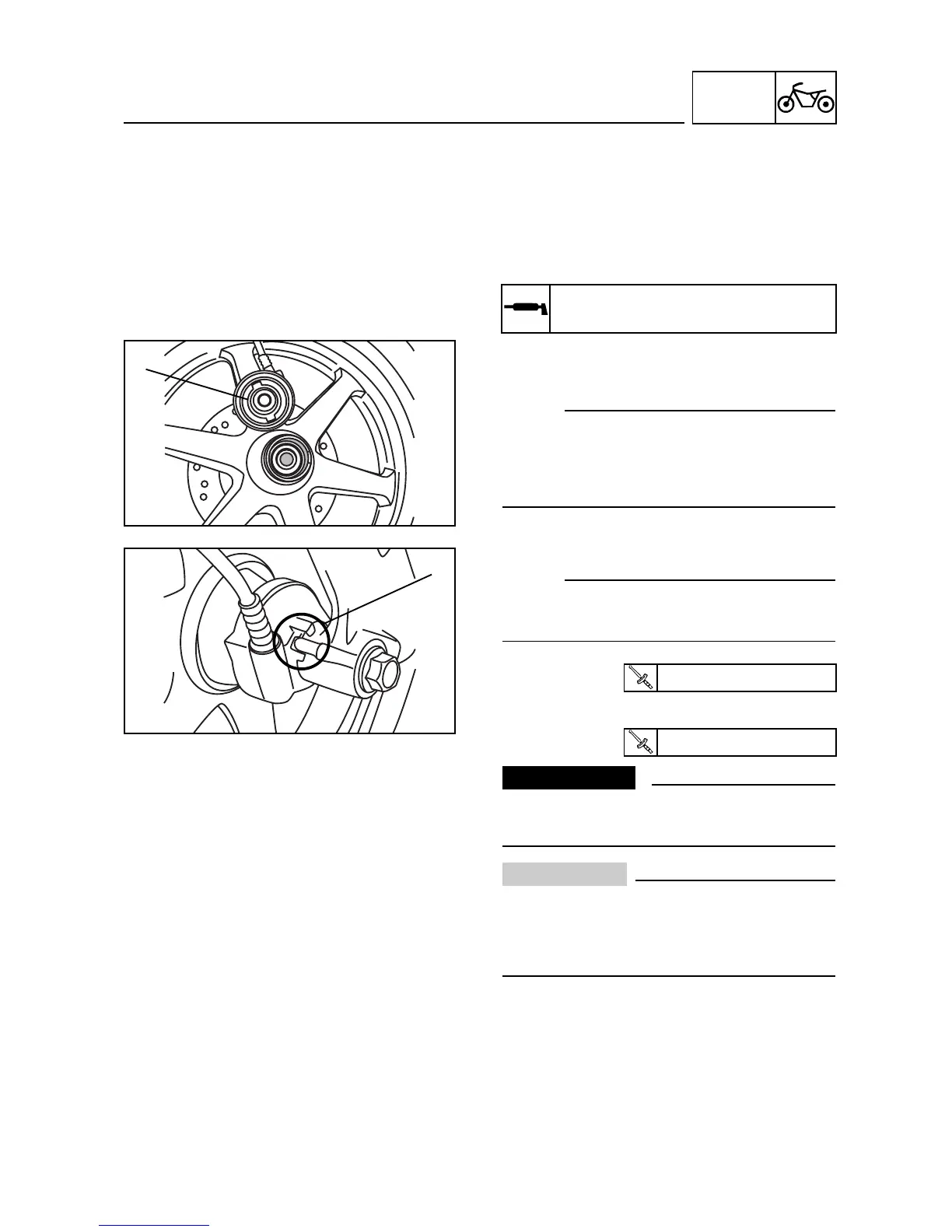

INSTALLING THE FRONT WHEEL
1. Lubricate:
• wheel axle
• wheel bearings
• oil seal lips
• speedometer drive gear
• speedometer driven gear
2. Install:
• speed sensor unit
NOTE:
Make sure the speed sensor unit and the
wheel hub are installed with the two projec-
tions engaged into the flat surface of the
wheel.
3. Install:
• front wheel
NOTE:
Make sure the slot in the speed sensor unit fits
over the stopper on the outer tube .
4. Tighten:
• wheel axle
• brake caliper bolts
ss
WARNING
Make sure the brake hose is routed pro-
perly.
CAUTION:
Before tightening the wheel axle nut, push
down hard on the handlebar several times
and check if the front fork rebounds smo-
othly.
Recommended lubricant
Lithium-soap-based grease
47.5 Nm (4.75 m • kg)
23 Nm (2.3 m • kg)
To Next Page
