Yamaha CS50 - Starting Circuit Cut-Off System Operation

ELEC
ELECTRIC STARTING SYSTEM
8-13
LOCK
OPEN
OFF
CHECK
ON
R
R
R
B
R
Br
M
L
/
W
G
/
Y
EAS00756

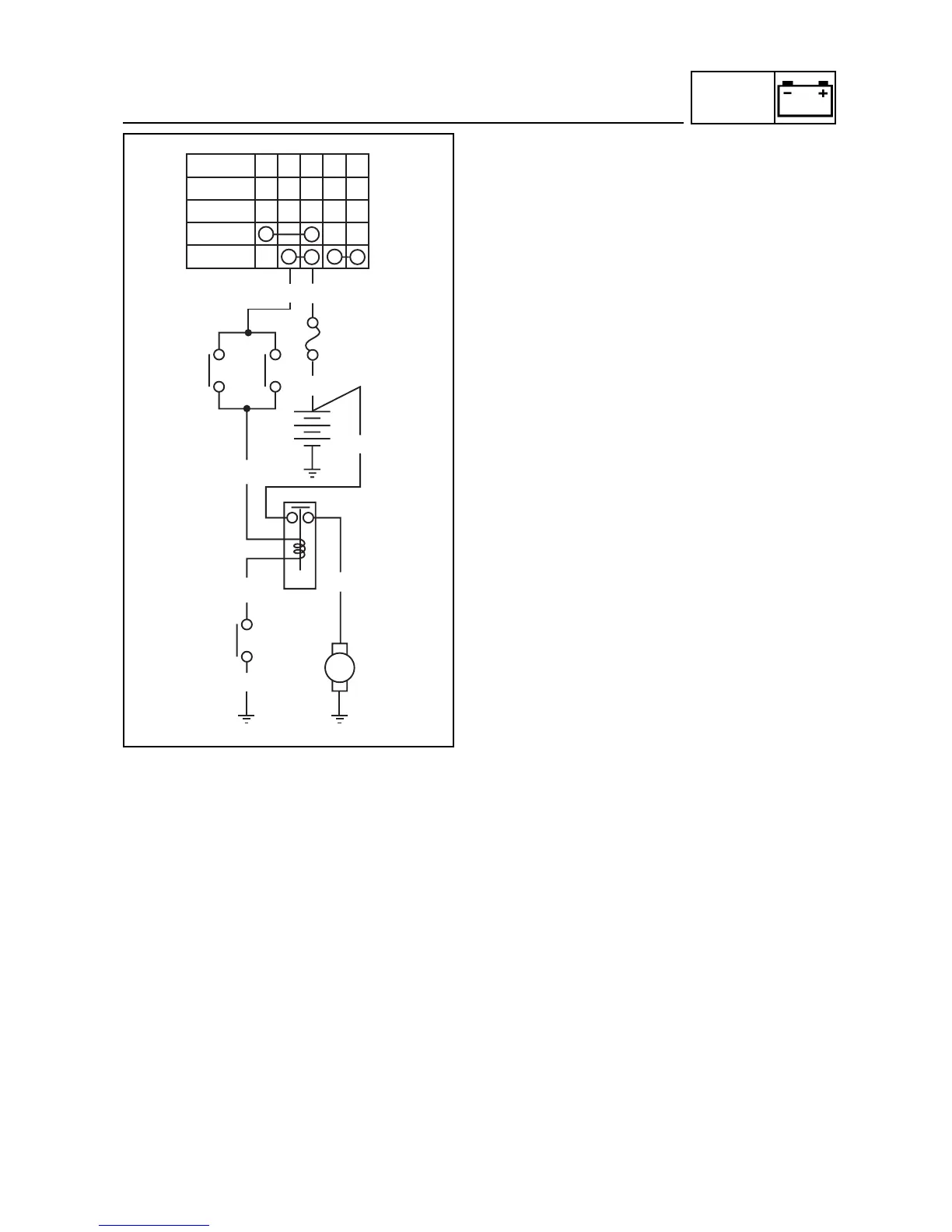

STARTING CIRCUIT CUT-OFF SYSTEM
OPERATION
If the main switch is set to “ON” the starter
motor can only operate if at least one of the
following conditions is met:
• The front brake switch is ON.
• The rear brake switch is ON.
When at least one of the above conditions has
been met the starter relay is closed and the
engine can be started by pressing the starter
switch.
 Battery
 Fuse
 Main switch
 Front brake switch
 Rear brake switch
 Starter relay
 Start switch
 Starter motor








