ENGINE ASSEMBLY AND ADJUSTMENT
4-41

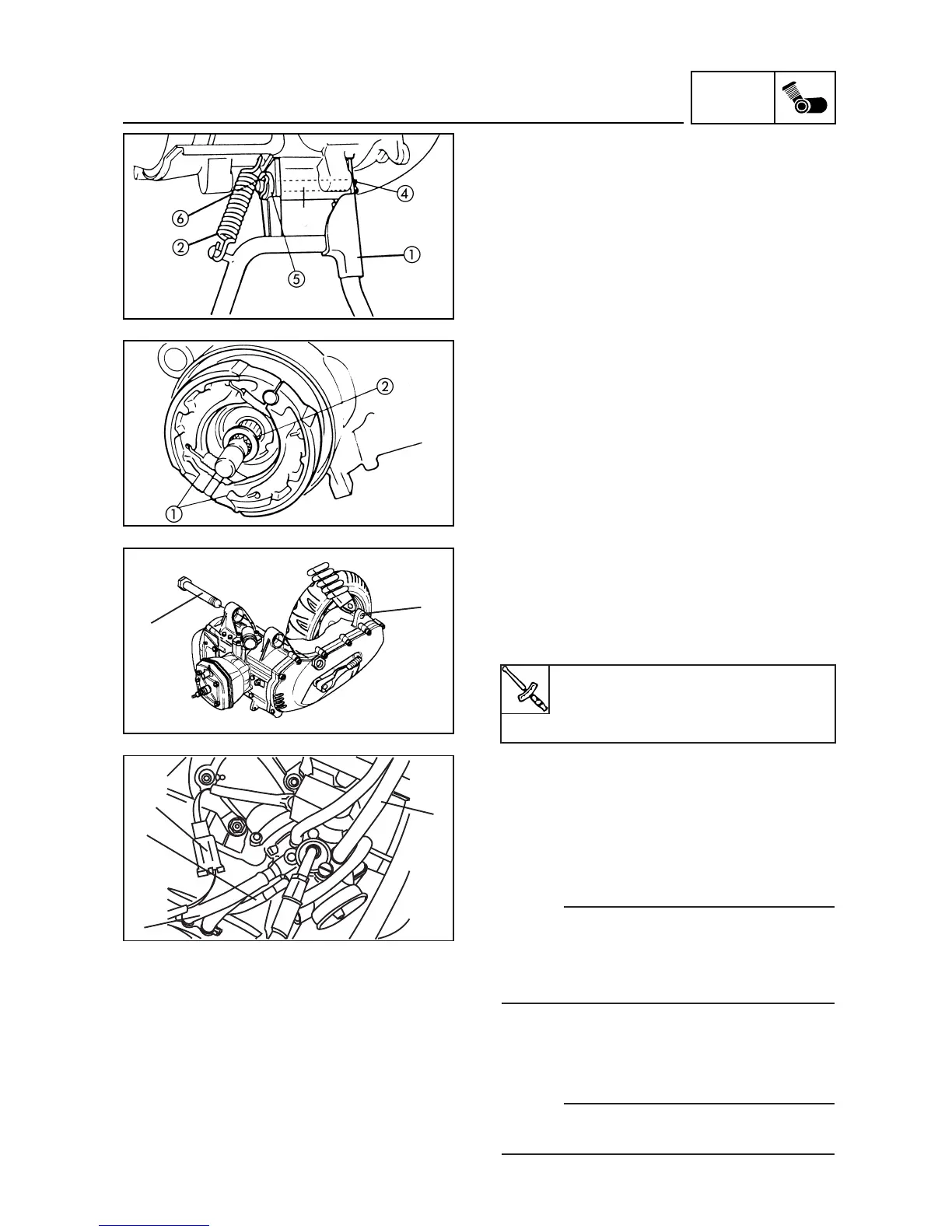

6. Install:
• central stand 
• spring 
• axle 
• clasp 
• rubber washer 
• strap loop 
7. Install:
• brake shoes 
• flat washer 
• rear wheel
• rear brake cable
ENGINE REMOUNTING
When the engine is being assembled, reverse
the removal procedure.
1. Install:
• engine assembly bolt 
• rear shock absorber bolt  (lower)
2. Install:
• carburetor
• oil supply pipe 
• fuel pipe 
• autochoke lead 
• air filter box assembly
• water pipes of carburator  (CS50Z only)
NOTE:
• Align the projection of the carburetor with
the projections of the carburator joint.
• Before installing the oil supply pipe, fill it
with oil.
3. Install:
• oil pipe (oil tank)
• head cylinder coolant pipe (CS50Z only)
• spark plug cap
NOTE:
Pass the oil supply pipe and the oil pipe
through as shown.
Engine mounting bolt
84 Nm (8.4 m • kg)
Rear shock absorber bolt (lower)
18 Nm (1.8 m • kg)







Yamaha CS50 Specifications

General

Fuel Capacity	4.5 liters
Fuel System	Carburetor
Cooling	Air-cooled
Transmission	Automatic
Starting System	Kick start
Brakes	Drum brakes (front and rear)
