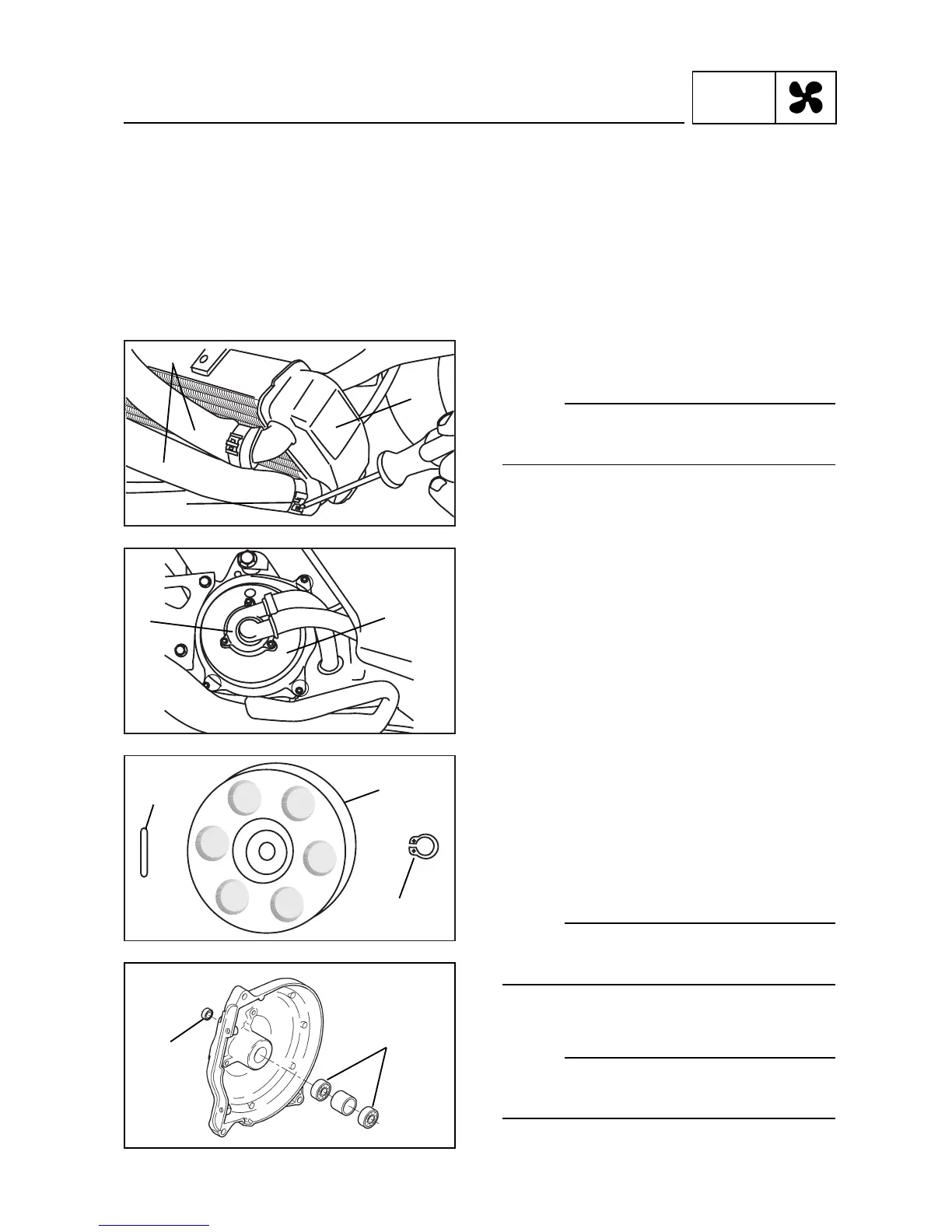

COOL
RADIATOR AND WATER PUMP
5-2
REMOVING THE RADIATOR
1. Remove:
front upper cowling
front middle cowling
front lower cowling
Refer to “FRONT COWLING AND FOO-
TREST” in chapter 3.
2. Drain:
coolant (from cooling system)
Refer to “CHANGING THE COOLANT” in
chapter 3.
3. Remove:
• hose clamp
NOTE:
Remove the hose clamp with a thin flatted-
head screwdirver.
4. Remove:
radiator hoses
radiator
EAS00470
REMOVING THE WATER PUMP
1. Drain:
coolant (from cooling system)
Refer to “CHANGING THE COOLANT” in
chapter 3.
2. Remove:
water pump cover
crankcase cover (right)
3. Remove:
circlip
water pump drive pulley
pin
impeller
4. Remove:
• bearings
NOTE:
Remove the bearing and oil seal from the out-
side of the crankcase cover (right).
5. Remove:
• water pump seal
NOTE:
Remove te water pump seal from the inside of
the crankcase cover (right)
