REAR BODYWORK, MUDGUARD

3-3

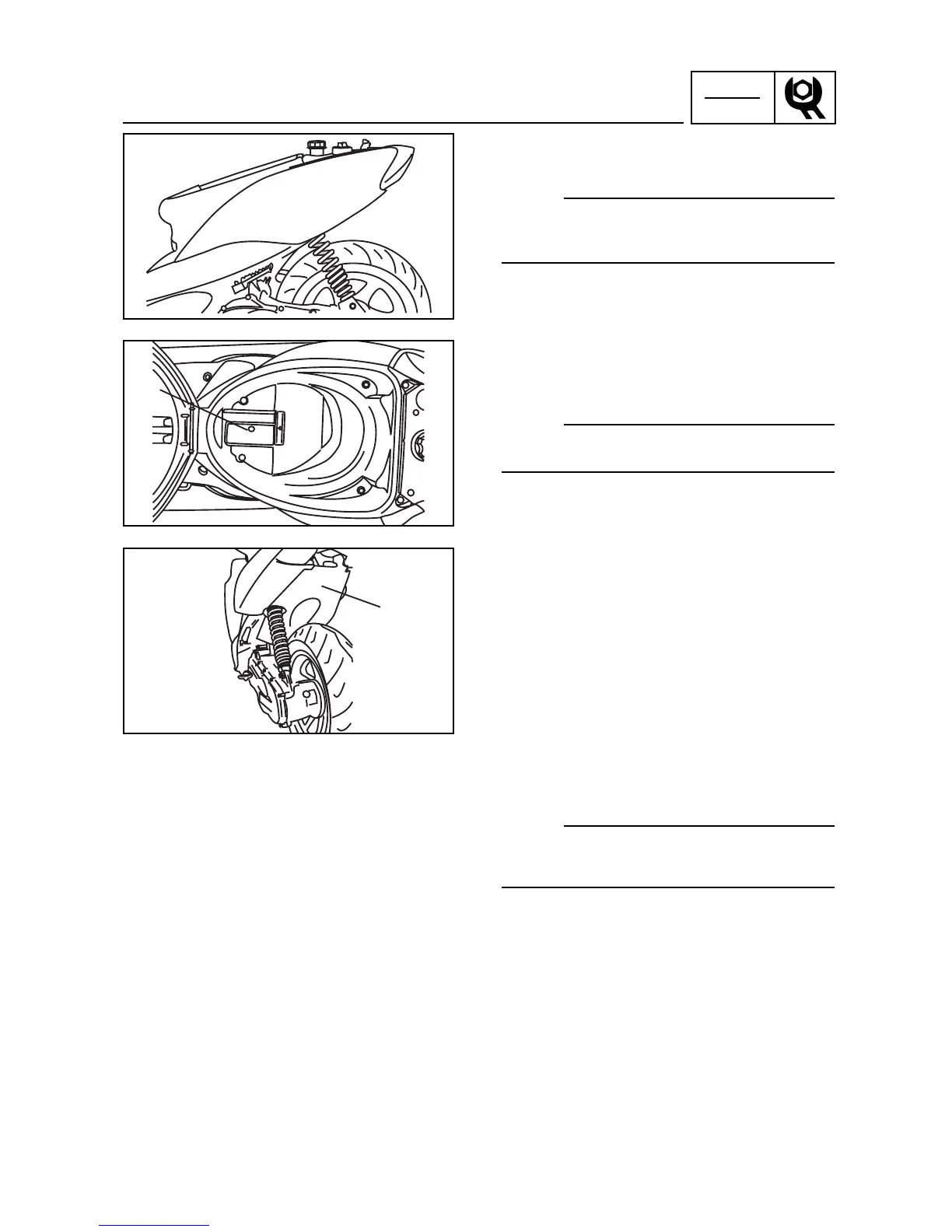

5. Remove:

• side covers (4 bolts)

NOTE:

Remove carefully the hook between side cover

and tail light.

6. Remove:

• battery cover , leads and battery

• oil tank fixing bolt

NOTE:

Fix the oil tank to the frame with a band.

• helmet box

7. Remove:

• rear mudguard  (4 bolts)

INSTALLATION

Reverse the removal process.

NOTE:

After installing all plastic parts, check that all

hooks are properly attached.


