CHECKING THE REAR BRAKE SHOES/
CHECKING THE BRAKE FLUID LEVEL
3-19
EAS00126

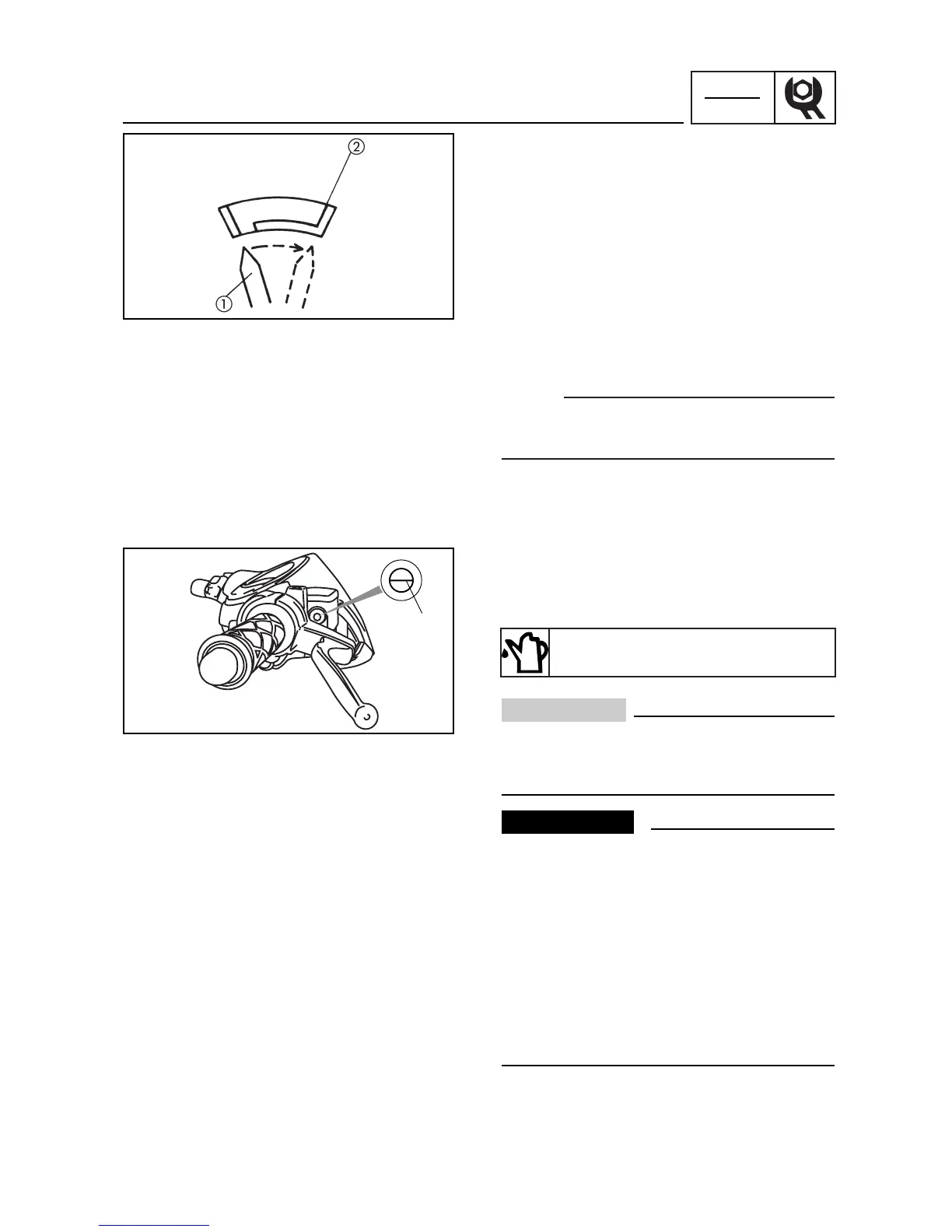

CHECKING THE REAR BRAKE SHOES
1. Activate the brake lever
2. Check:
• wear indicator
Indicator on wear limit line
Replace
the brake shoes.
EAS00116
CHECKING THE BRAKE FLUID LEVEL
NOTE:
Place the scooter upright when inspecting the
fluid level.
1. Check:
• brake fluid level.
The brake fluid level is below the minimum
level line
Refill up to correct level.
CAUTION:
The fluid may corrode painted surfaces or
plastic parts. Always clean any spilt fluid
immediately.
ss
WARNING
• Only use fluid of the designated quality.
Otherwise the rubber seals may deterio-
rate due to leakages and poor performan-
ce of the brakes.
• Refill with the same type of fluid. The mix-
ture of fluids may cause a damaging che-
mical reaction which may cause the poor
performance of the brakes.
• Take care not to let water enter the pump
while it is being filled. The water will lower
the boiling point of the fluid significantly
and may cause a steam blockage.
MIN
Recommended fluid:
DOT #4
