Yamaha CS50 User Manual

CHAS
FRONT BRAKE
7-7
EAS00576

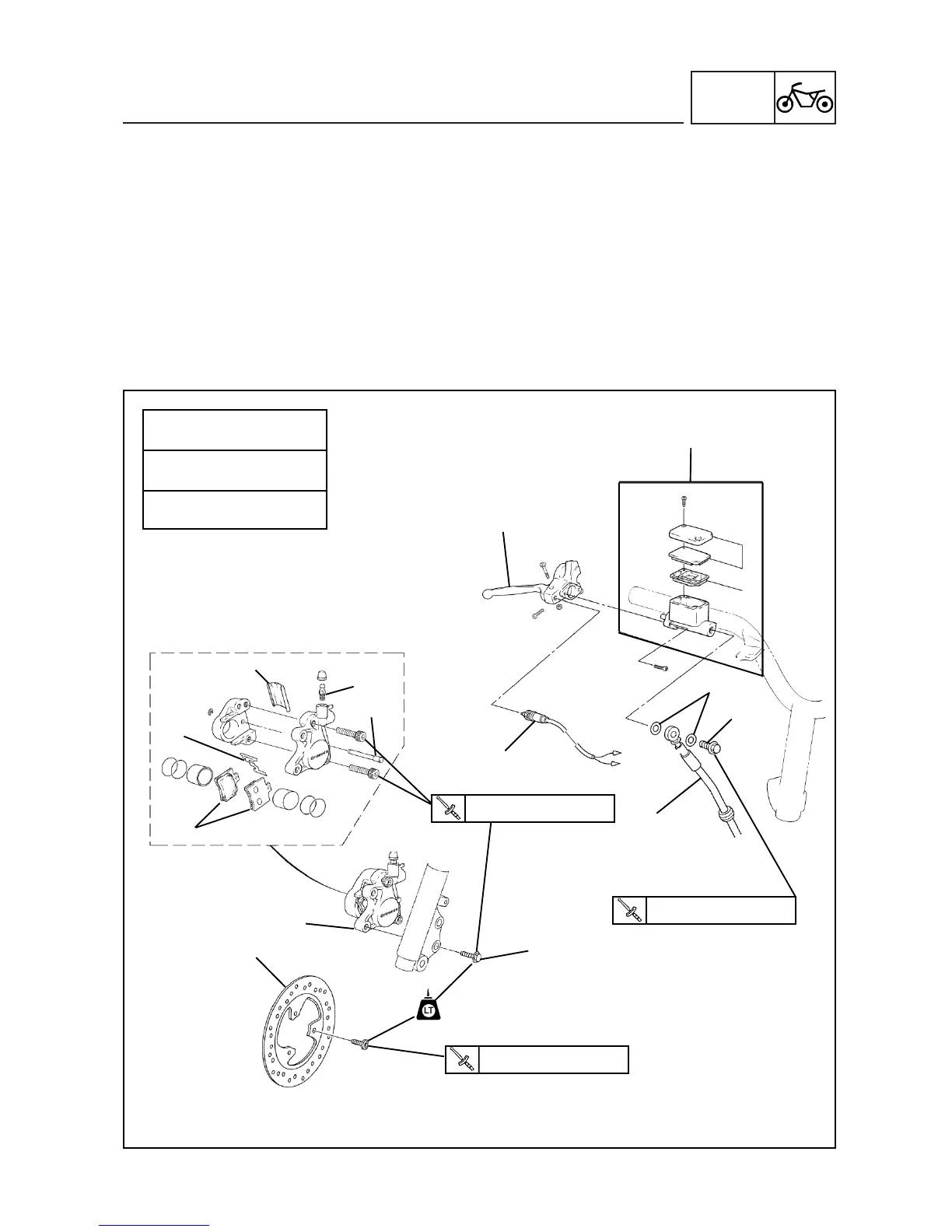

FRONT BRAKE
 Retaining bolt
 Air bleed screw
 Caliper assembly
 Pad spring
 Pad set
 Retaining pin
 Brake pad cover
 Brake disc
 Master cylinder cap
10 Diaphragm
11 Brake hose
12 Brake pump assy
13 Front brake lever
14 Copper washers
15 Union bolt
16 Brake light switch cable
Type of brake fluid:
DOT #4
Wear limit of brake pads:
0.5 mm
Wear limit of brake disc:
3.0 mm








15
13
14
11


10
16
12
23 Nm (2.3 m • kg)
23 Nm (2.3 m • kg)
23 Nm (2.3 m • kg)
