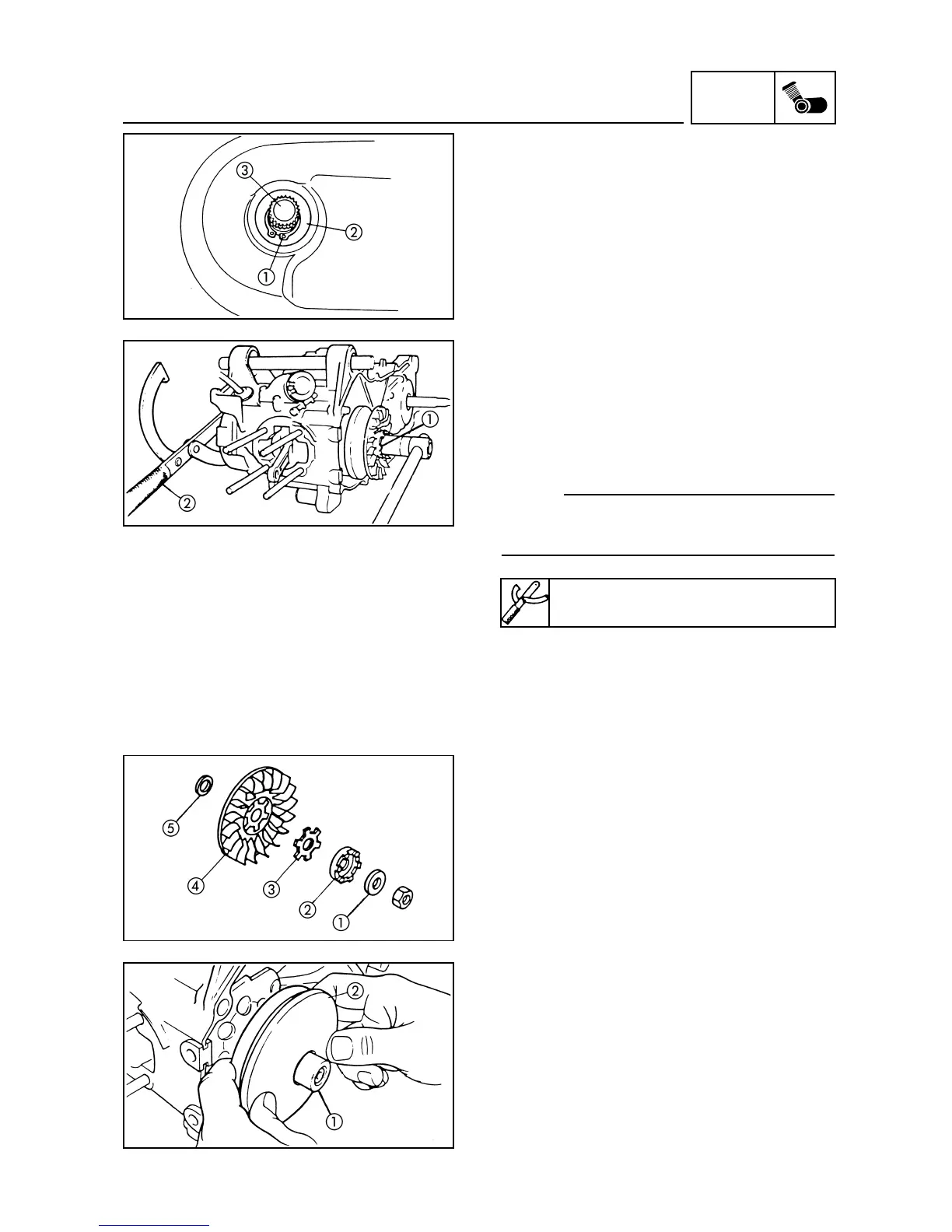

ENGINE DISASSEMBLY

4-5

6. Remove:

• circlip 

• flat washer 

• kick shaft 

EAS00317

REMOVING THE PRIMARY SHEAVE

1. Remove:

• fan (CS50 only)

• right cranckcase cover (CS50Z only)

2. Remove:

•nut  (primary sheave)

NOTE:

To loos nut (primary sheave), support the mag-

netic flywheel using Fly wheel holder .

3. Remove:

• conical spring washer 

• one-way clutch 

• special washer 

• fixed primary sheave 

• shim 

• v-belt

4. Remove:

• hub 

• primary sheave assembly 

Fly wheel holder

90890-01235
