ELEC
LIGHTING SYSTEM
8-22
EAS00780
LIGHTING SYSTEM

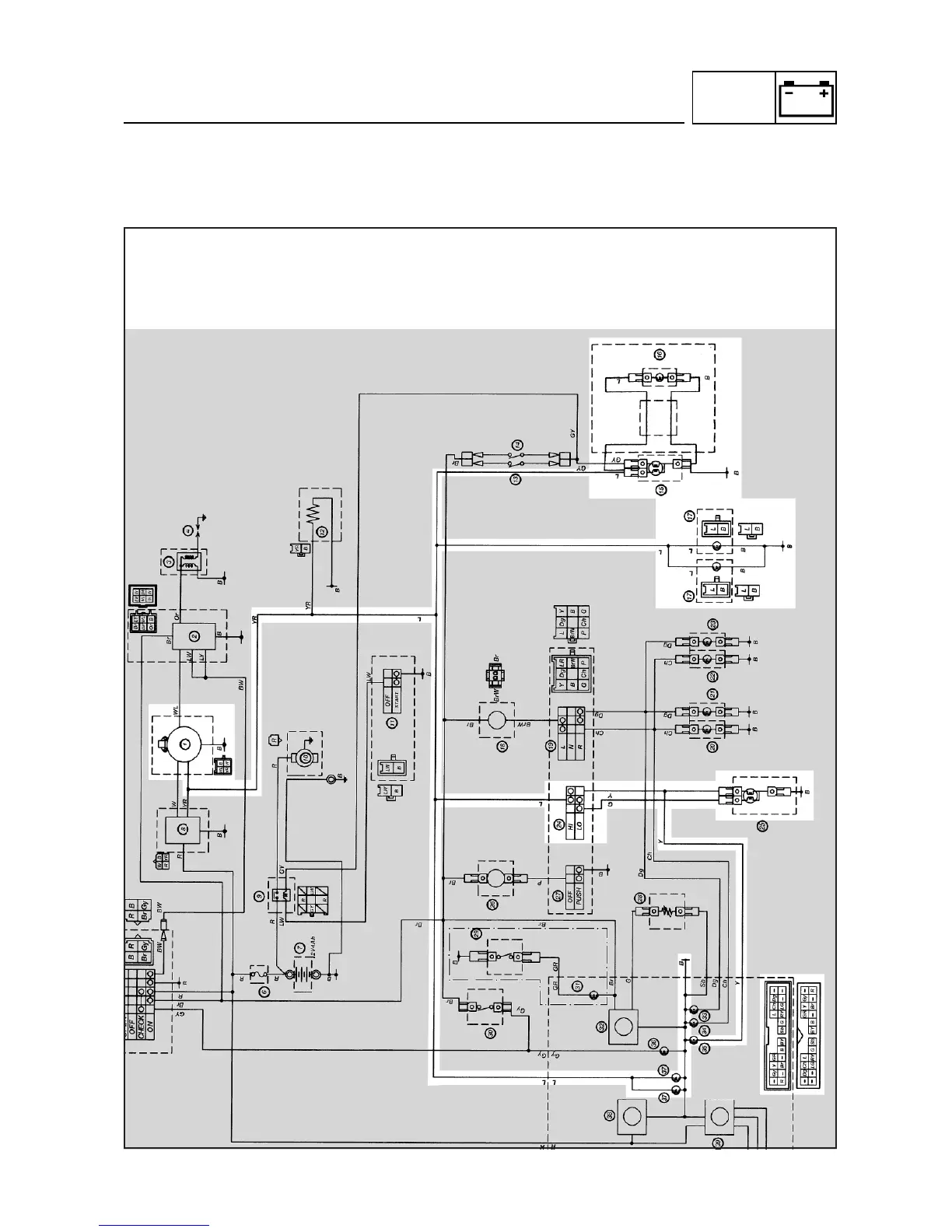

CIRCUIT DIAGRAM
DC-CDI magneto (lighting coil)
Tail/brake light
License light (for UK only)
Auxiliary light
24 Dimmer switch
25 Headlight
35 High beam indicator light
37 Meter light
