CHAS
REAR WHEEL
7-13
EAS00560

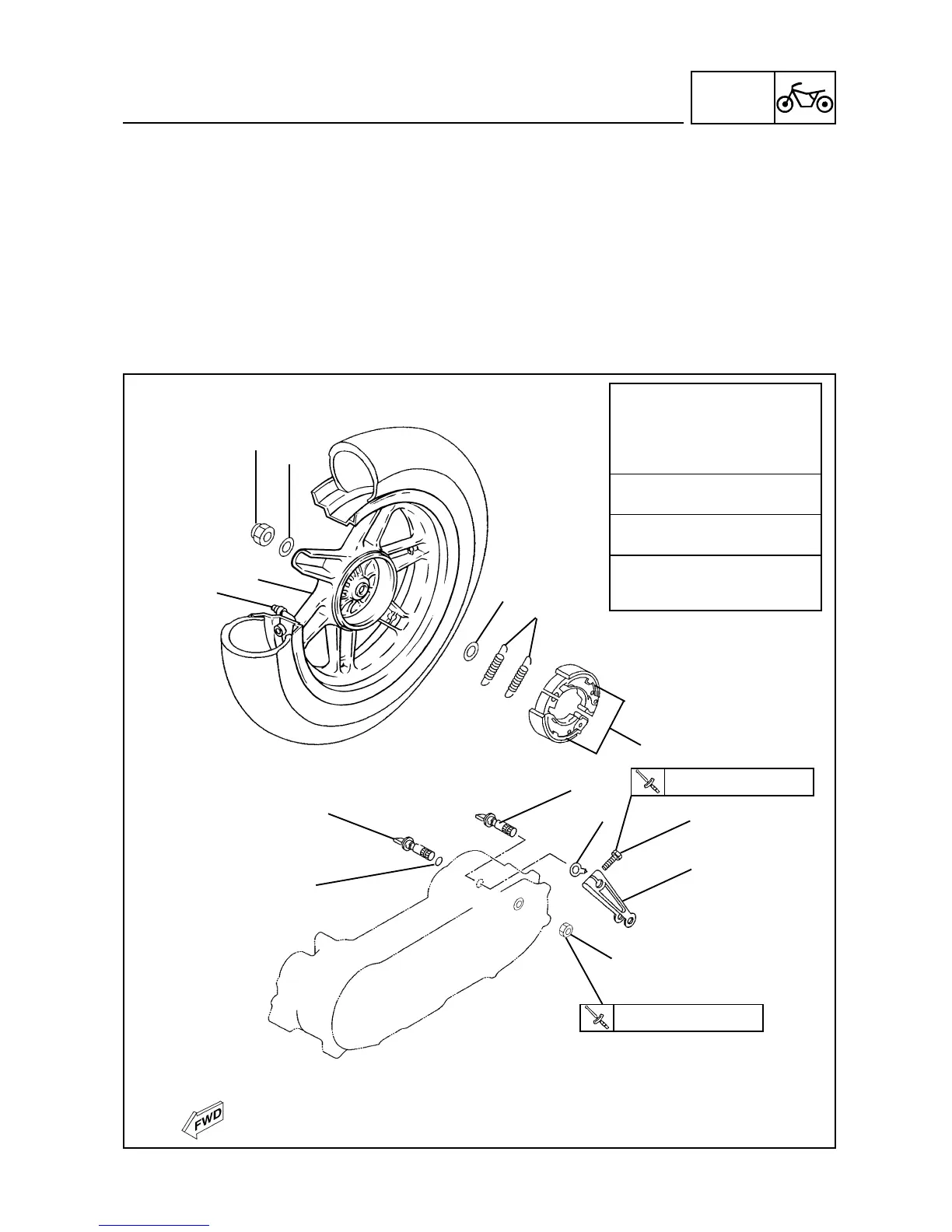

REAR WHEEL
Nut
Washer
Rear rim
Valve
Return springs
Brake shoes
Brake camshaft
Wear indicator
Bolt
10 Brake camshaft lever
11 Axle
12 O-ring
13 Nut
Tyre:
Size: 130/70-12
Type: 56 L
Size: 120/70 - 12
Type: 51 L (Spain)
Brake drum wear limit:
110.5 mm
Brake shoe wear limit:
2.0 mm
Wheel runout limit:
Vertical: 1.0 mm
Lateral: 1.0 mm
11
12
13
10
13 Nm (1.3 m • kg)
12 Nm (1.2 m • kg)
